Поз.
Артикул
Описание

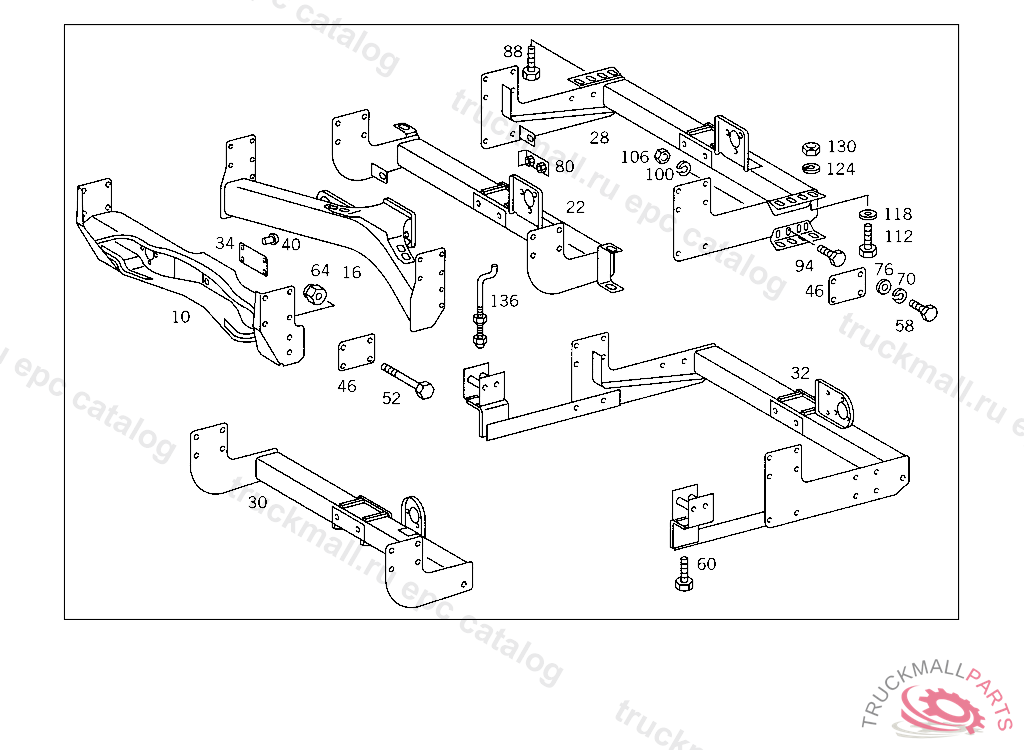

10
CROSS MEMBER , Replaced By: A6113101046
10
CROSS MEMBER ,101985, Replaced By: A6013101046, +001A6015840337
10
CROSS MEMBER ,101985, Replaced By: A6013101046, +001A6015840337
16
CROSS MEMBER (PARTS KIT),REAR CROSS MEMBER
16
CROSS STRUT , Replaced By: A6113101046
16
CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. P 003857, Replaced By: A6113101846
22
CROSS STRUT , Replaced By: A6113101146
22
CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 694398, Replaced By: A6113101746
22
CROSS MEMBER (REAR CROSS MEMBER)
28
CROSS MEMBER (REAR CROSS MEMBER)
28
CROSS MEMBER , Replaced By: A6113101246
30
CROSS STRUT , Replaced By: A6113101446
30
CROSS STRUT , Replaced By: A6113101346
30
CROSS MEMBER (REAR CROSS MEMBER)
30
CROSS MEMBER (REAR CROSS MEMBER)
32
CROSS MEMBER (REAR CROSS MEMBER)
32
CROSS MEMBER (REAR CROSS MEMBER)
32
CROSS STRUT , Replaced By: A6113101646
32
CROSS STRUT , Replaced By: A6113101546
34
PLATE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6015840337
34
PLATE
40
GROOVED NAIL
46
BASE PLATE REAR CROSS MEMBER TO FRAME
52
SCREW FENDER TO BRACKET, NOT USED
52
SCREW REAR EXHAUST PIPE TO CLAMP
58
SCREW BRACKET TO SIDE MEMBER
60
SCREW STRUT TO CROSS MEMBER M 10X25
64
NUT CROSS MEMBER TO SIDE MEMBERS
70
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
76
WASHER RADIATOR TO RUBBER MOUNTING
76
WASHER , Replaced By: N000125010532
80
PLATE AT REAR CROSS MENBER
88
SCREW BRACKET TO SIDE MEMBER
94
SCREW BRACKET TO SIDE MEMBER
94
SCREW , Replaced By: N304017010002
100
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
106
NUT
112
SCREW BRACKET TO SIDE MEMBER
112
SCREW STRUT TO CROSS MEMBER M 10X25
118
WASHER , Replaced By: N000125010532
118
WASHER RADIATOR TO RUBBER MOUNTING
124
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
130
NUT
136
CLAMPING SCREW SPARE WHEEL CARRIER
136
CLAMPING SCREW SPARE WHEEL CARRIER,694399
999
BRACKET
999
BRACKET
999
SUPPORT
999
ANGLE
999
EYE
999
COVER PLATE AT REAR CROSS MENBER
999
NUT RETAINER COVER PLATE TO REAR CROSS MEMBER
