Mercedes
›
BUS
›
O350 TOURISMO-SHD O 403-SHD EURO2
›
613.385
›
89 VEHICLE ACCESSORIES
›

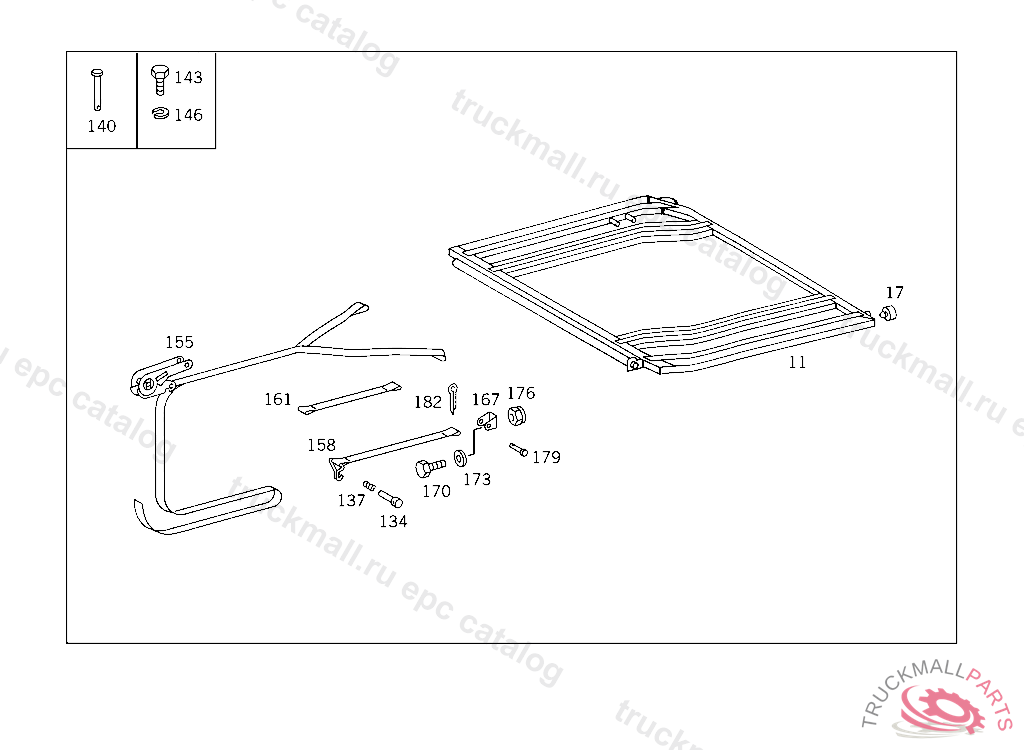

210 SPARE WHEEL CARRIER IL. 1
Mercedes A6138981114 - ДЕРЖАТЕЛЬ
O350 TOURISMO-SHD O 403-SHD EURO2 613.385
89 VEHICLE ACCESSORIES - 210 SPARE WHEEL CARRIER IL. 1
Поз.
Артикул
Описание
11
A6138900063
FRAME ,221445
17
A0009876440
GUMMIPUFFER. RUBBER BUFFER
134
A6138980015
PIN ,228476
137
A6139930101
SPRING ,228476
140
A6138980115
PIN ,227290
143
N910105006002
HEXAGON HEAD BOLT
146
N912006006002
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
155
A6138900471
STRAP , Replaced By: A6138900671
155
A6138900671
STRAP
155
A6138900071
STRAP ,227290
158
A6138900171
STRAP ,227290
161
A6138980371
STRAP
167
A6138981114
BRACKET STRAP,225722
170
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
170
N000933008147
SCREW , Replaced By: N304017008021
173
N000125008418
WASHER , Replaced By: N000125008443
176
N913001008004
NUT BEARING BODY TO SUPPORT
179
A6139910307
PIN
182
N000094002069
COTTER PIN PULL ROD
182
N000094002065
COTTER PIN ,227290
182
N000094002501
COTTER PIN BRACKET TO TELESCOPIC TUBE,K 142858
182
HXB3739900198
COTTER PIN , Replaced By: N000094003226
