Поз.
Артикул
Описание

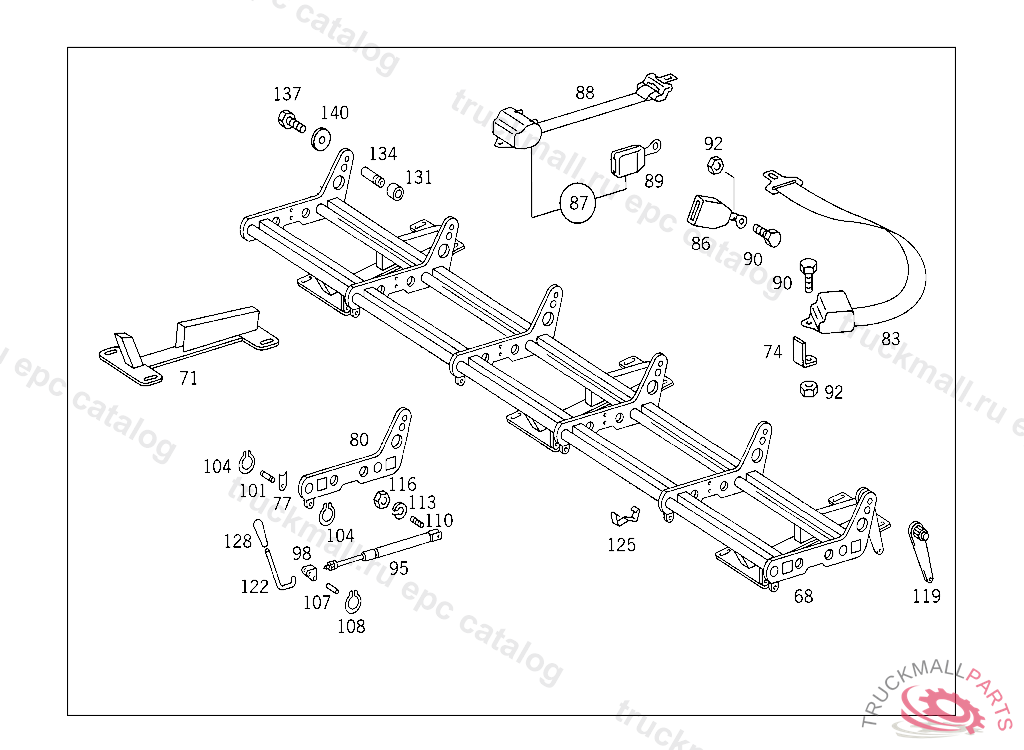

68
SEAT FRAME TRIPLE OCCUPANCY, AS OF PRODUCTION BREAKPOINT DATE 23.02.98INO.7C52I I I II
68
SEAT FRAME DOUBLE OCCUPANCY, AS OF PRODUCTION BREAKPOINT DATE 23.02.98INO.7C52I I I II
68
SEAT FRAME , UNTIL PRODUCTION BREAKPOINT DATE 22.02.98INO.7C52I I I II
68
SEAT FRAME DOUBLE OCCUPANCY, AS OF PRODUCTION BREAKPOINT DATE 23.02.98INO.7C52I I I II
68
SEAT FRAME TRIPLE OCCUPANCY, AS OF PRODUCTION BREAKPOINT DATE 23.02.98INO.7C52I I I II
68
SEAT FRAME , UNTIL PRODUCTION BREAKPOINT DATE 22.02.98INO.7C52I I I II
71
SEAT BASE LOWER PART DOUBLE OCCUPANCY, AS OF PRODUCTION BREAKPOINT DATE 23.02.98
74
ANGLE
77
BRACKET
80
BRACKET
83
SAFETY BELT
86
FASTENER
87
BELT WITH BELT LOCK
88
BELT
89
FASTENER
90
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
92
NUT BRACKET TO RETARDER
92
NUT BATTERY CABLE
95
GAS SPRING
98
BRACKET REAR SEAT ADJUSTMENT
101
PIN REAR SEAT ADJUSTMENT
104
LOCK RING
107
PIN REAR SEAT ADJUSTMENT
108
LOCK RING STEERING WHEEL HEIGHT ADJUSTMENT,4 188879
110
SCREW REAR SEAT ADJUSTMENT
113
LOCK WASHER RAIL TO BATTERY SUPPORT
116
NUT
119
LEVER REAR SEAT ADJUSTMENT, AS OF PRODUCTION BREAKPOINT DATE 23.02.98
119
LEVER REAR SEAT ADJUSTMENT, AS OF PRODUCTION BREAKPOINT DATE 23.02.98
122
LEVER REAR SEAT ADJUSTMENT
125
CLIP
128
HANDLE REAR SEAT ADJUSTMENT
131
NUT REAR SEAT ADJUSTMENT
134
PIN REAR SEAT ADJUSTMENT
137
SCREW REAR SEAT ADJUSTMENT
140
WASHER REAR SEAT ADJUSTMENT
