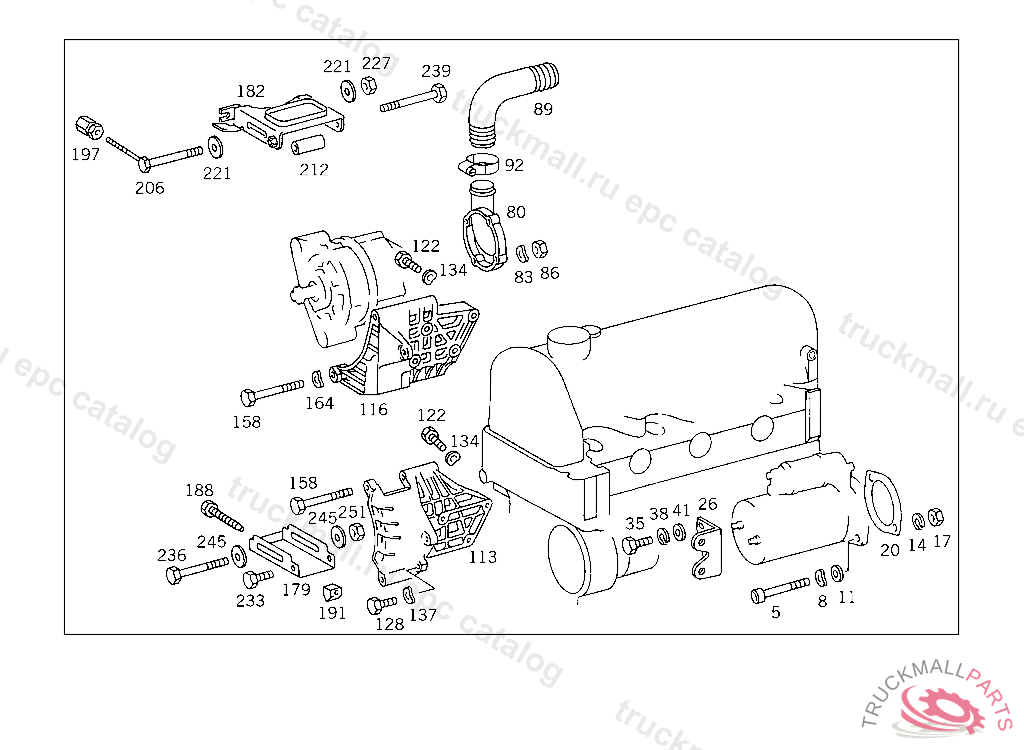

Поз.
Артикул
Описание
5
SCREW COVER TO TRANSMISSION CASE M 12X85
14
LOCK WASHER FITTING TO BRACKET
17
NUT STRAP TO SUPPORT,5 149419
26
ANGLE
35
SCREW COVER PLATE TO BRACKET
38
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
41
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
41
WASHER COMPRESSED AIR LINE TO BRACKET
113
SUPPORT ,910 10/50,20/60 050824
113
SUPPORT , 913 10/50,20/60 000267 913 12/52,22/62 000018 913 10/50,20/60 012326 913 12/52,22/62 000613, Replaced By: A6161550735, +001N000933008135, +001N000933010152
122
SCREW , Replaced By: N304017010040
122
SCREW STRUT TO CROSS MEMBER M 10X25
122
SCREW HAND PUMP TO BRACKET
122
SCREW CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS,5 129709
128
SCREW STRAP TO BRACKET
128
SCREW PIPE CLAMP
128
SCREW , Replaced By: N304017008021
134
SPRING WASHER STEERING COLUMN BRACKET TO CAB
137
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
137
SPRING WASHER , Replaced By: N000137008212
158
SCREW BRACKET TO REAR AXLE
164
SPRING WASHER STEERING COLUMN BRACKET TO CAB
179
BRACKET
188
SCREW
191
FOLLOWER , 910 10/50,20/60 046821 ALSO INSTALLED ON 045649-045653,046186-046207,046763,046777,046785-046799. 910 12/52,22/62 000461 ALSO INSTALLED ON 000449
227
NUT
227
NUT , Replaced By: N304032010002
233
SCREW , Replaced By: N304017010050
233
SCREW , Replaced By: N304017010055
236
SCREW REAR EXHAUST PIPE TO BRACKET M 10X80
245
WASHER , Replaced By: N009021010209
245
WASHER BRACKET TO COVERING
251
NUT
251
NUT , Replaced By: N304032010002
