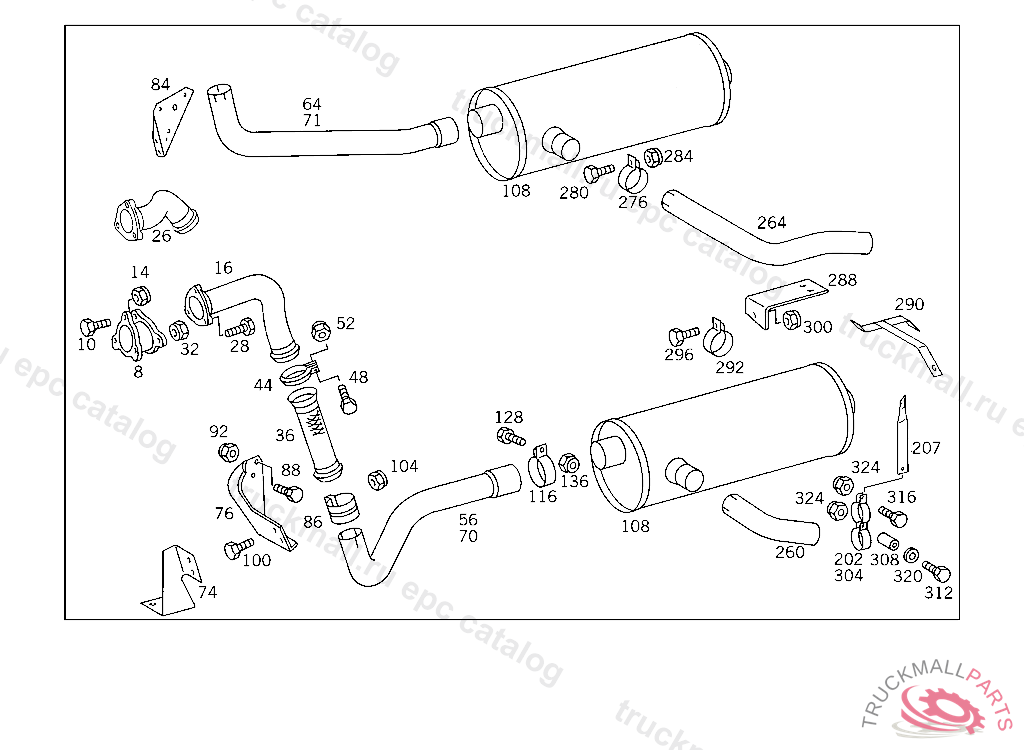

Поз.
Артикул
Описание
8
FLANGE INTERMEDIATE PIECE,FRONT
10
SCREW CONNECTING PIPE TO EXHAUST BRAKE
14
NUT END PIECE TO EXHAUST PIPE
14
NUT , Replaced By: A0009903150
16
CONNECTOR LEFT
16
INTERMEDIATE PIECE FROM EXHAUST MANIFOLD TO FLEXIBLE METAL TUBE,LEFT
16
CONNECTOR LEFT
16
CONNECTOR LEFT,5 129245
16
CONNECTOR LEFT
26
CONNECTOR RIGHT
28
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD 12X70
28
SCREW CONNECTOR TO EXHAUST MANIFOLD
28
SCREW , Replaced By: N000931012186
32
NUT END PIECE TO EXHAUST PIPE
32
NUT CONNECTOR TO EXHAUST MANIFOLD
36
FLEXIBLE METAL TUBE CONNECTOR
44
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
48
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
48
SCREW , Replaced By: N304017008040
48
SCREW , Replaced By: N304017008028
48
SCREW BRACKET TO SIDE MEMBER
52
NUT , Replaced By: N913004008001
52
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
EXHAUST PIPE FRONT,REAR LEFT PART
56
EXHAUST PIPE FROM FLEXIBLE METAL TUBE TO EXHAUST MUFFLER,LEFT
56
EXHAUST PIPE FRONT,REAR LEFT PART
56
EXHAUST PIPE FRONT,REAR LEFT PART
56
EXHAUST PIPE FRONT,REAR LEFT PART
56
EXHAUST PIPE FRONT,REAR LEFT PART
56
EXHAUST PIPE FRONT,REAR LEFT PART
64
EXHAUST PIPE FRONT,REAR RIGHT PART
64
EXHAUST PIPE FRONT,REAR RIGHT PART
64
EXHAUST PIPE FRONT,REAR RIGHT PART
64
EXHAUST PIPE FRONT,REAR RIGHT PART
64
EXHAUST PIPE FRONT,REAR RIGHT PART
64
EXHAUST PIPE FROM FLEXIBLE METAL TUBE TO EXHAUST MUFFLER,RIGHT
70
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, LEFT
71
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
74
BRACKET LEFT
76
BRACKET LEFT
76
BRACKET LEFT EXHAUST PIPE
76
BRACKET FRONT EXHAUST PIPE,LEFT
84
BRACKET RIGHT EXHAUST PIPE
84
BRACKET LEFT EXHAUST PIPE
86
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
88
SCREW REAR EXHAUST PIPE TO MUFFLER
88
SCREW , Replaced By: N308676014008
88
SCREW EXHAUST PIPE TO BRACKET
88
SCREW BRACKET TO SIDE MEMBER
88
SCREW , Replaced By: N304017010002
88
SCREW MOUNTING TO CONSOLE M 14X35
88
SCREW BRACKET TO TORSION BAR,4 9511495 554754
92
NUT STRAP TO BRACKET
92
NUT , Replaced By: N910113010002
92
NUT , Replaced By: N910113010000
92
HEXAGON NUT
100
SCREW BRACKET TO SIDE MEMBER
100
SCREW , Replaced By: N304017010002
104
NUT , Replaced By: N910113010000
104
NUT STRAP TO BRACKET
108
EXHAUST MUFFLER FRONT
108
EXHAUST MUFFLER
108
EXHAUST MUFFLER FRONT
108
EXHAUST MUFFLER
108
EXHAUST MUFFLER
108
EXHAUST MUFFLER
116
CLAMP , Replaced By: N071555090502
116
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
116
CLAMP , Replaced By: N071555094502
116
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
116
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
128
SCREW , Replaced By: N304017010002
128
SCREW BRACKET TO SIDE MEMBER
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
128
SCREW , Replaced By: N304017008027
128
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
136
NUT , Replaced By: N910113010000
136
NUT STRAP TO BRACKET
136
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
136
NUT , Replaced By: N913004008001
202
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
202
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
207
BRACKET REAR EXHAUST MUFFLER TO FRAME
260
END PIECE REAR LEFT
260
REAR EXHAUST PIPE SHORT
260
END PIECE REAR LEFT
260
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
264
REAR EXHAUST PIPE LONG
264
END PIECE REAR RIGHT
264
END PIECE REAR RIGHT
264
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
276
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
276
CLAMP , Replaced By: N071555100501
276
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
276
CLAMP , Replaced By: N071555090502
276
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
280
SCREW BRACKET TO SIDE MEMBER
280
SCREW , Replaced By: N304017008021
280
SCREW , Replaced By: N304017008027
280
SCREW PIPE CLAMP
280
SCREW , Replaced By: N304017008021
280
SCREW , Replaced By: N304017010002
280
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
284
NUT , Replaced By: N913004008001
284
NUT , Replaced By: N910113010000
284
NUT STRAP TO BRACKET
284
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
288
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
290
BRACKET TAIL PIPE
292
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
292
CLAMP , Replaced By: N071555090502
292
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
296
SCREW , Replaced By: N304017008027
296
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
300
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
300
NUT , Replaced By: N913004008001
304
CLAMP TAIL PIPE TO BRACKET
304
CLAMP EXHAUST PIPE TO BRACKET
308
SPACER TUBE , Replaced By: A3140720253
308
SPACER TUBE EXHAUST PIPE TO BRACKET
312
SCREW , Replaced By: N304017010002
312
SCREW BRACKET TO SIDE MEMBER
312
SCREW REAR EXHAUST PIPE TO CLAMP
312
SCREW , Replaced By: N304014010004
316
SCREW BRACKET TO SIDE MEMBER
316
SCREW , Replaced By: N304017010002
320
WASHER RADIATOR TO RUBBER MOUNTING
324
NUT STRAP TO BRACKET
324
NUT , Replaced By: N910113010000
999
BRACKET SUPPORT TO CROSS MEMBER
