Поз.
Артикул
Описание

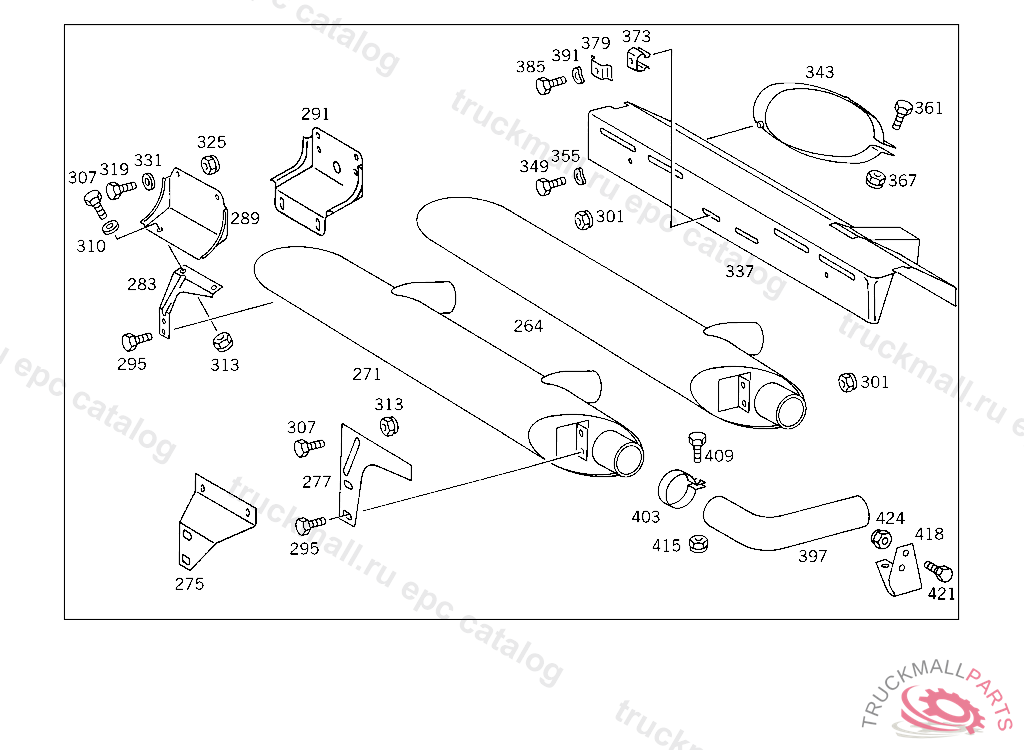

264
EXHAUST MUFFLER FRONT, TRANSVERSE,5 004844
264
EXHAUST MUFFLER FRONT, TRANSVERSE,5 004844
271
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
271
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
275
BRACKET EXHAUST MUFFLER,LEFT,5 381621
277
BRACKET EXHAUST MUFFLER,LEFT,5 381620
277
BRACKET EXHAUST MUFFLER,LEFT
283
BRACKET EXHAUST MUFFLER,RIGHT
283
BRACKET EXHAUST MUFFLER,RIGHT,5 381620
283
BRACKET EXHAUST MUFFLER,RIGHT,5 381620
289
BRACKET EXHAUST MUFFLER,5 381620
291
REINFORCEMENT ,5 381621
295
SCREW END PIECE TO EXHAUST PIPE M 10X25
301
NUT STRAP TO BRACKET
301
NUT , Replaced By: N910113010000
307
SCREW END PIECE TO EXHAUST PIPE M 10X25
310
WASHER RADIATOR TO RUBBER MOUNTING
310
WASHER , Replaced By: N000125010532
313
NUT , Replaced By: N910113010000
313
NUT STRAP TO BRACKET
319
SCREW END PIECE TO EXHAUST PIPE M 10X25
325
NUT STRAP TO BRACKET
325
NUT , Replaced By: N910113010000
331
WASHER RADIATOR TO RUBBER MOUNTING
331
WASHER , Replaced By: N000125010532
337
PROTECTIVE PLATE EXHAUST MUFFLER,5 004845
337
PROTECTIVE PLATE EXHAUST MUFFLER,5 004844
343
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
343
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
349
SCREW , Replaced By: A0029904212
349
BOLT. SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
355
SPRING WASHER , Replaced By: N000137008212
355
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
361
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
367
NUT , Replaced By: N910113010000
367
NUT STRAP TO BRACKET
373
NUT RETAINER , Replaced By: A0019906791
373
NUT RETAINER , Replaced By: A0009902291
373
NUT RETAINER LICENSE PLATE TO BRACKET
379
BRACKET LICENSE PLATE
385
SCREW , Replaced By: N304017006020
385
SCREW LICENSE PLATE TO BRACKET
391
SPRING WASHER LICENSE PLATE TO BRACKET
397
REAR EXHAUST PIPE TAIL PIPE
403
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
403
CLAMP , Replaced By: N071555090502
409
SCREW BRACKET TO SIDE MEMBER
409
SCREW , Replaced By: N304017010002
415
NUT , Replaced By: N910113010000
415
NUT STRAP TO BRACKET
418
BRACKET BRACKET TO EXHAUST PIPE BRACKET
421
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
424
NUT BRACKET TO SIDE MEMBER
424
NUT , Replaced By: N910113014001
999
INSULATING WASHER. INSULATION , Replaced By: A3094900037
999
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
