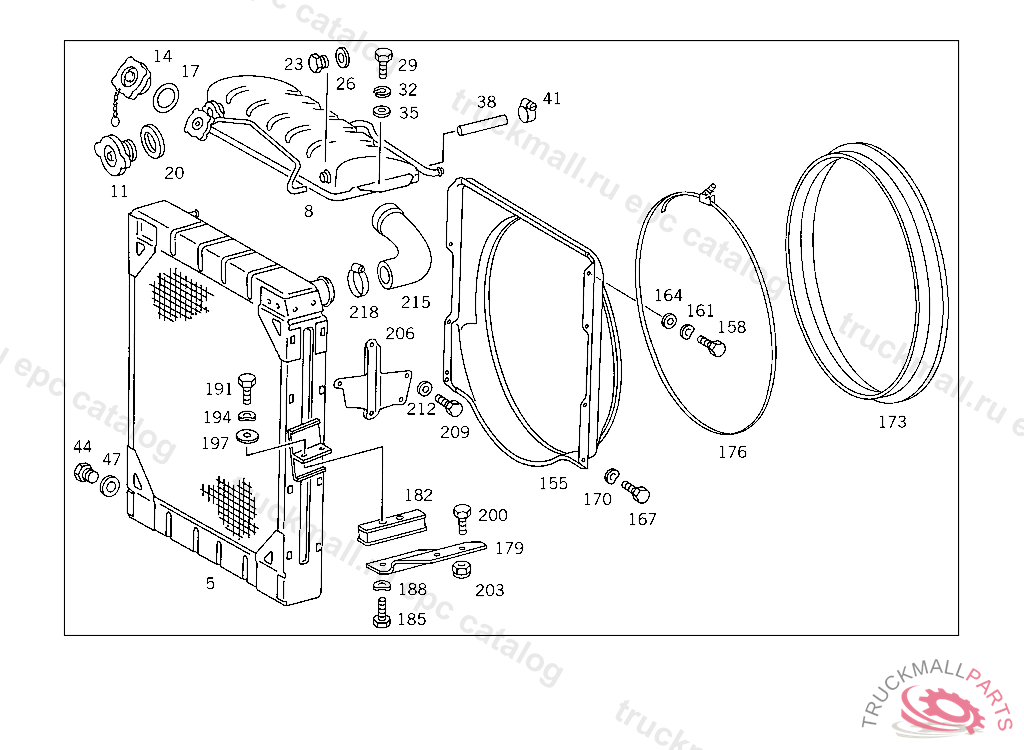

Поз.
Артикул
Описание
5
RADIATOR"BEHR", NOT USED
5
RADIATOR , Replaced By: A0015010801
8
TANK ON RADIATOR
11
RADIATOR CAP CENTRAL
11
RADIATOR CAP CENTRAL
14
RADIATOR CAP FILLER NECK
14
RADIATOR CAP FILLER NECK
17
GASKET O.D., 52 MM
20
GASKET O.D., 37 MM
23
SCREW PLUG WATER DRAIN
23
SCREW PLUG , Replaced By: N007604014101
26
SEAL RING FUEL LINE TO FEED PUMP
29
SCREW , Replaced By: N304017008016
29
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
WASHER , Replaced By: N000125008443
35
WASHER EXHAUST MUFFLER TO STRAP
38
HOSE OVERFLOW, EXPANSION TANK
41
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
41
CLAMP , Replaced By: N916017011001
41
CLAMP , Replaced By: N916017011000
44
SCREW PLUG WATER DRAIN
44
SCREW PLUG , Replaced By: N007604014101
47
SEAL RING FUEL LINE TO FEED PUMP
155
AIR BAFFLE RADIATOR, NOT USED
158
SCREW , Replaced By: N304017006016
158
SCREW PUMP TO BRACKET
161
SPRING WASHER LICENSE PLATE TO BRACKET
164
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
167
SCREW , Replaced By: N304017006018
167
SCREW COVER PLATE TO COVER PLATE M 6 X 12
167
SCREW COVER PLATE TO BRACKET
170
SPRING WASHER LICENSE PLATE TO BRACKET
173
BOOT FAN SHROUD TO FAN RING
176
CLAMP FAN SHROUD TO FAN RING
179
SUPPORT RADIATOR
182
RUBBER MOUNTING RADIATOR
185
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
188
SPRING WASHER STEERING COLUMN BRACKET TO CAB
191
SCREW END PIECE TO EXHAUST PIPE M 10X25
194
SPRING WASHER STEERING COLUMN BRACKET TO CAB
197
WASHER BRACKET TO COVERING
197
WASHER , Replaced By: N009021010209
200
SCREW BRACKET TO FRAME M 12X35
203
NUT SUPPORT TO SIDE MEMBER
206
BRACKET OIL DIPSTICK GUIDE TUBE
209
SCREW REDUCTION VALVE TO BRACKET
209
SCREW , Replaced By: A0079900801
212
WASHER , Replaced By: N000125008443
212
WASHER EXHAUST MUFFLER TO STRAP
215
HOSE FROM RADIATOR TO THERMOSTAT
218
CLAMP , Replaced By: N000000000674
218
CLAMP HOSE 70-90X13 MM
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
999
CLAMP25-40X13 MM
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
