Mercedes N000603008049 - Болт

1625,1628,2225,2228,2425 617.033

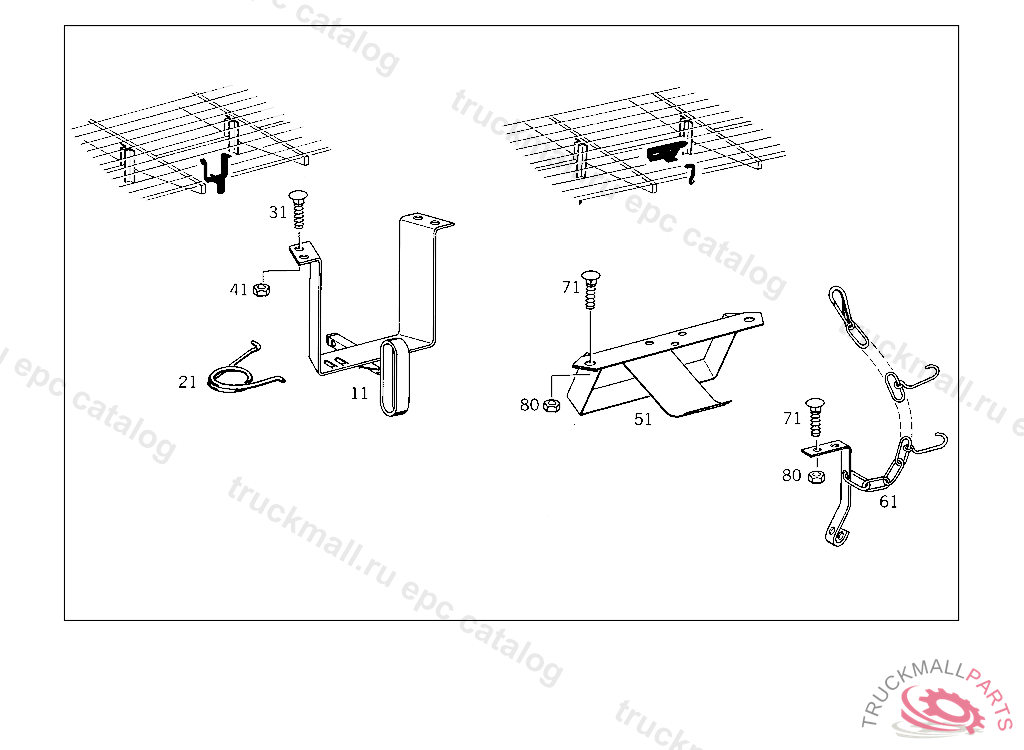

60 PLATFORM - 001 FASTENER FOR SECOND CHOCK

Поз.
Артикул
Описание
11
A3528900110
FIXTURE CHOCK,755918
21
A3528990035
SPRING CHOCK
31
N000603008049
SCREW BRACKET TO BODY M8X40
41
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
N913004008004
NUT , Replaced By: N913004008001
51
A3828900079
CLAMP CHOCK FIXTURE
61
A3355800390
BRACKET , Replaced By: A3355800290
61
A3355800290
BRACKET FOR CHOCK
71
N000603008050
SCREW FIXTURE TO PLATFORM M8X45
80
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
N913004008004
NUT , Replaced By: N913004008001
999
A3528900010
FIXTURE , Replaced By: A3528900110
999
A3528990010
BRACKET , Replaced By: A3528900110
999
A3828900614
BRACKET
999
N000603008047
SCREW REAR SIDE PANEL M8X50
999
N304032008006
NUT
