Главная
›
Mercedes
›
TRUCK
›
1625,1628,2225,2228,2425
›
617.033
›

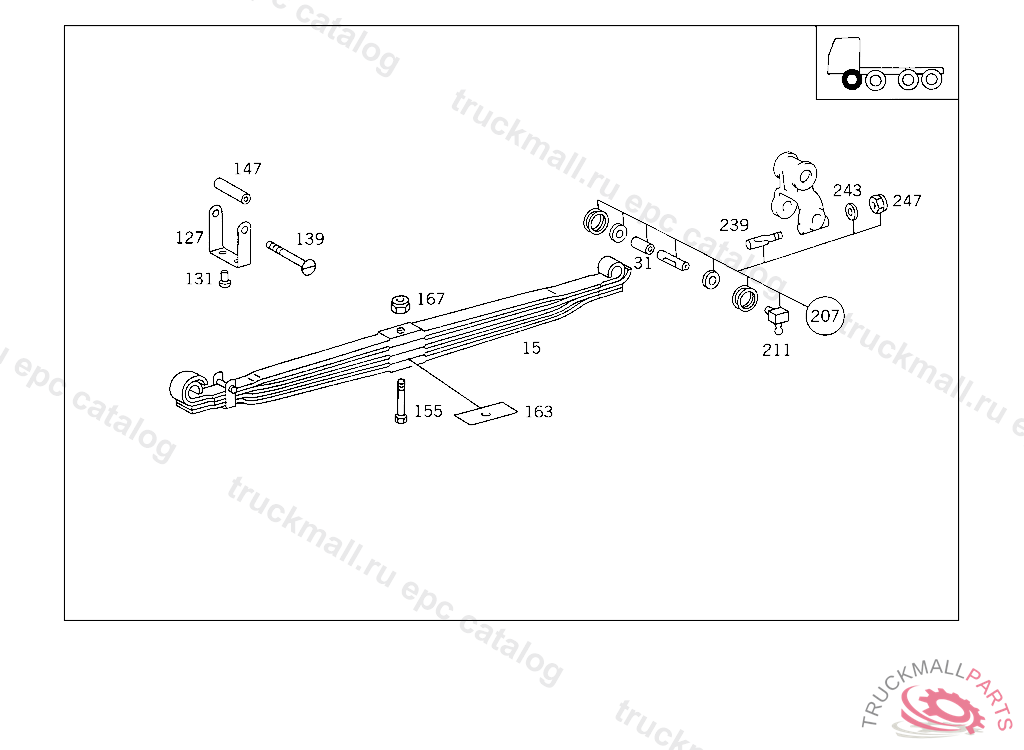

32 SPRINGS AND SUSPENSION
›
001 SPRING SUSPENSION USED FOR STEERED AXLE IL.3
Mercedes N000963012011 - Болт
1625,1628,2225,2228,2425 617.033
32 SPRINGS AND SUSPENSION - 001 SPRING SUSPENSION USED FOR STEERED AXLE IL.3
Поз.
Артикул
Описание
15
A6203200202
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: 4
31
A3043210150
BUSHING FRONT
31
A6203210050
BUSHING FRONT
127
A6203240533
SPRING CLAMP FRONT SPRING,5 193395
131
N910006008023
RIVET SPRING CLAMP TO SPRING LEAF,5 940410
139
N000963012011
SCREW FOR SPRING CLAMPS
147
A0003212753
SPACER TUBE SPRING CLAMP
155
N004626012112
SPRING BOLTM12X160, TO 682 320 73 02, 74 02
155
A6993210071
SCREW FRONT AXLE I
155
A3463215071
SCREW (SPRING BOLT)
155
A6203210071
SCREW (SPRING BOLT)
163
A3933210284
SHIM SPRING LEAF
167
N910113014000
NUT STEERING SUPPORT TO FRAME
167
N913004014005
NUT , Replaced By: N910113014000
207
A3953200165
SHACKLE PIN PARTS KIT
207
A3953200265
SHACKLE PIN PARTS KIT
211
N071412010300
GREASE NIPPLE
239
A3529900337
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
243
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
247
N913004010008
NUT , Replaced By: N910113010000
247
N910113010000
NUT STRAP TO BRACKET
