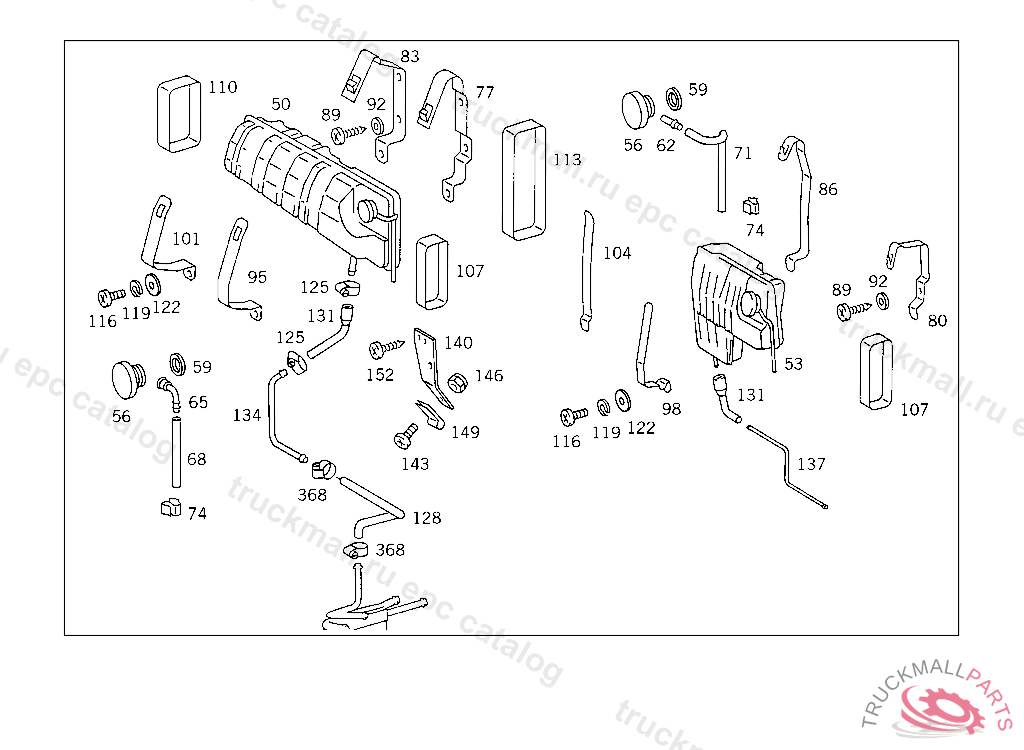

Поз.
Артикул
Описание
50
TANK ,4 939258, Replaced By: A6205000149, +001A6205012882
50
TANK (EXPANSION TANK)
53
TANK ,5 129372, Replaced By: A6205000349, +001A6205012882, +001N916017020000
53
TANK CAB,FRONT,5 129373
56
RADIATOR CAP
59
GASKET O.D., 37 MM
62
DRAIN PIPE
65
DRAIN PIPE EXPANSION TANK
68
HOSE OVERFLOW
68
HOSE , Replaced By: A0139978682
71
HOSE
71
HOSE , Replaced By: A0219977682
74
CLIP CABLE HARNESS TO ROOF RAIL
77
BRACKET EXPANSION TANK
80
BRACKET EXPANSION TANK,LEFT
83
BRACKET EXPANSION TANK
86
BRACKET EXPANSION TANK,RIGHT
89
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
92
WASHER COMPRESSED AIR LINE TO BRACKET
92
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
95
STRAP EXPANSION TANK TO BRACKET
98
STRAP EXPANSION TANK,LEFT
101
STRAP EXPANSION TANK TO BRACKET
104
STRAP EXPANSION TANK,RIGHT
107
SHIM EXPANSION TANK TO BRACKET
107
SHIM EXPANSION TANK,LEFT
110
SHIM EXPANSION TANK TO BRACKET
113
SHIM EXPANSION TANK,RIGHT
116
SCREW , Replaced By: N000000001146
116
SCREW CLAMP MOUNTING M 6X16
119
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
122
WASHER , Replaced By: N009021006208
122
WASHER COMPRESSED AIR LINE TO BRACKET
125
CLAMP , Replaced By: N916017011001
125
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
125
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
125
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
125
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
125
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
125
CLAMP , Replaced By: N000000000667
125
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
125
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
128
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
128
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
128
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
131
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
131
HOSE , Replaced By: A6205012882
131
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
134
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
137
BREATHER PIPE , Replaced By: A6205010725
137
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
140
BRACKET DE-AERATION LINE TO CAB
143
SCREW , Replaced By: N000000001146
143
SCREW CLAMP MOUNTING M 6X16
146
NUT , Replaced By: N913004006001
146
NUT PUMP TO BRACKET
149
CLAMP , Replaced By: A3604300143
149
CLAMP , Replaced By: N916016008200
149
CLAMP ,K 147121, Replaced By: N000000000319
149
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
152
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
368
CLAMP , Replaced By: N000000000667
368
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP25-40X13 MM
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
