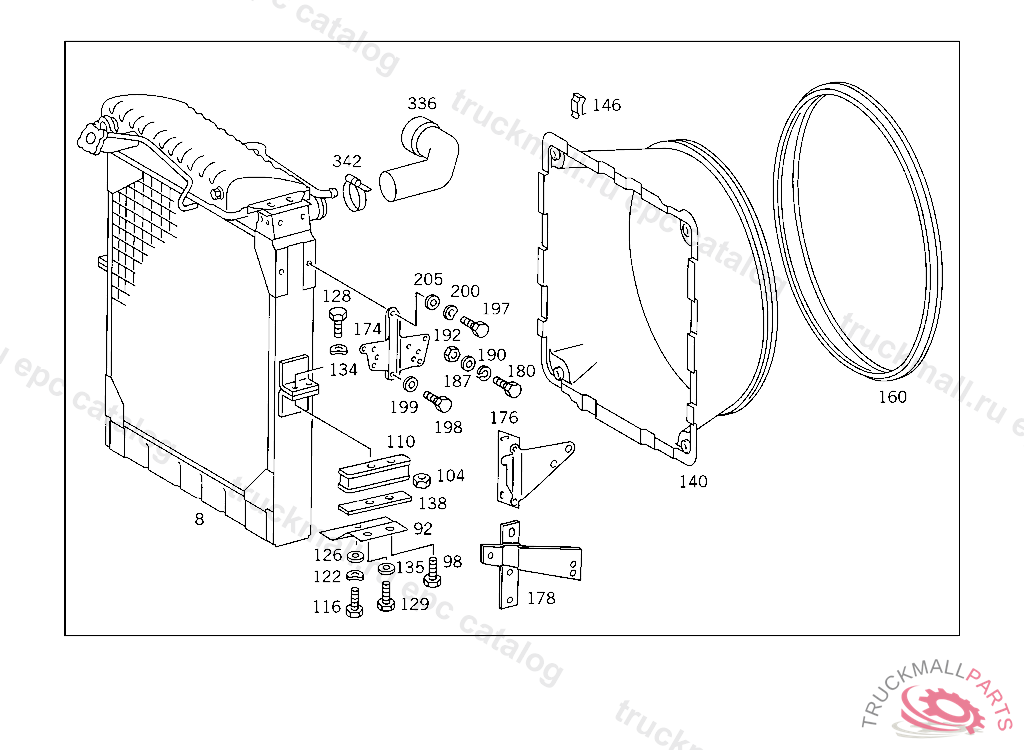

Поз.
Артикул
Описание
8
RADIATORBEHR,5 121637
92
SUPPORT RADIATOR
98
SCREW BRACKET TO FRAME M 12X35
104
NUT SUPPORT TO SIDE MEMBER
110
RUBBER MOUNTING RADIATOR
116
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
122
SPRING WASHER STEERING COLUMN BRACKET TO CAB
126
WASHER BRACKET TO COVERING
126
WASHER , Replaced By: N009021010209
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
134
SPRING WASHER STEERING COLUMN BRACKET TO CAB
135
WASHER RADIATOR TO RUBBER MOUNTING
135
WASHER , Replaced By: N000125010532
174
BRACKET OIL DIPSTICK GUIDE TUBE
180
SCREW REDUCTION VALVE TO BRACKET
180
SCREW , Replaced By: A0079900801
187
WASHER EXHAUST MUFFLER TO STRAP
187
WASHER , Replaced By: N000125008443
197
SCREW PUMP TO BRACKET
197
SCREW , Replaced By: N304017006016
200
SPRING WASHER LICENSE PLATE TO BRACKET
205
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
336
HOSE FROM RADIATOR TO THERMOSTAT
342
CLAMP HOSE 70-90X13 MM
342
CLAMP , Replaced By: N000000000674
999
BREATHER PIPE , Replaced By: A6205010725
