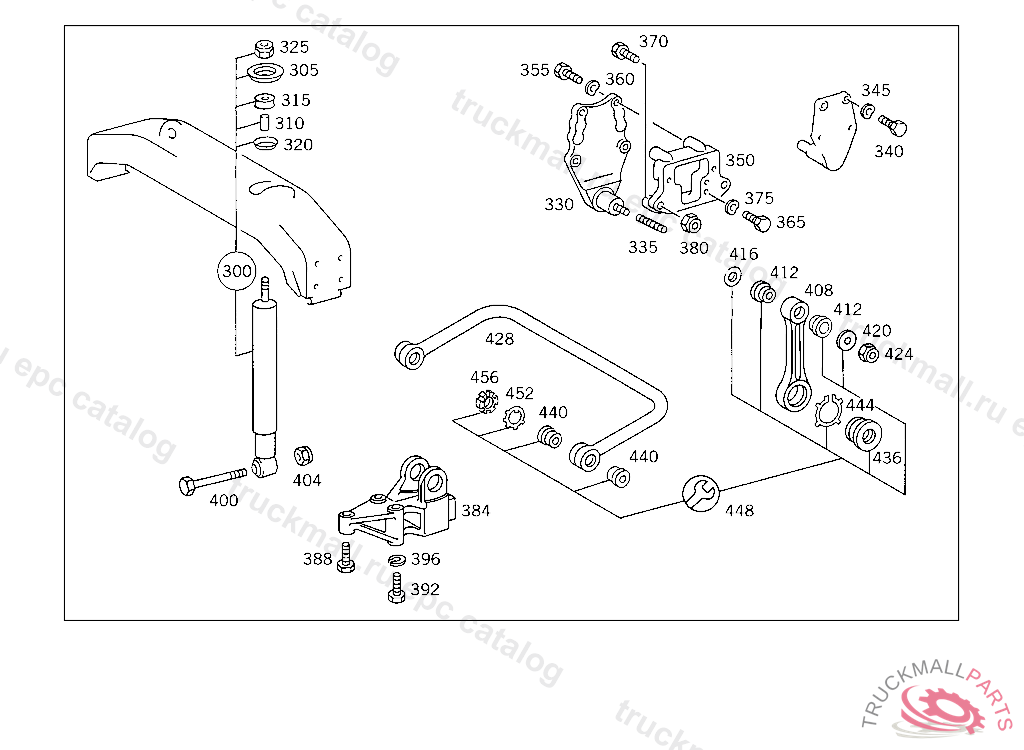

Поз.
Артикул
Описание
300
SHOCK ABSORBER (PARTS KIT)
300
SHOCK ABSORBER , Replaced By: A3853260100
305
RETAINER SHOCK ABSORBER,BOTTOM
305
RETAINER SHOCK ABSORBER,BOTTOM
310
SPACER TUBE
310
SPACER TUBE SHOCK ABSORBER TO CROSS MEMBER AND TO BEARING
310
SPACER TUBE
315
RUBBER BUFFER SHOCK ABSORBER,BOTTOM
315
RUBBER BUFFER SHOCK ABSORBER TO BEARING BRACKET
315
RUBBER MOUNTING004 326 01 00
320
RETAINER SHOCK ABSORBER,BOTTOM
325
NUT , Replaced By: N910113016001
325
NUT CONSOLE TO SUPPORT
325
NUT , Replaced By: N910113014001
325
NUT BRACKET TO SIDE MEMBER
330
CONSOLE ,5 910760, Replaced By: A6153260063, +001N000961016081
330
BEARING BRACKET SHACKLE TO FRAME,5 904660
335
STUD BOLT
340
SCREW , Replaced By: N308676016020
340
SCREW CONSOLE TO FRAME
340
SCREW BRACKET TO SUPPORT
340
SCREW BRACKET TO SUPPORT
345
SPRING WASHER BRACKET TO TIMING CASE
350
INTERMEDIATE PIECE SHOCK ABSORBER
355
SCREW , Replaced By: N308676016006
355
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
360
SPRING WASHER BRACKET TO TIMING CASE
365
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
370
SCREW , Replaced By: N308676016006
370
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
375
SPRING WASHER CAB FLOOR
380
NUT , Replaced By: N910113016001
380
NUT CONSOLE TO SUPPORT
384
BRACKET SHOCK ABSORBER AND STABILIZER,LEFT
384
BRACKET SHOCK ABSORBER AND STABILIZER,RIGHT
388
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
392
SCREW APPARATUS SUPPORT TO FRAME,REAR
392
SCREW AT CROSS MEMBER M 14X110
396
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
400
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
404
NUT CROSS MEMBER TO REINFORCEMENT
404
NUT , Replaced By: N913004020003
408
SHACKLE STABILIZER,5 904660
408
SHACKLE STABILIZER,5 904660
412
BUSHING SHACKLE TO BEARING BRACKET,5 904660
416
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
420
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
424
NUT COMBINATION CYLINDER TO BEARING BRACKET
424
NUT COMBINATION CYLINDER TO BEARING BRACKET
424
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
428
TORSION BAR ,5 904660
436
RUBBER MOUNTING SHACKLE TO TORSION BAR,5 904660
440
BUSHING TORSION BAR TO BEARING BRACKET,5 904660
444
LOCK RING SHACKLE TO TORSION BAR,5 904660
448
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 170415, Replaced By: A6173200228
452
LOCK PLATE TORSION BAR TO BEARING BRACKET,5 904660
456
NUT TORSION BAR TO BEARING BRACKET,5 904660
456
NUT TORSION BAR TO BEARING BRACKET,5 904660
999
JOINT BEARING TORSION BAR TO LINK,5 903513
999
JOINT BEARING TORSION BAR TO LINK,5 903513
999
SPACER WASHER AS REQUIRED 1.00 MM
999
SPACER WASHER AS REQUIRED 4.00 MM
