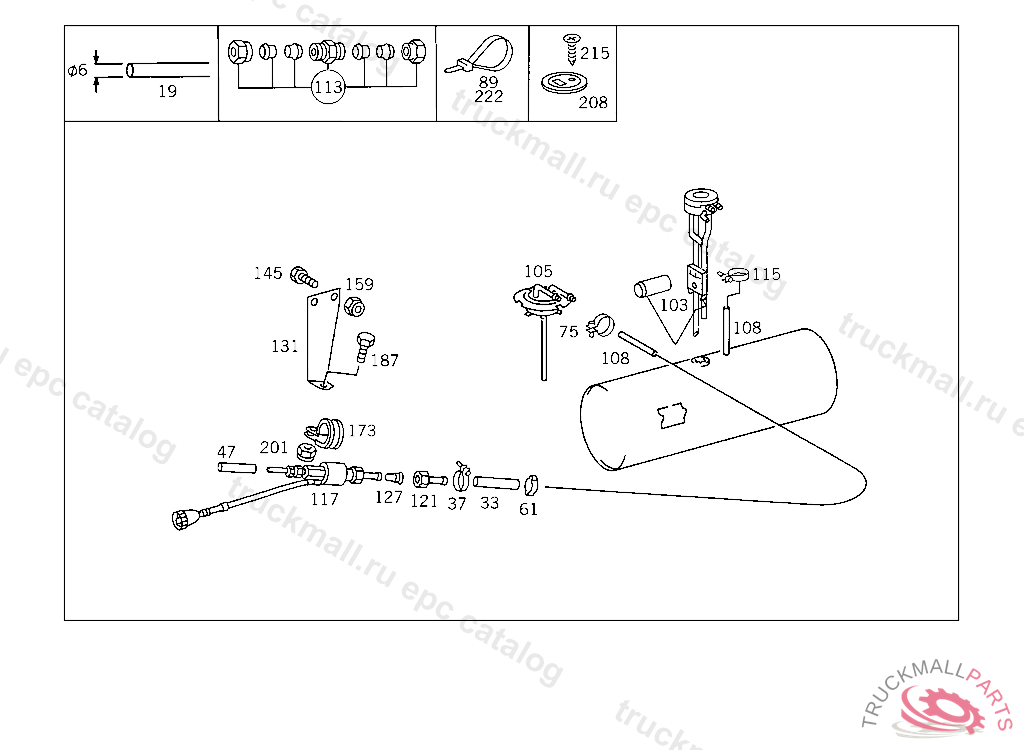

Поз.
Артикул
Описание
19
HOSE FUEL LINE, ORDER BY THE METER
19
HOSE FUEL LINE, ORDER BY THE METER
19
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
19
HOSE FUEL LINE, ORDER BY THE METER
33
HOSE LEAK LINE, ORDER BY THE METER
37
CLAMP LINE MOUNTING
47
INTERMEDIATE PIECE FUEL LINE,K 223528
47
INTERMEDIATE PIECE , Replaced By: A0004760125
61
LOOM TIE LINE MOUNTING
75
CLAMP LINE MOUNTING
75
CLAMP LINE MOUNTING
89
LOOM TIE LINE MOUNTING 280 MM
89
LOOM TIE LINE MOUNTING
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT , Replaced By: A0085428717
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT , Replaced By: A0085428517
103
SENDER UNIT , Replaced By: A0085428617
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT FUEL GAUGE
103
SENDER UNIT , Replaced By: A0085428617
103
SENDER UNIT , Replaced By: A0085428917
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT , Replaced By: A0085424017
105
COVERING FUEL TANK
108
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
108
PLASTIC PIPE RISING PIPE 4X6 MM
108
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
108
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
113
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
113
FITTING (PARTS KIT),LINE RUPTURE
113
FITTING , Replaced By: A0029905971
115
CLAMP RISING PIPE,5 4734955 909351
115
CLAMP LINE MOUNTING
115
LOOM TIE LINE MOUNTING
115
CLAMP RISING PIPE,5 4734955 909351
117
AUXILIARY PUMP FUEL 24 V
117
AUXILIARY PUMP FUEL-OIL PUMP,K 181478
117
AUXILIARY PUMP FUEL-OIL,K 181478, Replaced By: A0004706694
117
AUXILIARY PUMP , Replaced By: A0004704594, +002A0025450628, +001A0055454528, +001A0019906440, +001A0009904954, +001A0029970781
121
FITTING
127
STRAINER
131
BRACKET ADDITIONAL FUEL PUMP
131
BRACKET
131
BRACKET
131
BRACKET ADDITIONAL FUEL PUMP
131
BRACKET
145
SCREW BRACKET TO SIDE MEMBER
145
SCREW BRACKET TO CROSS CONNECTION STRUT
145
SCREW BRACKET TO CROSS CONNECTION STRUT
145
SCREW BRACKET TO SIDE MEMBER
145
SCREW , Replaced By: N304017010002
145
SCREW BRACKET TO CROSS CONNECTION STRUT
145
SCREW , Replaced By: N304017008034
159
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
159
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
159
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
159
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
159
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
159
NUT , Replaced By: N913004008001
173
CLAMP PUMP TO BRACKET
187
SCREW PUMP TO BRACKET
187
SCREW , Replaced By: N304017006016
201
NUT PUMP TO BRACKET
201
NUT , Replaced By: N913004006001
208
BRACKET LINE MOUNTING
215
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
222
LOOM TIE LINE MOUNTING 280 MM
