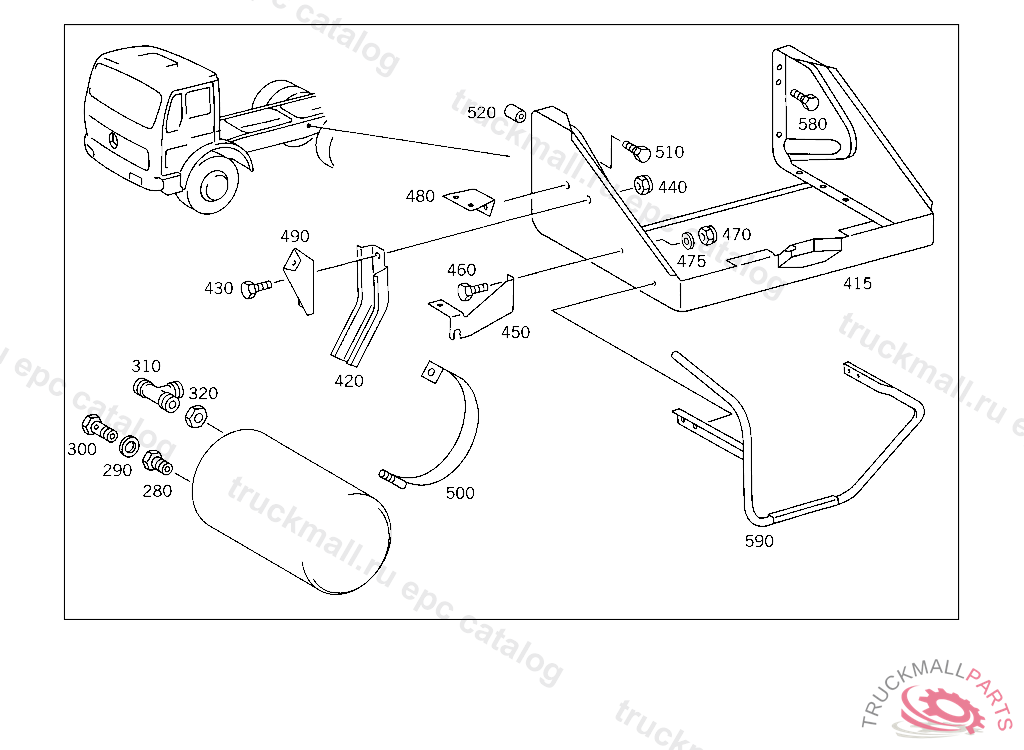

Поз.
Артикул
Описание
280
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
290
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
300
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
310
T-FITTING AIR RESERVOIR,CONNECTION "13",5 255904
320
NUT CHECK VALVE TO AIR RESERVOIR
415
BATTERY SUPPORT , TO BE ADAPTED DURING ASSEMBLY
420
SUPPORT AT CROSS MEMBER,5 317649
430
SCREW BRACKET TO EXHAUST PIPE BRACKET
430
SCREW , Replaced By: N304017008024
440
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
440
NUT , Replaced By: N913004008001
450
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE
450
BRACKET AT APPARATUS SUPPORT
450
BRACKET AT APPARATUS SUPPORT
450
BRACKET AIR RESERVOIR STRAP
450
BRACKET AIR RESERVOIR STRAP
450
BRACKET , Replaced By: A6484320340
460
SCREW PIPE CLAMP
460
SCREW , Replaced By: N304017008021
460
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
460
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
470
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
470
NUT , Replaced By: N913004008001
470
NUT STRAP TO BRACKET
470
NUT STRAP TO BRACKET
470
NUT , Replaced By: N910113010000
475
WASHER RADIATOR TO RUBBER MOUNTING
475
WASHER , Replaced By: N000125010532
480
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
480
BRACKET , Replaced By: A6205244040
490
BRACKET PRESSURE REGULATOR
500
STRAP AIR RESERVOIR TO BRACKET
510
SCREW STABILIZER TO BEARING
520
SPACER TUBE AIR INTAKE
520
SPACER TUBE , Replaced By: A3602420053
520
SPACER TUBE APPARATUS SUPPORT,FRONT
580
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
580
SCREW , Replaced By: N308676014020
590
SUPPORT ROCKER PANEL
999
CROSS FITTING AIR RESERVOIR,CONNECTION "13",5 255904
999
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
999
FITTING AIR RESERVOIR,CONNECTION: "11"
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A6739950001
999
BRACKET AIR RESERVOIR TO FRAME
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
STRAP AIR RESERVOIR
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
STRAP SERVICE BRAKE AIR RESERVOIR
999
STRAP AIR RESERVOIR TO BRACKET
999
STRAP ANTI-FREEZE DEVICE
999
SHIM FUEL TANK TO FRAME
999
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
BRACKET , Replaced By: A6554318840
