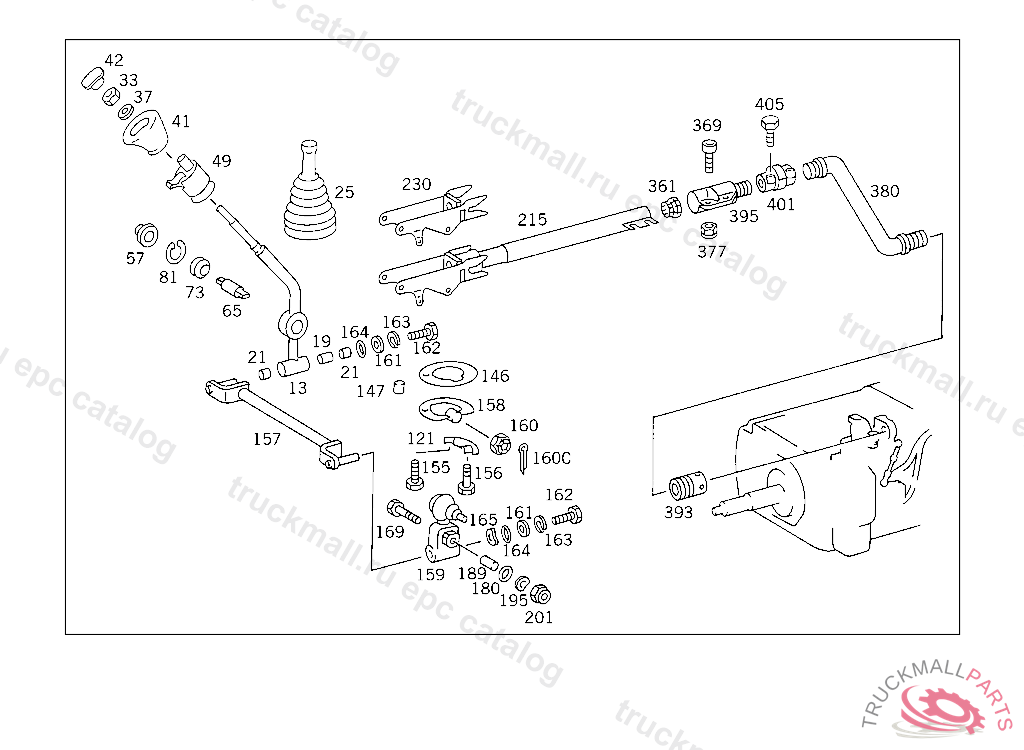

Поз.
Артикул
Описание
13
SHIFT LEVER
19
BUSHING
21
NEEDLE BEARING
21
NEEDLE BEARING
25
BOOT SHIFT LEVER
33
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
37
WASHER , Replaced By: N000125010532
37
WASHER RADIATOR TO RUBBER MOUNTING
41
HANDLE (SHIFT LEVER HANDLE)
41
KNOB , Replaced By: A6202600040
41
HANDLE , Replaced By: A6202680142, +001A6202680157
42
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
49
VALVE GEARSHIFT LEVER LOWER PART WABCO
49
VALVE SHIFT LEVER HERION
49
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 528951, Replaced By: A0012606357
49
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012605357
49
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012602457
49
VALVE , Replaced By: A0012602457
57
BOOT SHIFT LEVER BEARING
57
BOOT , Replaced By: A6202680196
65
PIN SHIFT LEVER BEARING,K040603
73
JOINT BEARING SHIFT LEVER BEARING,K040603
73
JOINT BEARING SHIFT LEVER BEARING,K040603
73
JOINT BEARING , Replaced By: A0019813931
81
LOCK RING SHIFT LEVER BEARING
121
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
121
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
146
RUBBER PAD SHIFTING TRANSFER,LEFT
156
SCREW , Replaced By: N304017008018
156
SCREW SUPPORT TO FENDER
157
ROD FRONT, TRANSVERSE
158
BRACKET SHIFTING TRANSFER,LEFT
159
JOINT SHIFTING TRANSFER,LEFT
160
NUT JOINT TO BRACKET
162
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
163
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
164
SEAL RING LEVER BEARING
165
SPRING WASHER LEVER TO BRACKET
169
SCREW , Replaced By: N000933010192
169
SCREW SHIFTING ROD TO SHIFT LEVER
180
SEAL RING LEVER BEARING
189
PIN SHIFTING ROD TO JOINT
195
SPRING WASHER LEVER TO BRACKET
201
NUT , Replaced By: N910113010000
201
NUT STRAP TO BRACKET
215
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 142857
230
ROD END HYDRAULIC RELEASE
361
WASHER BETWEEN THE SHIFTING RODS
369
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
377
NUT , Replaced By: N910113010000
377
NUT STRAP TO BRACKET
393
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
999
JOINT SHIFTING TRANSFER,K 131522
999
JOINT
999
SEAL RING , Replaced By: A0009940747
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK LINE CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
999
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
REPAIR KIT JOINT
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BUSHING PAWL TO ROD END,5 443048
999
BUSHING PAWL TO ROD END,5 443048
999
REPAIR KIT , Replaced By: A0309971748
999
SHEET METAL SCREW MODULE TO HOUSING
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
NUT
999
SHEET METAL SCREW , Replaced By: N000000000453
