Поз.
Артикул
Описание

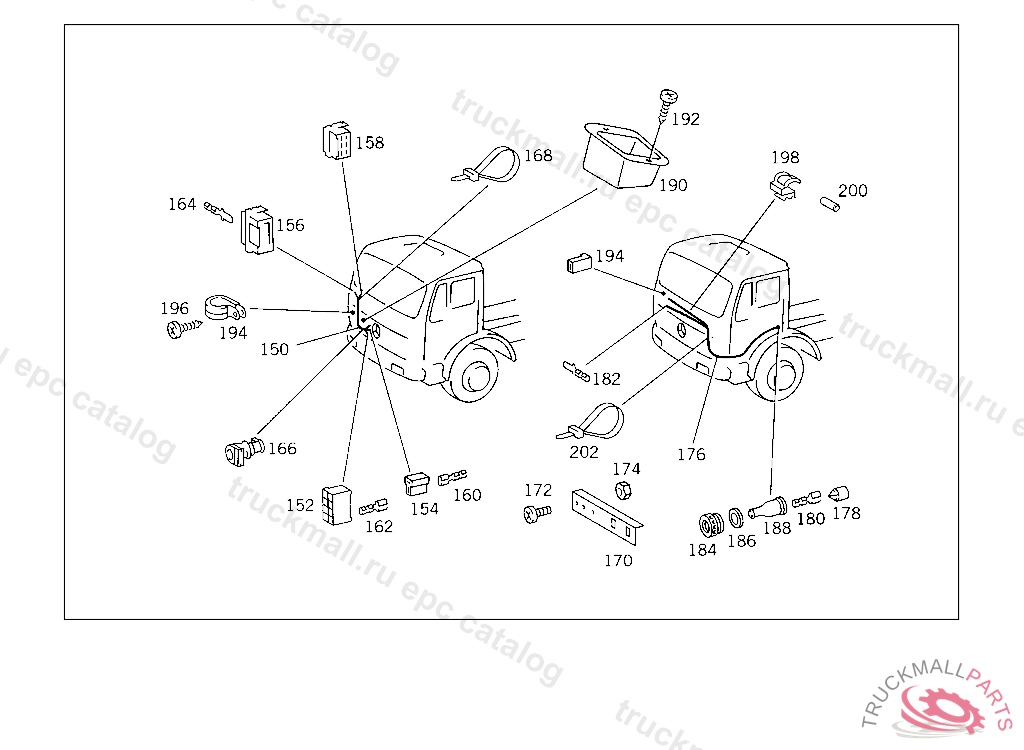

150
ELECTRIC CABLE FROM CAB PLUG CONNECTION TO HEATER CONNECTOR
150
ELECTRIC CABLE FROM CAB PLUG CONNECTION TO HEATER CONNECTOR
152
PIN BUSHING HOUSING 8-POLE
152
PIN BUSHING HOUSING 8-POLE
154
PIN BUSHING HOUSING BIPOLAR
154
PIN BUSHING HOUSING BIPOLAR
156
PLUG HOUSING 8-POLE
156
PLUG HOUSING 8-POLE
158
PIN BUSHING HOUSING 6-POLE
158
PIN BUSHING HOUSING 6-POLE
160
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
160
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
162
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
162
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
162
PIN BUSHING , Replaced By: A0075458226
164
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
164
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
166
GROMMET
166
GROMMET
168
LOOM TIE LINE MOUNTING 280 MM
170
BRACKET HEATER PLUG CONNECTION
172
SCREW CLAMP MOUNTING M 6X16
172
SCREW , Replaced By: N000000001146
174
NUT PUMP TO BRACKET
174
NUT , Replaced By: N913004006001
176
ELECTRIC CABLE FROM CAB PLUG CONNECTION TO SOLENOID VALVE
176
ELECTRIC CABLE FROM CAB PLUG CONNECTION TO SOLENOID VALVE
176
ELECTRIC CABLE , Replaced By: A6215402636
178
PIN BUSHING HOUSING 4-POLE
180
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
180
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
182
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
182
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
184
FITTING
186
WASHER
188
GROMMET
190
COVERING PASSAGE OF ELECTRIC CABLE,RIGHT
190
COVERING PASSAGE OF ELECTRIC CABLE,RIGHT
190
COVERING PASSAGE OF ELECTRIC CABLE,LEFT
190
COVERING PASSAGE OF ELECTRIC CABLE,LEFT
192
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
192
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
194
CLAMP LINE MOUNTING
194
CLAMP LINE MOUNTING
196
SHEET METAL SCREW ELECTRIC CABLE TO FIRE WALL
198
CLIP CABLE HARNESS TO ROOF RAIL
198
CLIP CABLE HARNESS TO ROOF RAIL
200
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
200
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
202
LOOM TIE LINE MOUNTING
202
LOOM TIE LINE MOUNTING 280 MM
999
PIN BUSHING , Replaced By: A0005453726
999
PIN BUSHING HOUSING UNIPOLAR
999
GROMMET BATTERY CASE
