Главная
›
Mercedes
›
TRUCK
›
2233,2833,3033 B/K, 3333 B/K
›
623.048
›
42 BRAKES
›
001 BRAKES IL. 1
Mercedes N009021005202 - ШАЙБА

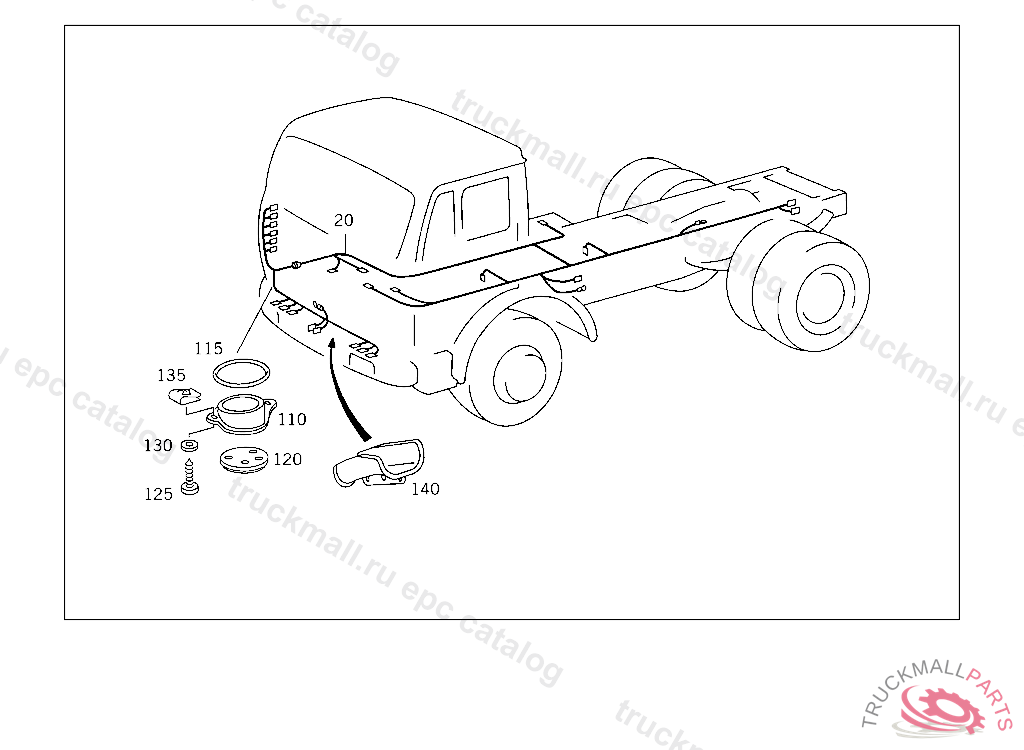

2233,2833,3033 B/K, 3333 B/K 623.048
42 BRAKES - 001 BRAKES IL. 1
Поз.
Артикул
Описание
20
A6235409508
CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
110
A6205460443
BRACKET CABLE HARNESS MOUNTING
115
A6204290084
SEAL RING TO SEAL CABLE HARNESS OPENING IN CAB
120
A6205460086
GASKET BRACKET
125
N007981004336
SHEET METAL SCREW ELECTRIC CABLE THRU CAB FLOOR
130
N009021005205
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
130
N009021005202
WASHER , Replaced By: N009021005205
135
A0009946445
LOCK ELECTRIC CABLE THRU CAB FLOOR
140
A6204202986
BRACKET RIGHT
999
A3465460030
INSULATING HOSE350 MM, TO BE ADAPTED DURING ASSEMBLY
