Поз.
Артикул
Описание

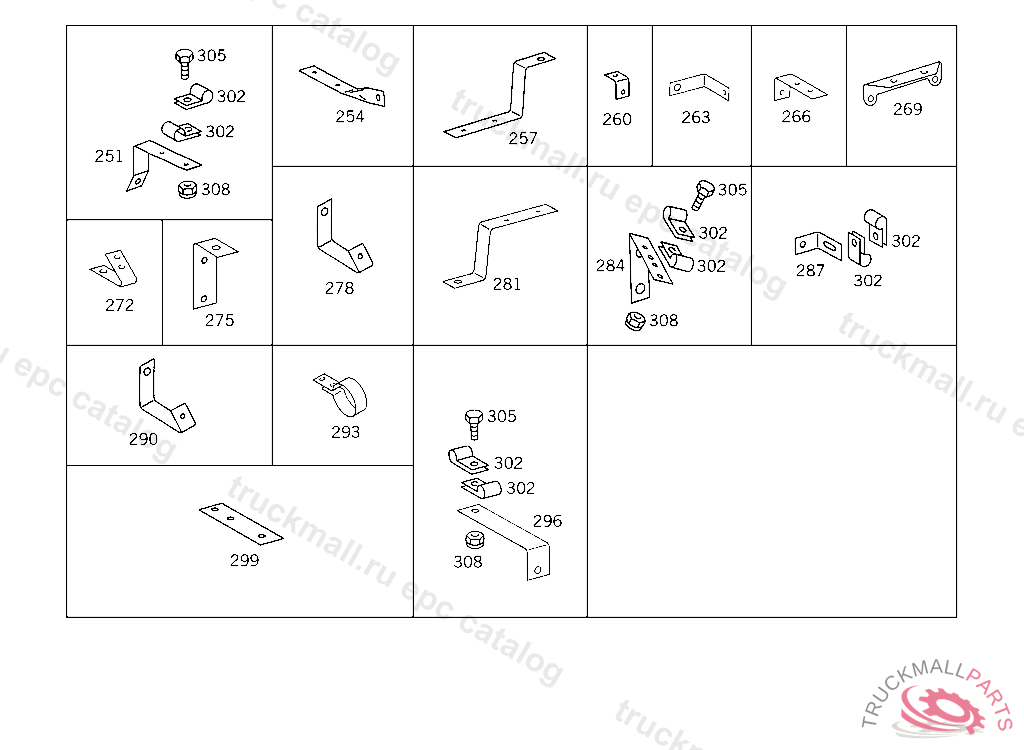

251
BRACKET OIL TANK
254
BRACKET AT ENGINE,REAR
254
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
257
BRACKET FUEL LINES TO TRANSMISSION
260
ANGLE LINE MOUNTING
263
BRACKET FUEL LINE TO BELL HOUSING
266
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
269
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
272
BRACKET DELIVERY LINE TO ENGINE
275
BRACKET COOLING WATER LINE
278
BRACKET DELIVERY LINE TO FRAME
278
BRACKET OIL LINE TO ENGINE
281
SUPPORT DELIVERY AND SUCTION LINES TO ENGINE, TOP
284
BRACKET CABLE TO TRANSMISSION
284
BRACKET OIL LINE MOUNTING
287
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
290
BRACKET LINE MOUNTING
293
BRACKET DELIVERY LINE TO POWER CYLINDER
296
BRACKET REAR EXHAUST PIPE,5 193595
299
SHIM SUPPORT TO FRAME 240X40X5 MM
302
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
302
CLAMP DELIVERY AND SUCTION LINES TO STEERING
302
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
302
CLAMP DELIVERY AND SUCTION LINES TO FRAME
302
CLAMP LINE MOUNTING
305
SCREW LINE MOUNTING M 6X45
305
SCREW CAB FLOOR COVERING M 6X25
305
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
305
SCREW COVER PLATE TO BRACKET
305
SCREW LICENSE PLATE TO BRACKET
305
SCREW , Replaced By: N304017006020
308
NUT , Replaced By: N913004006001
308
NUT PUMP TO BRACKET
999
BRACKET OIL TANK
