Главная
›
Mercedes
›
TRUCK
›
3238,3244,3250,3253
›
625.130
›

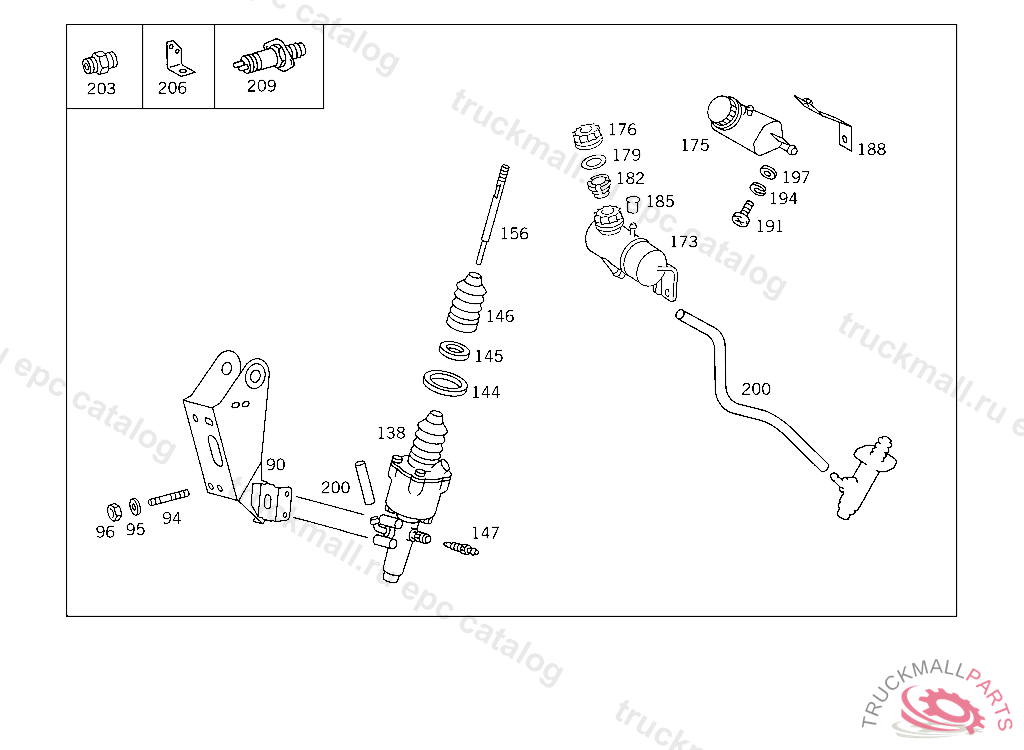

29 PEDAL ASSEMBLY
›
001 CLUTCH PEDAL IL.3
Mercedes N009021006103 - SCHEIBE DIN 9021-6,4
3238,3244,3250,3253 625.130
29 PEDAL ASSEMBLY - 001 CLUTCH PEDAL IL.3
Поз.
Артикул
Описание
90
A6202900019
BEARING BRACKET CLUTCH PEDAL
94
N000939008136
STUD BOLT BRACKET TO CROSS MEMBER
95
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
96
A0009906350
NUT BRACKET TO BRACKET
138
A0002959506
MASTER CYLINDER CLUTCH
144
A0019979940
SEAL RING
144
A0019979840
SEAL RING
145
A0049970040
SEAL RING
146
A0002953983
BOOT
147
A3075530107
VALVE CLUTCH SLAVE CYLINDER
156
A3812950333
ROD MASTER CYLINDER TO PEDAL ASSEMBLY
173
A6552950015
RESERVOIR EXPANSION TANK
175
A0002951715
RESERVOIR RESERVOIR
176
A0002950116
LOCKING CAP
179
A0009972940
SEAL RING
182
A0004314334
STRAINER
185
A0009885435
CAP RESERVOIR DE-AERATION
188
A3872900433
BRACKET RESERVOIR
191
N000000001147
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
194
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
197
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
197
N009021006103
WASHER , Replaced By: N009021006208
200
A0009978952
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
203
A3969971172
FITTING CLUTCH MASTER CYLINDER
206
A6452930041
ANGLE AT CLUTCH PEDAL UNIT
209
A6555400017
SENDER UNIT CLUTCH OPERATION EPS, TO BE ADAPTED DURING ASSEMBLY
