Mercedes A6995001116 -

3238,3244,3250,3253 625.130

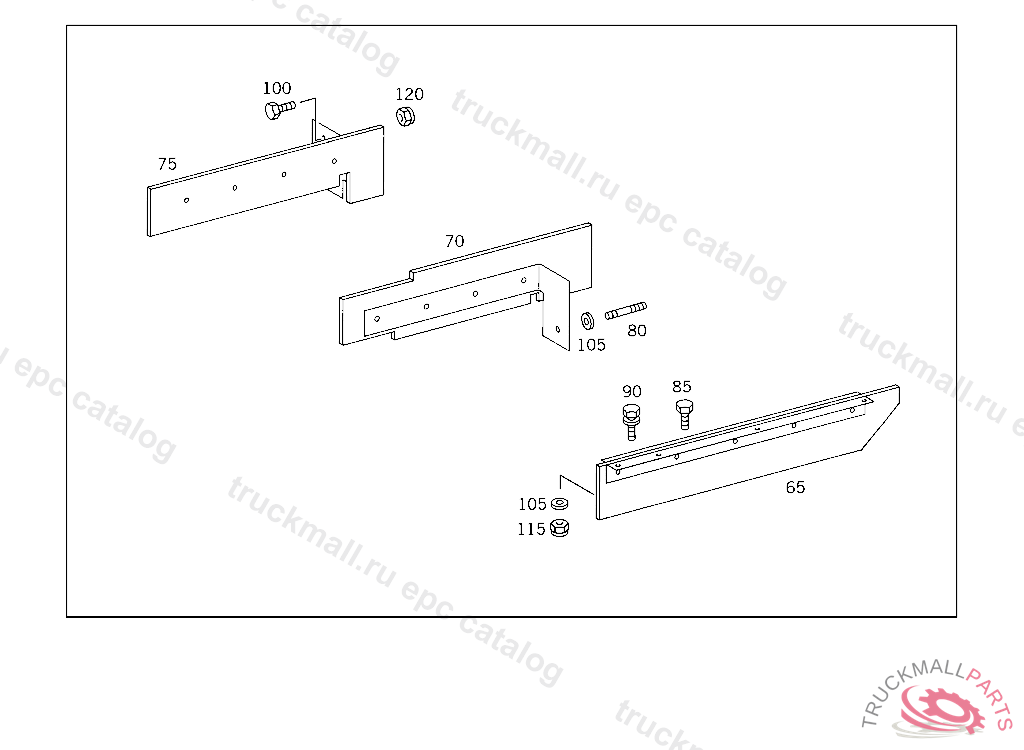

50 RADIATOR - 001 RADIATOR CIRCULATING AIR COMPARTMENTALIZATION IL.3

Поз.
Артикул
Описание
65
A6995000416
AIR BAFFLE LEFT WHEEL ARCH
70
A6995001016
AIR BAFFLE FRAME,LEFT
75
A6995001116
AIR BAFFLE FRAME,RIGHT
80
N000835006097
STUD COVERING TO AIR DUCT
85
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
85
A6739900032
SCREW DE-AERATION LINE TO RADIATOR
90
N914146006002
SCREW , Replaced By: A0029908512
90
A0029908512
SCREW COVERING TO AIR DUCT
100
N000961014154
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
105
N009021006103
WASHER , Replaced By: N009021006208
105
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
115
N913004006001
NUT PUMP TO BRACKET
115
N913004006002
NUT , Replaced By: N913004006001
120
N913004014002
NUT , Replaced By: N910113014001
120
N910113014001
NUT BRACKET TO SIDE MEMBER
999
A6995000616
AIR BAFFLE RADIATOR,LEFT
999
A6995001316
AIR BAFFLE RIGHT WHEEL ARCH
999
A6995001416
AIR BAFFLE INSIDE
