Mercedes N000988010016 - ШАЙБА

CITARO 12M 3-TUERER 628.052

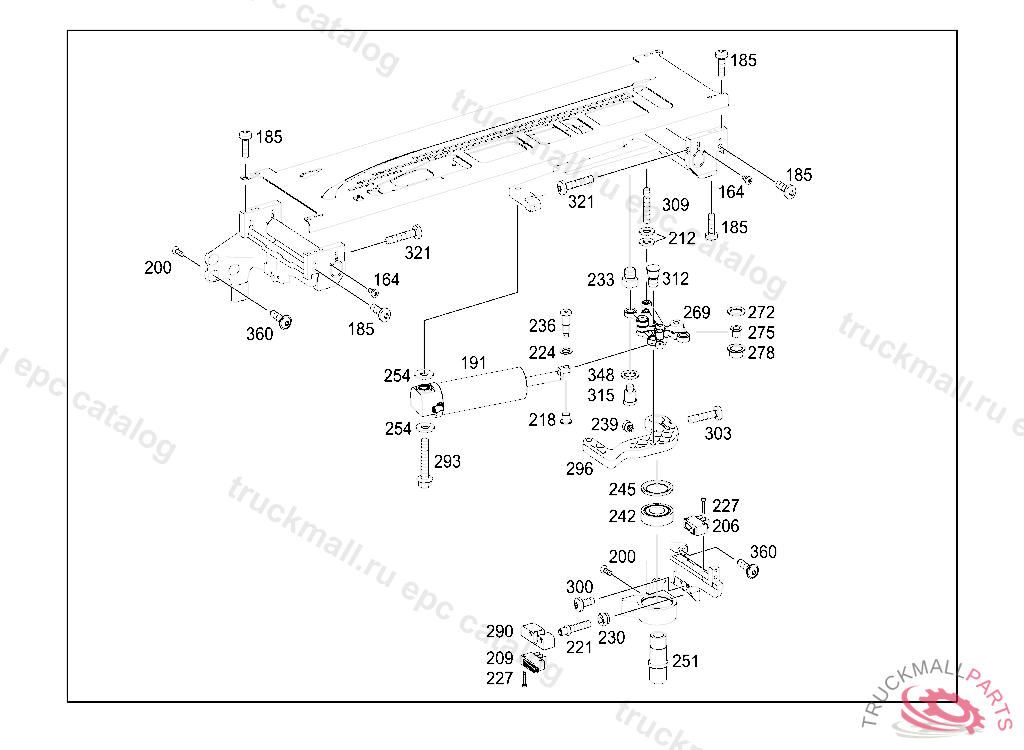

76 DOOR CONTROL - 010 ELECTRIC DOOR OPERATION PLUG-IN SLIDING DOOR IL. 2

Поз.
Артикул
Описание
164
N000000001883
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
185
N000000001428
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
191
A6287600277
CYLINDER GUIDE
200
A0029901120
SCREWM5 X 16 MM
206
A6289820022
MICROSWITCH WITH ROLLER
209
A6289820122
MICROSWITCH WITH FLAG
212
A6289901482
SLIDING DISK
218
A6289920110
COLLARED BUSHING
221
A6289911215
HINGE BOLT
224
N000988010016
FITTED WASHER AS REQUIRED 1.0 MM
227
N000000003259
HEXALOBULAR BOLTM3X16
230
N910118008000
NUT POWER CYLINDER TO SPRING SUPPORT
233
A6289900416
STUD BOLT
236
A6289910315
HINGE BOLT
239
A0009871739
RUBBER BUFFERTO A6277640038
242
A0089816725
BALL BEARING
245
A6287220708
COVERING
251
A6287631469
CONNECTING PIPE SHAFT
254
A2119900040
DISK
269
A6287602208
LOCK
272
A6289902082
SLIDING DISK
275
A6289920110
COLLARED BUSHING
278
A6289920010
COLLARED BUSHING
290
A6287631814
BRACKET
293
N910105012011
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
296
A6287661524
SINGLE-ACTING LEVER
300
N000000001427
HEXALOBULAR BOLT EXPANSION TANK M8X20
303
N000000003123
HEXALOBULAR BOLT
309
A6289910115
HINGE BOLT
312
A6289910215
HINGE BOLT
315
A6289911015
HINGE BOLT
321
N000000002192
HEXALOBULAR BOLTM8X45
348
A6289902082
SLIDING DISK
360
A6289900029
SCREW
