Главная
›
Mercedes
›
BUS
›
O530 - CITARO UE 12M, 2-TUERER
›
628.087
›
63 SIDE PANELS
›

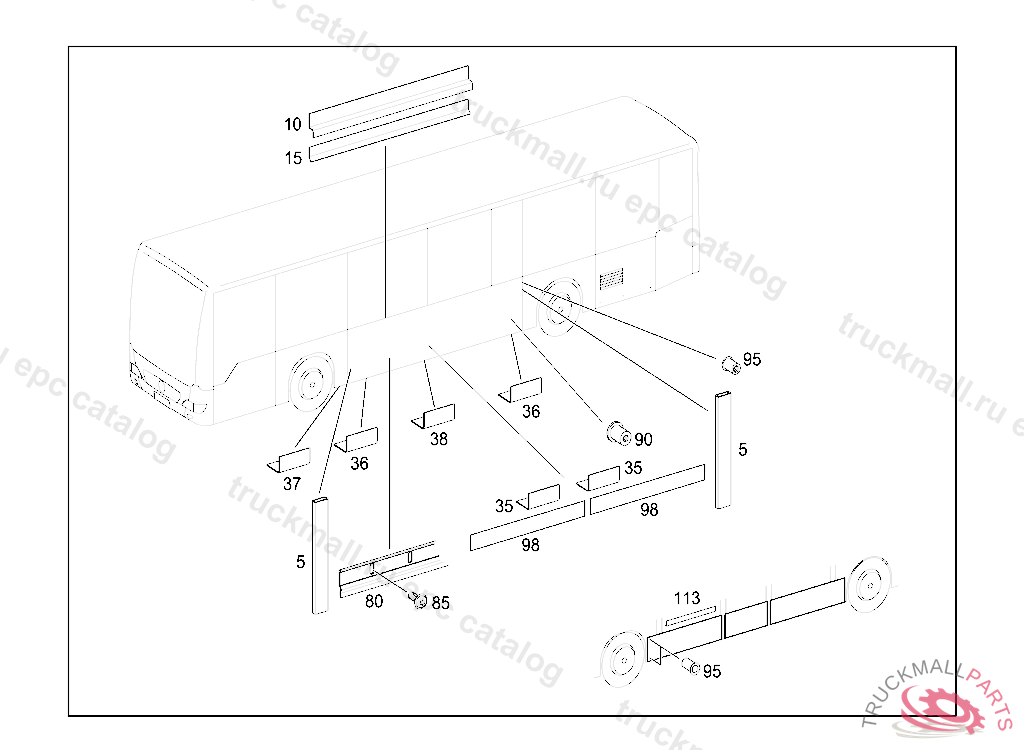

500 SUPPORT AND CONNECTORS FOR FRAME,LEFT AND RIGHT IL. 1
Mercedes A3566028412 - WINKEL BL. 1
O530 - CITARO UE 12M, 2-TUERER 628.087
63 SIDE PANELS - 500 SUPPORT AND CONNECTORS FOR FRAME,LEFT AND RIGHT IL. 1
Поз.
Артикул
Описание
5
A6286370214
BRACKET
10
A6286373114
BRACKET PANELLING 4098 MM, TO BE ADAPTED DURING ASSEMBLY
15
A6286373614
BRACKET PANELLING 2800 MM, TO BE ADAPTED DURING ASSEMBLY
35
A6286376212
ATTACHMENT ANGLE BRACKET IN FRONT OF FRONT AXLE,RIGHT
35
A3566028412
ANGLE BEHIND FRONT AXLE,RIGHT
35
A6286377812
ATTACHMENT ANGLE BRACKET BEHIND FRONT AXLE,RIGHT
36
A6286376012
ATTACHMENT ANGLE BRACKET700MM
37
A6286377712
ATTACHMENT ANGLE BRACKET BEHIND FRONT AXLE,LEFT 242MM
38
A6286376312
ATTACHMENT ANGLE BRACKET500X25X20MM
80
A6286370134
RAILL 4695 MM
80
A6286372434
RETAINING RAIL1952MM
85
A0009903629
SCREWM6X16
90
A0009905159
NUTM6
95
A0039901397
RIVETED NUTM 6X1.0
98
A6286370481
CONNECTION2220X30X1MM, TO BE ADAPTED DURING ASSEMBLY
98
A6286370081
CONNECTION LEFT 2950X30X1MM, TO BE ADAPTED DURING ASSEMBLY
113
A6286375212
ANGLE
