Главная
›
Mercedes
›
BUS
›
O530 - CITARO UE 12M, 2-TUERER
›
628.087
›
73 DOORS
›
073 SWING-IN-DOOR,CENTRAL AND REAR IL. 2
Mercedes N304032004002 - Гайка

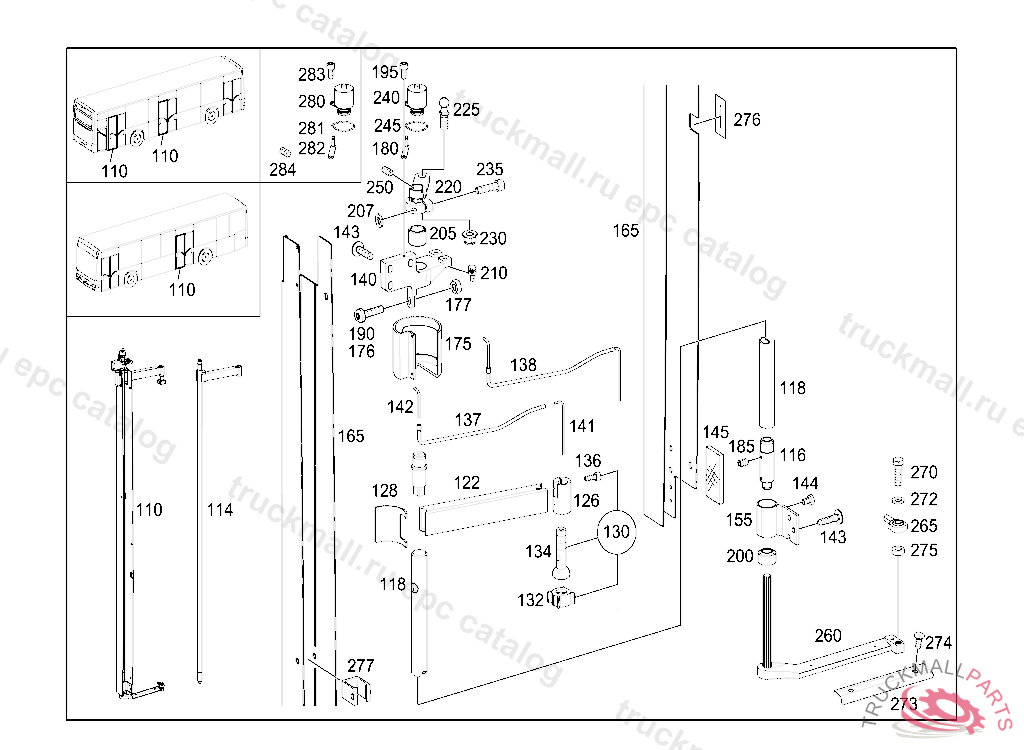

O530 - CITARO UE 12M, 2-TUERER 628.087
73 DOORS - 073 SWING-IN-DOOR,CENTRAL AND REAR IL. 2
Поз.
Артикул
Описание
110
A6287600064
PILLAR
114
A6287600264
PILLAR LEFT
116
A6287630369
TUBE
118
A6287630569
TUBE
122
A6287630337
SUPPORTING ARM LEFT
126
A6287660969
BRACKET LEFT
128
A6287660125
ESCUTCHEON
130
A0007200029
PIVOT PIN TOP
132
A0007661511
ESCUTCHEON
134
A6287660036
MOUNTING
136
A0079903504
SCREWM6X16MM
137
A0007631561
HOSE , TO BE ADAPTED DURING ASSEMBLY
138
A0007201015
PRESSURE WAVE HOSE
140
A6287630208
BEARING TOP, ORDER ADDITIONALLY:A6289920203
141
A6287630437
SUPPORTING ARM TOP
141
A6287631837
SUPPORTING ARM
142
A6287630037
SUPPORTING ARM TOP
143
A6289900029
SCREW
144
N000000005743
HEXALOBULAR BOLT
145
A6289830010
STRIP
155
A6287630020
BEARING HOUSING
165
A6287630308
COVERING
175
A6287630008
COVERING
176
N000000001552
HEXALOBULAR BOLT MOUNTING PARTS M4X16
177
N304032004002
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
180
A6287600128
BRACKET
185
A0009901315
SCREW
190
A0029901405
STUD
195
A0079903404
SCREW
200
A0009921303
BUSHING , Replaced By: A0009924903
200
A0009924903
BUSHING
205
A6289920203
BUSHING
207
N000125008445
WASHER PUMP TO CONSOLE
210
A0009872139
RUBBER BUFFER
220
A6287630137
SUPPORTING ARM
225
N000000003419
SCREW
230
N000000003428
SCREW , Replaced By: N000000005662
230
N000000005662
NUT SUPPORT TO FRAME
230
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
235
A0079903304
SCREW
240
A0018204297
POTENTIOMETER
245
A0139972845
SEAL RING
250
A0009901415
SCREW
260
A6287600361
INTERIOR HANDLE ASSEMBLY
265
A0009969845
ARTICULATION PIECE , Replaced By: A0019961245
265
A0019961245
ARTICULATION PIECE
270
A0009902200
SCREW
272
N000000003737
WASHER
273
A6287600035
DOOR GUIDE
274
A0009904502
SCREW
275
A6289920003
BUSHING
276
A6287660719
PLATE
277
A6287660717
MOUNTING
280
A0018204297
POTENTIOMETER
281
A0139972845
SEAL RING
282
A6287600128
BRACKET
283
A0079903404
SCREW
284
A0009901415
SCREW
999
A0007280090
WELT , Replaced By: A0079896185
999
A0007300497
EDGE GUARD SECTION , Replaced By: A0099875751
999
A0029905778
CONNECTOR2X1, 500MM
999
A6287201654
SEAL LEFT BOTTOM
999
A6287201754
SEAL RIGHT BOTTOM
