Mercedes A1120901501 - Фильтр воздушный

R 500 4MATIC 251.175

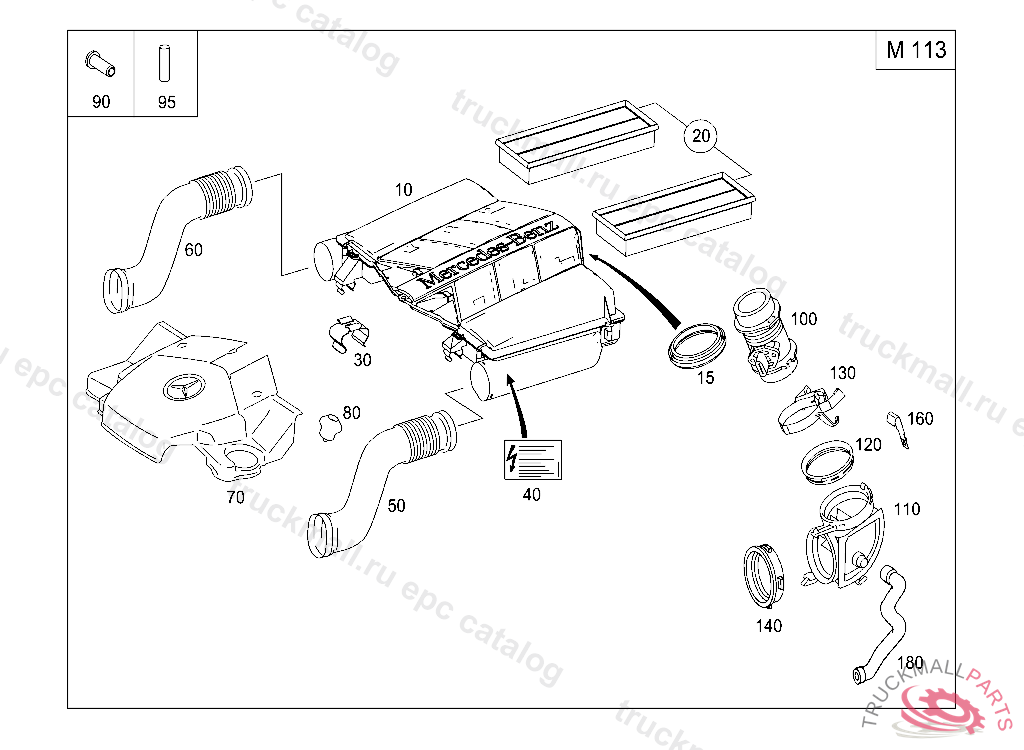

52 CHASSIS SHEET METAL / AIR INTAKE - 140 AIR INTAKE,GASOLINE VEHICLES IL. 1

Поз.
Артикул
Описание
10
A1120901501
AIR FILTER
15
A1120940180
SEAL
20
A2730940404
TS AIR FILTER INSERT
30
A1120940041
BRACKET
40
A2045840047
WARNING STRIP "DANGER!HIGH TENSION!", IN GERMAN,ENGLISH,AND FRENCH
50
A2515050361
LEFT AIR DUCT LEFT, A 06167020070613
60
A2515050461
RIGHT AIR DUCT RIGHT, A 06167120070613
70
A1130101367
COVER PLATE TO AIR FILTER HOUSING
80
A1120900089
BEARING MUFFLER FILTER AT CYLINDER HEAD COVER
90
A0009871145
LOCKING CAP
95
A0039970286
STOP PLUG AT INTAKE MANIFOLD
100
A1130940048
MASS AIR FLOW SENSOR
110
A1121400218
HOUSING INTAKE LINE
120
A1121590180
GASKET
120
A1121590080
GASKET
130
A1121410440
BRACKET AIR-MASS SENSOR TO INTAKE LINE
140
A1121590080
GASKET
140
A1121590180
GASKET
160
A1121410140
BRACKET AIR DUCT
180
A1120180482
HOSE FULL-LOAD CRANKCASE VENTILATION
