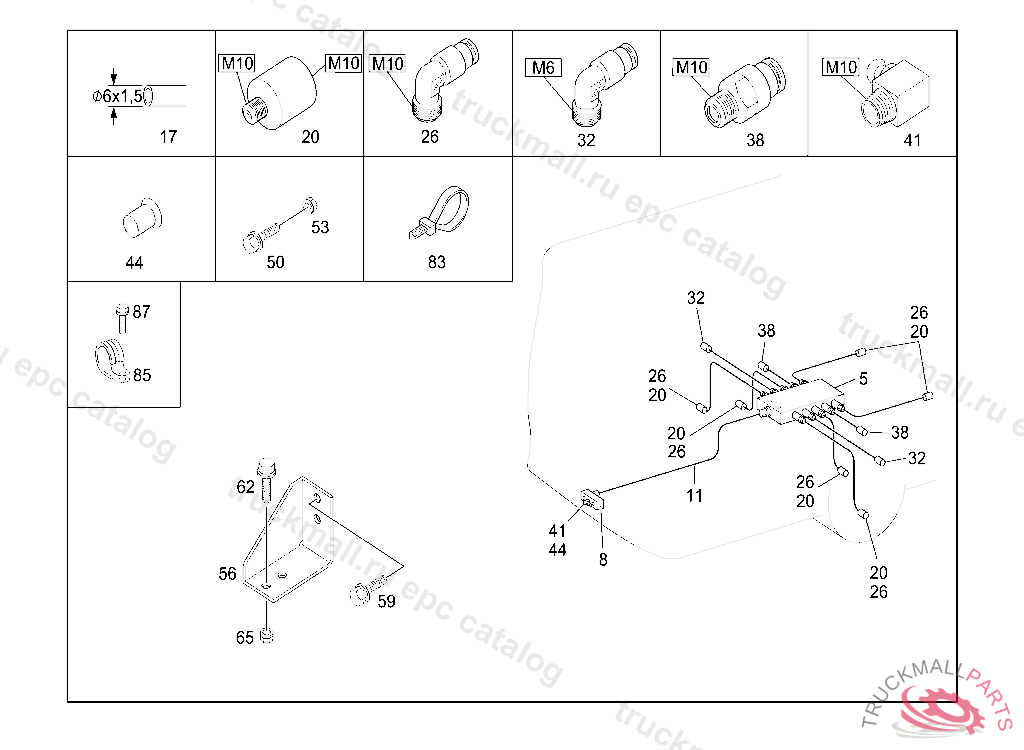

Поз.
Артикул
Описание
5
DISTRIBUTOR FRONT AXLE
8
PLATE GREASE NIPPLE TO SUBSTRUCTURE
11
HOSE FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE 9500 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
17
PLASTIC PIPE6X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
CONNECTOR LINE CONNECTION
26
COUPLING ELBOW FITTING M 10X1
32
COUPLINGM 6X1, Replaced By: A0069974789
32
PLUG CONNECTIONM 6X1
38
CONNECTORM 10X1
41
GREASE NIPPLE
44
EXPANSION PLUG GREASE NIPPLE
50
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
53
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
56
BRACKET GREASE NIPPLE TO SUBSTRUCTURE
59
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
62
SCREW , Replaced By: N000000001479
65
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
83
CABLE TIE LINE MOUNTING 375X8.4MM
85
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
87
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
