Mercedes A0149973645 - Уплотнительное кольцо

CITARO G BLUETEC-HYBRID 628.294

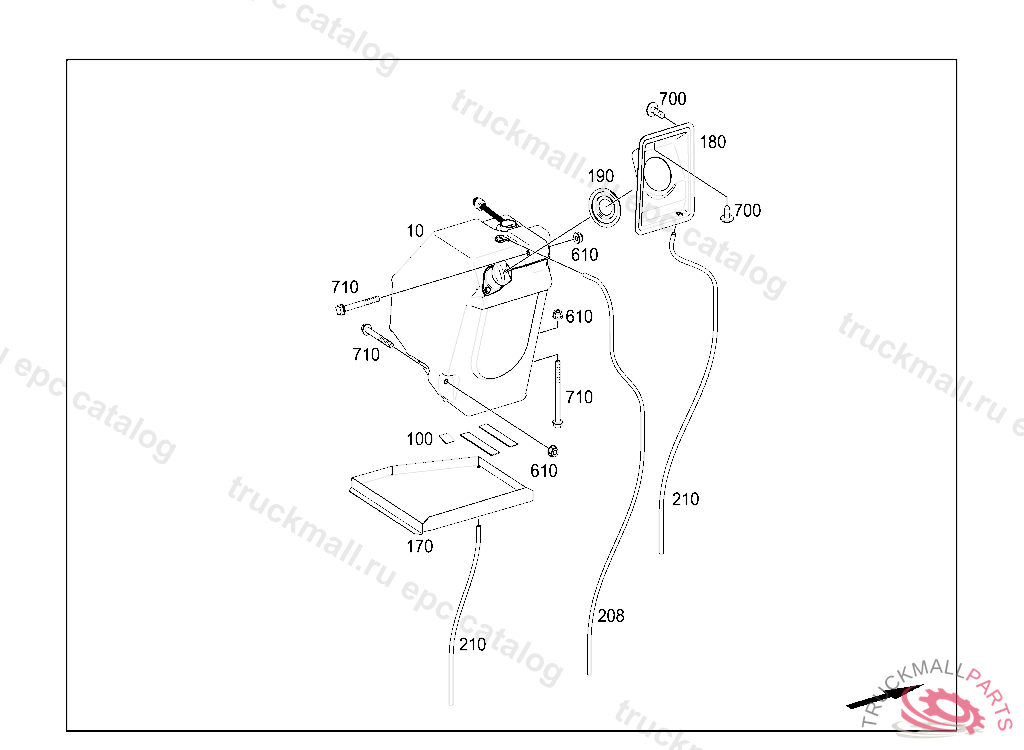

42 BRAKES - 220 ANTI-FREEZE DEVICE,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE IL. 1

Поз.
Артикул
Описание
10
A6284700815
UREA CONTAINER ASSEMBLY
10
A6284710319
REDUCING AGENT TANK W/O DETACHABLE BODY COMPONENTS
100
A0019872333
RUBBER SECTION SEAL TO BODY, ORDER BY THE METER
170
A6284700332
COLLECTING PAN
180
A6284700747
COVERING
190
A1409973981
GROMMET FILLER NECK
208
A0149976882
HOSE BATTERY VENTING 11 X 2 MM, ORDER BY THE METER
210
A0139977382
HOSE 9 X 16 X 1000 MM, TO BE ADAPTED DURING ASSEMBLY
610
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
700
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
700
N000000000520
TAPPING SCREW BRACKET TO SUPPORT
710
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
710
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
710
N910105010013
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO BRACKET M10 X 120
710
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
999
A0149973645
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, SDF
