Mercedes A6284800221 - ZB SPANNBAND

CITARO G BLUETEC-HYBRID 628.294

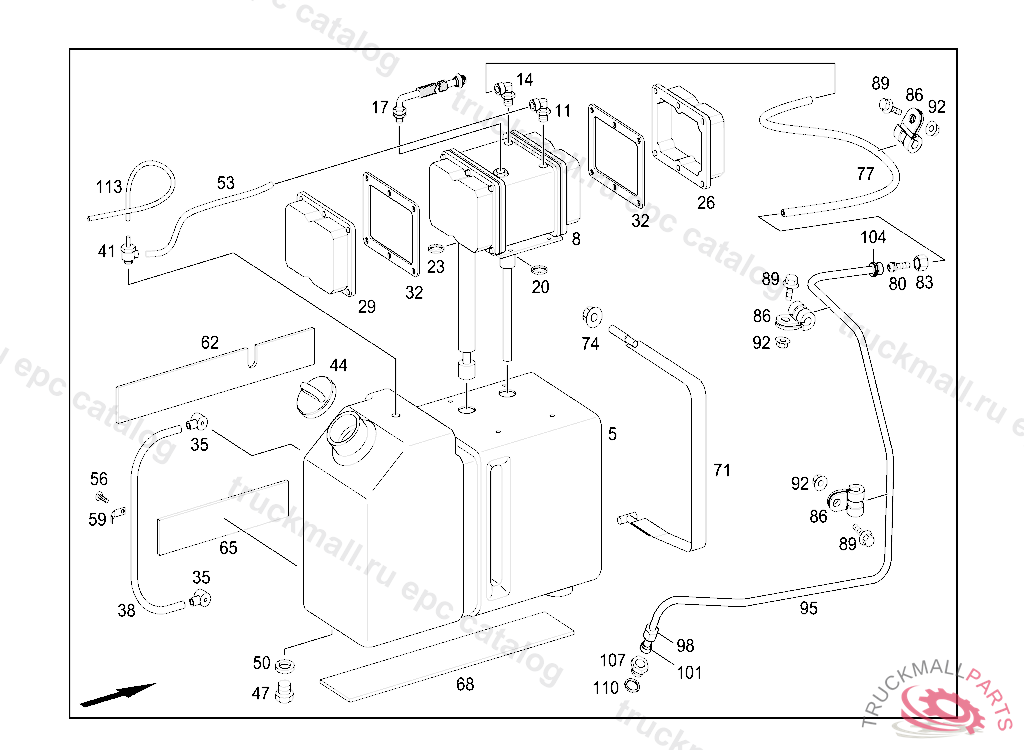

48 OIL TANK - 030 OIL TANK

Поз.
Артикул
Описание
5
A6284801401
OIL TANK ENGINE OIL AUTOMATIC REPLENISHMENT " GROENEVELD "
8
A6285400745
CONTROL UNIT AT OIL TANK
11
A0279970182
BANJO UNION
14
A0029976071
ELBOW FITTING DIA., 10MM
17
A0035401505
CABLE HARNESS
20
A0179972545
SEAL RING17X3 MM
23
A0179972645
SEAL RING22,2X3,5 MM
26
A0004810111
COVER TRANSPARENT
29
A0004810011
COVER BLACK
32
A0179970145
FULL FACE GASKET
35
A6284800025
ELBOW FITTING
38
A0109976482
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
41
A6284800125
ELBOW FITTING
44
A0000180702
CAP OIL REFILLING
47
N007604018109
SCREW PLUG
50
N007603018104
SEAL RING SOLENOID VALVE A 18X24
53
A0109976982
HOSE , Replaced By: A0089979082
56
N000912004016
SCREW. CAP BOLTM4X8
59
A6284811740
BRACKET
62
A6284810182
RUBBER MAT
65
A6284810282
RUBBER MAT234,5X52X5,101397 FROM IDENT NO. WEB 103286103474
68
A6289980246
71
A6284800221
STRAP OIL TANK
74
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
77
A0019970652
HOSETO 346 500 60 03, ORDER BY THE METER
80
A0019974972
FITTING RETURN
83
N000000006238
NUT
86
N000000007511
CLAMP10/15
86
N000000000320
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
89
N910105006006
SCREW BRACKET AND CLAMP M6X20
92
N913023006002
NUT BRACKET TO FIRE WALL
95
A6284801915
98
N000000006238
NUT
101
N915003008211
104
N915008008407
FITTINGD10MM
107
N000000006152
FITTINGM18X1.5
110
N007603018101
SEAL RING VALVE TO VALVE,K 025179
113
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
