Mercedes A6288201812 - ZB ABDECKUNG

CITARO G BLUETEC-HYBRID 628.294

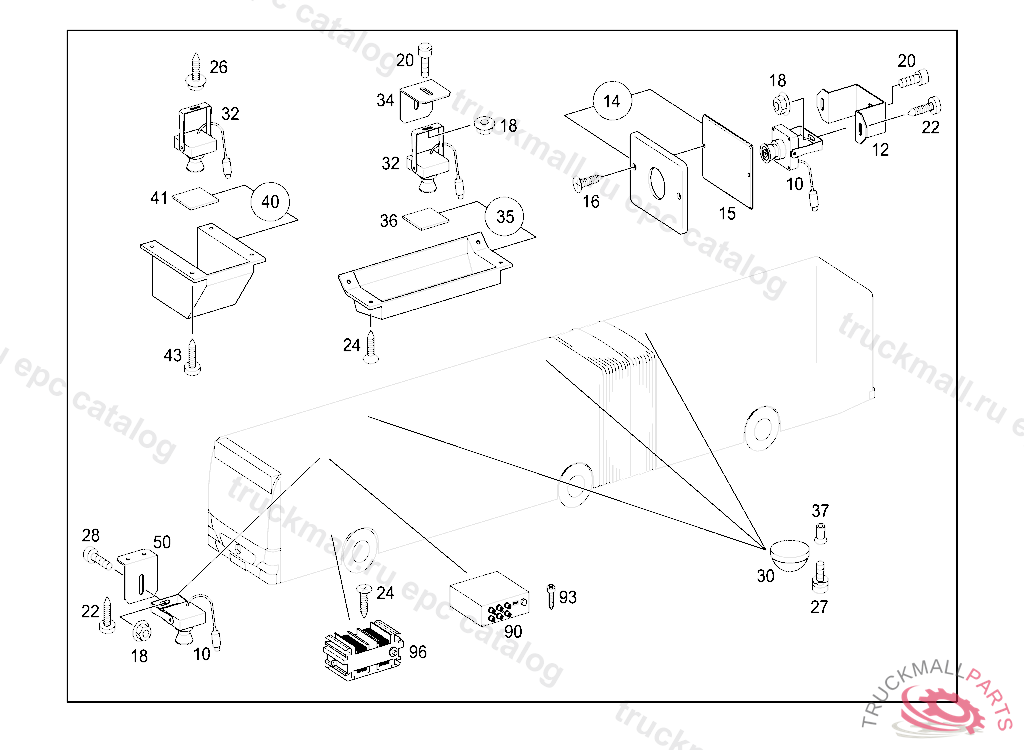

82 ELECTRICAL SYSTEM - 815 MONITORING SYSTEM IL. 1

Поз.
Артикул
Описание
10
A0028200997
CAMERA
12
A3238270556
BRACKET
14
A6286909627
COVER
15
A6288220110
LENS
16
A0019909520
SCREW
18
N000000006148
NUT-AND-WASHER ASSEMBLY. NUTM4
20
N000000001946
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M4X12,V 202043
22
A0019905036
SHEET METAL SCREW42X16
22
N000000000514
TAPPING SCREW MOUNTING PLATE 3.5X9.5
22
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
24
N000000000832
TAPPING SCREW3,5 X 13
26
N910105005010
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
26
N000000000453
SHEET METAL SCREW MODULE TO HOUSING
27
N000000002241
HEXALOBULAR BOLT MOUNTING PARTS M4X16
28
N000000001933
SCREW FUSE BOX TO SIDE MEMBER,5 097182
30
A0028201197
CAMERA INTERIOR SAFEGUARD
30
A0028206197
CAMERA INTERIOR SAFEGUARD
32
A0028201097
CAMERA REAR DOORS
34
A6288222314
BRACKET REAR DOORS
35
A6288201712
COVERING REAR DOORS
36
A6288220410
LENS REAR DOORS
37
A0009880625
DOWEL. TREENAIL
40
A6288201812
COVERING REAR DOORS
41
A6288220410
LENS REAR DOORS
43
A0019845829
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
50
A6288222214
BRACKET
90
A0018208189
VOLTAGE TRANSFORMER
93
N000000000879
TAPPING SCREW2,9X13
