Mercedes A6310940582 - Шланг

MB 140 631.318

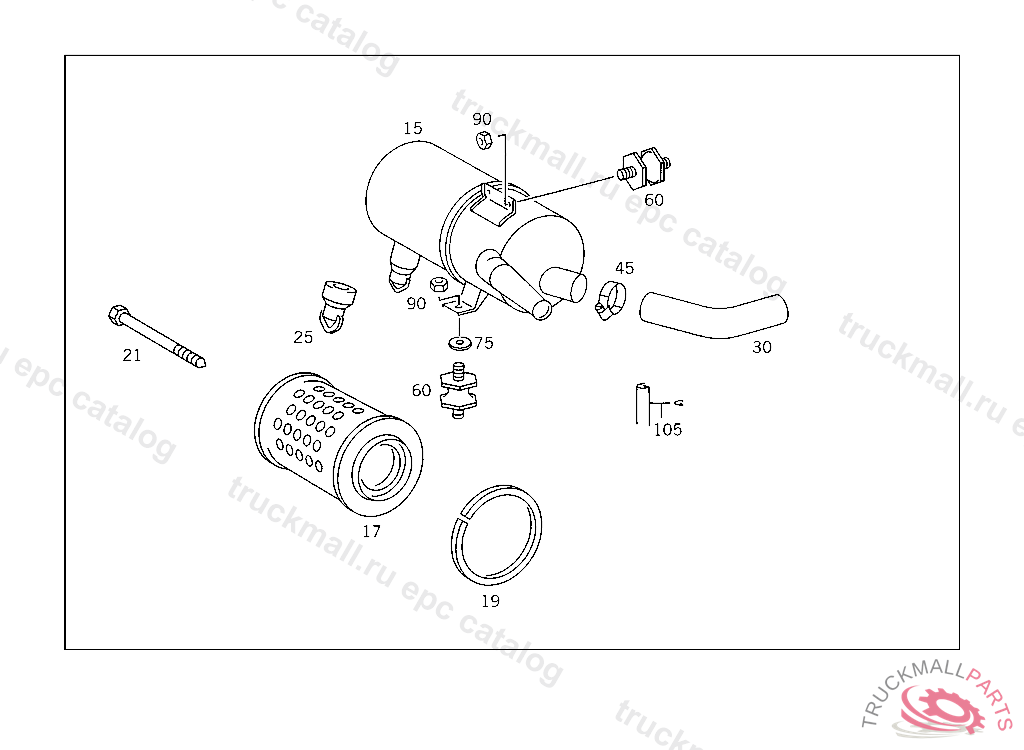

52 CHASSIS SHEET METALL - 001 SHEET METAL,AIR INTAKE IL. 1

Поз.
Артикул
Описание
15
A6310901101
AIR CLEANER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 146978, Replaced By: A6310902301
17
A0030943904
FILTER ELEMENTTO 631 090 11 01
19
A0010948680
GASKETTO 631 090 21 01
21
A0000942571
SCREWTO 631 090 21 01
25
A0000940465
VALVE ON AIR CLEANER
30
A6310940582
HOSE
45
A6319974890
LOOM TIE
45
A6319972090
LOOM TIE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6319974890
45
A6319970590
LOOM TIE
45
N916018060000
CLAMP FROM ENGINE TO TRANSMISSION
60
A6319870239
RUBBER BUFFER AIR CLEANER TO BODY
75
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
90
N000934008010
NUT , Replaced By: N304032008006
105
A6319870572
EDGE GUARD SECTION AIR INTAKE COVERING 400 MM, ORDER BY THE METER
