Поз.
Артикул
Описание

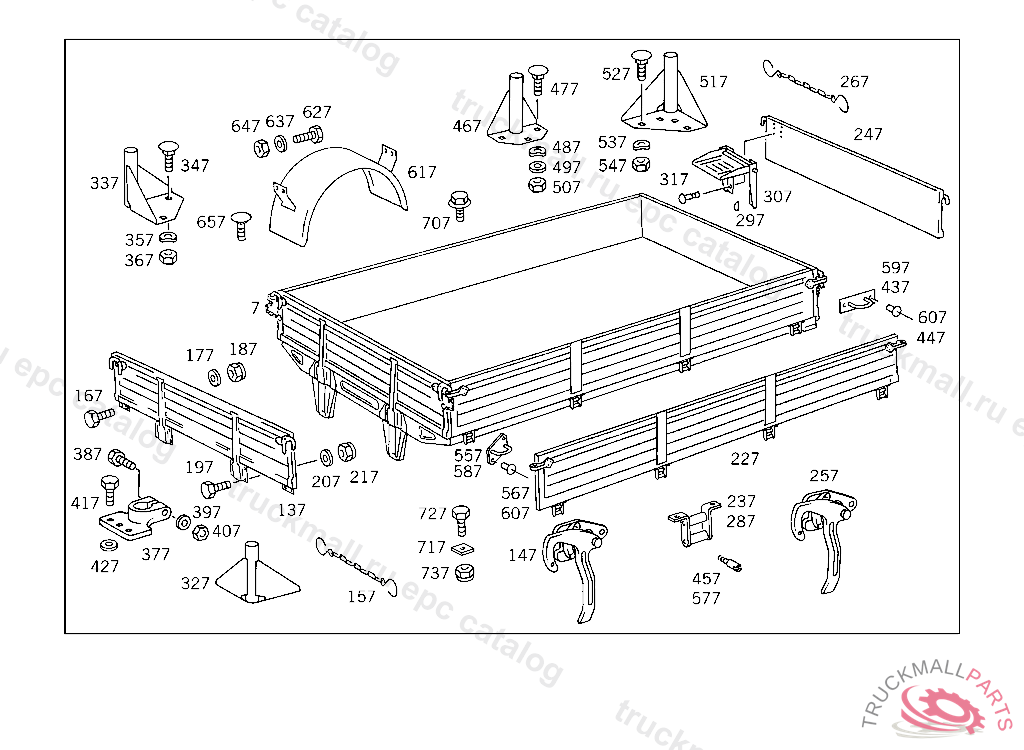

7
PLATFORM3200X1910 MM
7
PLATFORM , Replaced By: A6316000703
137
FRONT PANEL
147
LOCKING HOOK LEFT
147
LOCKING HOOK RIGHT
157
LOCK PLATFORM PANEL FASTENER
167
SCREW , Replaced By: N304017008021
177
WASHER BRACKET TO CROSS MEMBER
187
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
197
SCREW GROUND STRAP TO CAB CROSS MEMBER M 10X25
207
WASHER , Replaced By: N000125010532
217
NUT , Replaced By: N910113010000
227
SIDE PANEL
237
HINGE SIDE PANELS
247
REAR PANEL
257
LOCKING HOOK LEFT
267
LOCK PLATFORM PANEL FASTENER
287
HINGE SIDE PANELS
297
RUBBER BUFFER ,051010
297
RUBBER BUMPER. RUBBER BUFFER FOLDING STEP,546180
307
FOLDING STEP
317
CLINCH-BOLT ,041451
327
BRACKET LEFT,017643SERIE017644 SA 041219/01
337
BRACKET RIGHT
347
SCREW BRACKET TO BODY M8X40
357
SPRING WASHER CABLE TO ALTERNATOR
367
NUT , Replaced By: N304032008006
377
BRACKET LEFT
377
BRACKET RIGHT
387
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
397
WASHER , Replaced By: N000125008443
407
NUT , Replaced By: N304032008006
417
SCREW COVER PLATE TO BRACKET
427
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
437
CRAMP FIXED
447
RIVET , NOT USED
457
SCREW TO SECURE HINGE
467
BRACKET
477
SCREW BRACKET TO BODY M8X40
487
SPRING WASHER , Replaced By: N000137008212
497
WASHER OIL COOLER TO BRACKET
507
NUT , Replaced By: N304032008006
517
BRACKET REAR
527
SCREW BRACKET TO BODY M8X40
537
SPRING WASHER , Replaced By: N000137008212
547
NUT , Replaced By: N304032008006
557
CRAMP SIDE PANELS
567
RIVET , NOT USED
577
SCREW TO SECURE HINGE
587
CRAMP SIDE PANELS
597
CRAMP FIXED
607
RIVET , NOT USED
617
REAR FENDER RIGHT
617
REAR FENDER LEFT
627
SCREW , Replaced By: N304017008021
637
WASHER , Replaced By: N000125008443
647
NUT , Replaced By: N304032008006
657
SCREW ,085248
657
SCREW BRACKET MOUNTING,085247
707
TAPPING SCREW FLOOR BOARD TO SUBSTRUCTURE 5.5X38 MM,085248
707
TAPPING SCREW FLOOR BOARD TO SUBSTRUCTURE 5.5X45 MM,085247
717
BASE PLATFORM TO FRAME
727
HEX. HEAD SCREW. SCREW ELECTRIC CABLE TO SIDE MEMBER, 032,033,040,041,132,133,140,141 FROM CAB 1606715
727
SCREW REAR EXHAUST PIPE TO MUFFLER
737
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
TAIL LAMP
999
TAIL LAMP RIGHT
999
BOARD ,085248
999
CLINCH-BOLT ,041452
999
CLINCH-BOLT ,041452
999
WASHER ,094488
999
PLUG ,051010
999
WASHER BRACKET TO CROSS MEMBER, UP TO CHASSIS A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
