Mercedes A6292910240 - Halter

FAHRGESTELL - MULTEGO 2-ACHSER 634.664

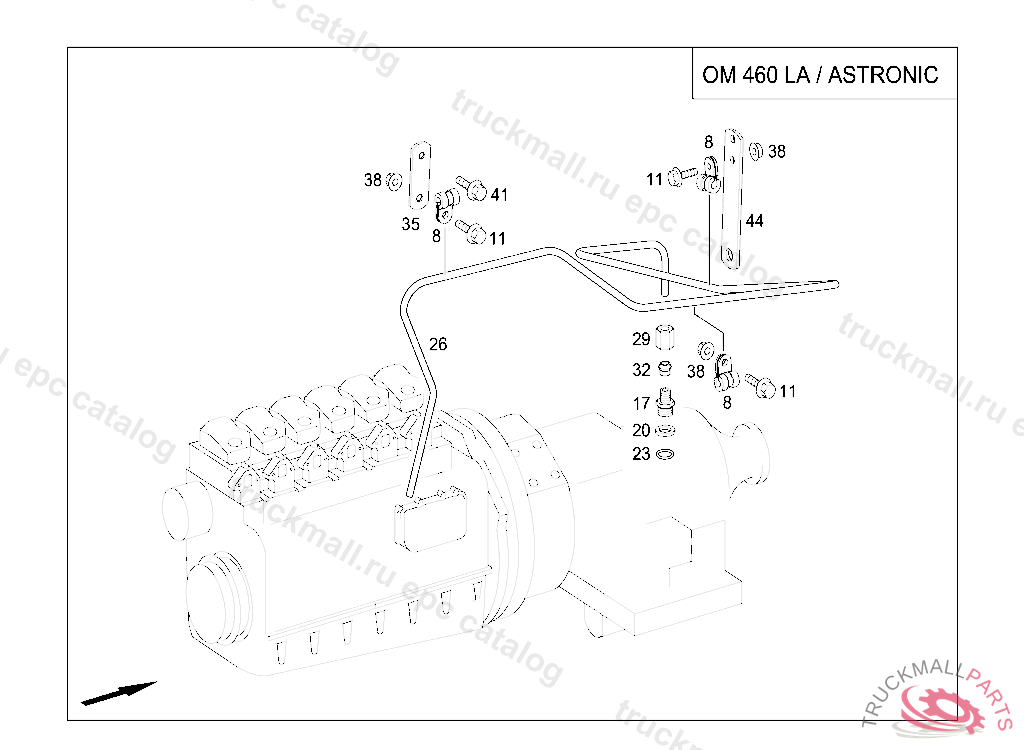

26 TRANSMISSION - 910 BREATHER LINES IL. 3

Поз.
Артикул
Описание
8
N000000007509
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
8
N000000003085
CLAMP6/15, Replaced By: N000000007509
11
N910105006006
SCREW BRACKET AND CLAMP M6X20
17
N000000006277
FITTING , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.04.2010
17
N003901006004
SCREW-IN FITTING , Replaced By: A0029978472
20
A0004291127
THRUST RING14X10X2.6MM
23
A0269970248
O-RING
26
A6342680282
29
N915017006100
UNION NUT
29
N000000006235
NUTAL6
32
A0019907467
GLANDBS6
35
A6345045240
BRACKET
38
N913023006002
NUT BRACKET TO FIRE WALL
41
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
44
A6292910240
BRACKET
