Mercedes N071412008300 - Ниппель

FAHRGESTELL - MULTEGO 2-ACHSER 634.664

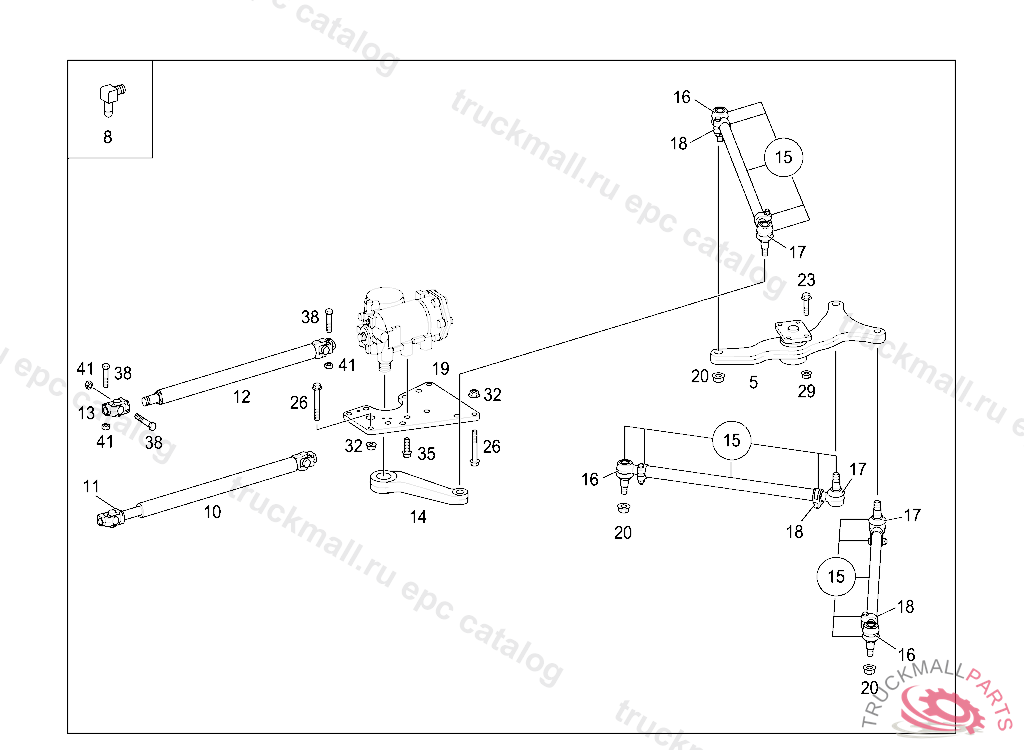

46 STEERING - 390 STEERING ARM AND DRAG LINK

Поз.
Артикул
Описание
5
A6344600119
8
N071412008300
GREASE NIPPLE
12
A6274600509
13
A0004600157
UNIVERSAL JOINT ,5 463985
14
A6344630001
PITMAN ARM
15
A6343300003
TIE ROD
16
A0004608948
DRAG LINK END R.H. THREAD
17
A0004603648
18
A0004601264
CLAMP
19
A6344610329
PLATE
20
A0019905451
NUT DRAG LINK END M 24X1.5
23
N000000005721
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
26
N000000005567
HEXAGON HEAD BOLT STEERING BRACKET TO FRAME M18X1.5X120,V 207570
29
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
29
N000000005662
NUT SUPPORT TO FRAME
32
N000000005739
NUT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5
35
A0159901401
SCREWM20X1.5X40
38
A3819900114
SCREW STEERING SHAFT TO STEERING M 8X42
41
N910113008001
NUT STRAP TO BRACKET
