FAHRGESTELL - MULTEGO 2-ACHSER
›
634.664
›
32 SPRINGS AND SUSPENSION
›

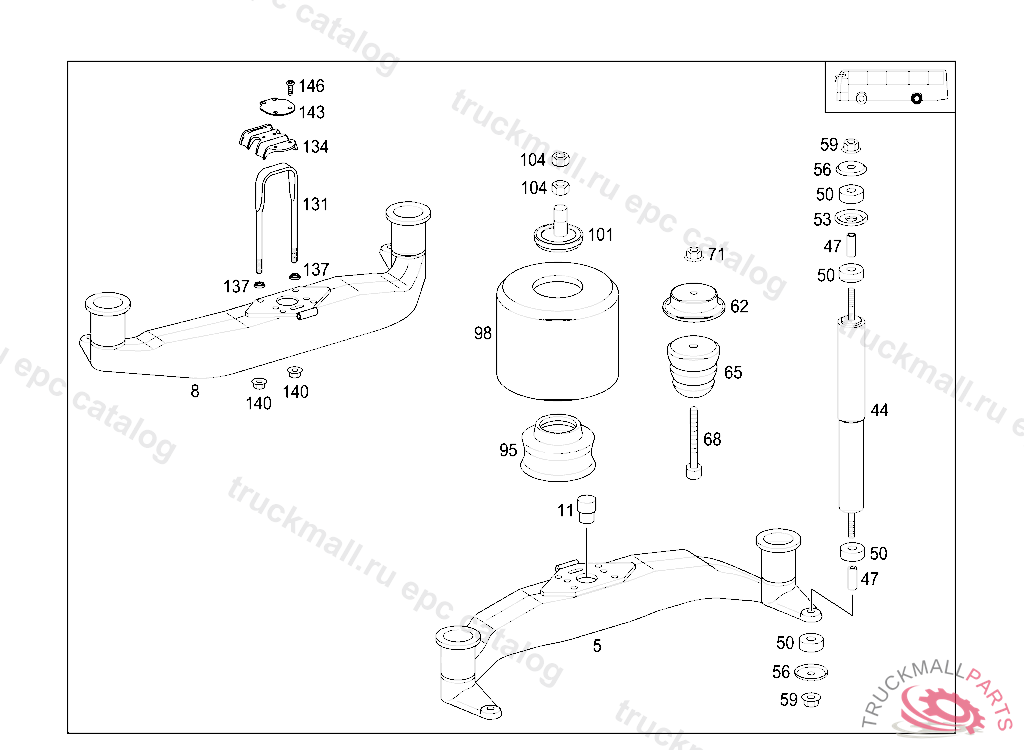

560 PNEUMATIC SUSPENSION & STABILIZATION ON REAR AXLE IL. 1
Mercedes A6343200775 - ZB FEDERTRAEGER
FAHRGESTELL - MULTEGO 2-ACHSER 634.664
32 SPRINGS AND SUSPENSION - 560 PNEUMATIC SUSPENSION & STABILIZATION ON REAR AXLE IL. 1
Поз.
Артикул
Описание
5
A6343200775
8
A6343200775
11
A6293250074
PIN
44
A3563260700
SHOCK ABSORBER
47
A3179911040
SPACER TUBE FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
50
A3073230044
RUBBER BUFFER
53
A6293260067
RETAINER
56
A3173230667
RETAINER
59
N000000005585
HEXAGON NUT BRACKET TO SIDE MEMBER M14 X 1,5
62
A6293250015
SPRING CASE
65
A6293200077
RUBBER SPRING
68
N000912012214
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1,5X60
71
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
95
A3573200134
SUPPORT FRONT AXLE AIR SPRING BELLOWS
95
A3573201534
SUPPORT AIR SPRING BELLOWS,BOTTOM
98
A0003200321
AIR SPRING BELLOWSBL121
98
A0003270201
AIR SPRING BELLOWS TRAILING AXLE LIFT
98
A0003270101
AIR SPRING BELLOWS REAR AXLE
101
A6293200235
PLATE ,WEB 629012 13 520210,WEB 629015 13 520032
104
N000000005915
NUTM24X1.5
104
N080705024002
NUT POWER CYLINDER TO BRACKET
131
A6293510125
U-BOLT
134
A6293510812
SPRING SADDLE LEFT
134
A6293510912
SPRING SADDLE RIGHT
137
A6293510080
GASKET
140
A0019908850
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
143
A6293510026
PLATE
146
A0029900420
ECCENTRIC SCREW ROCKER PANEL TO BRACKET M8X12
999
A6293200134
