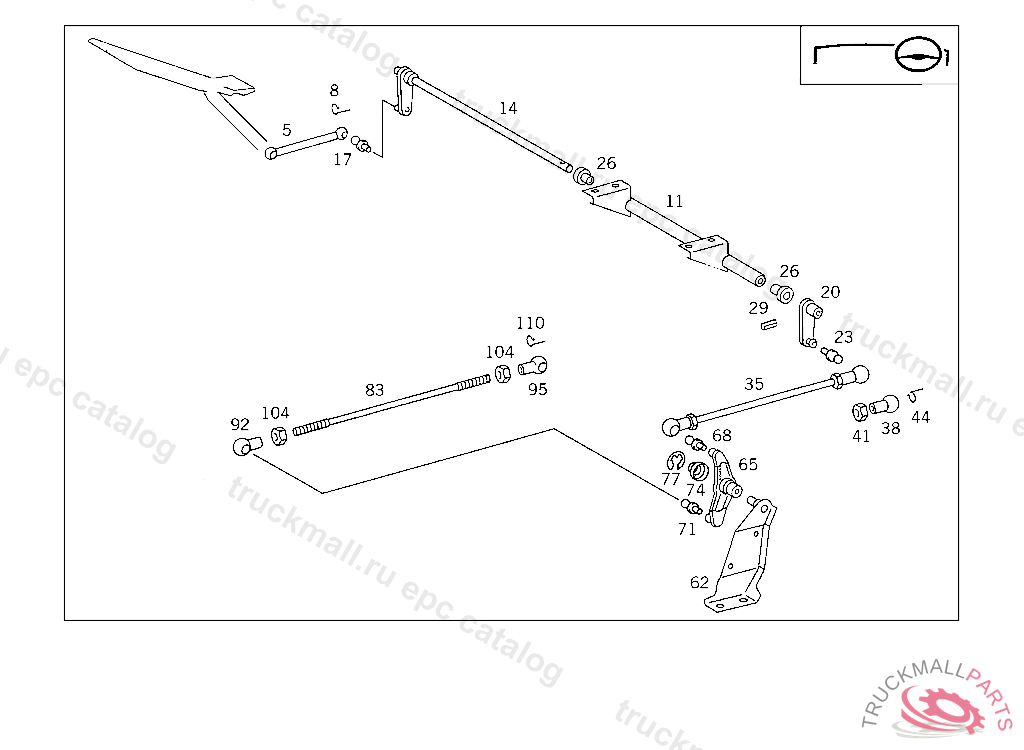

Поз.
Артикул
Описание
5
BALL SOCKET ROD TO ACCELERATOR PEDAL
8
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
11
BEARING TUBE CONTROL SHAFT,5 151594
14
SHAFT CONTROL,5 151594
17
BALL PIVOT
20
LEVER (CONTROL LEVER)
23
BALL PIVOT
26
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
29
CLAMPING SLEEVE , Replaced By: N308752004001
29
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
35
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
38
BALL SOCKET PULL ROD TO LEVER
41
NUT BALL PIVOT TO LEVER
44
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
62
BEARING BRACKET INTERMEDIATE BEARING
65
LEVER (INTERMEDIATE LEVER)
68
BALL PIVOT , Replaced By: A3129910120
68
BALL PIVOT LEVER
71
BALL PIVOT BOTTOM B13X5 MM
74
COVERING INTERMEDIATE BEARING
77
LOCK PLATE INTERMEDIATE BEARING
83
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
92
BALL SOCKET CONTROL ROD
95
BALL SOCKET ROD TO BALL PIVOT
104
NUT , Replaced By: N304032008006
104
NUT
110
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
110
SECURING CLIP. CIRCLIP
