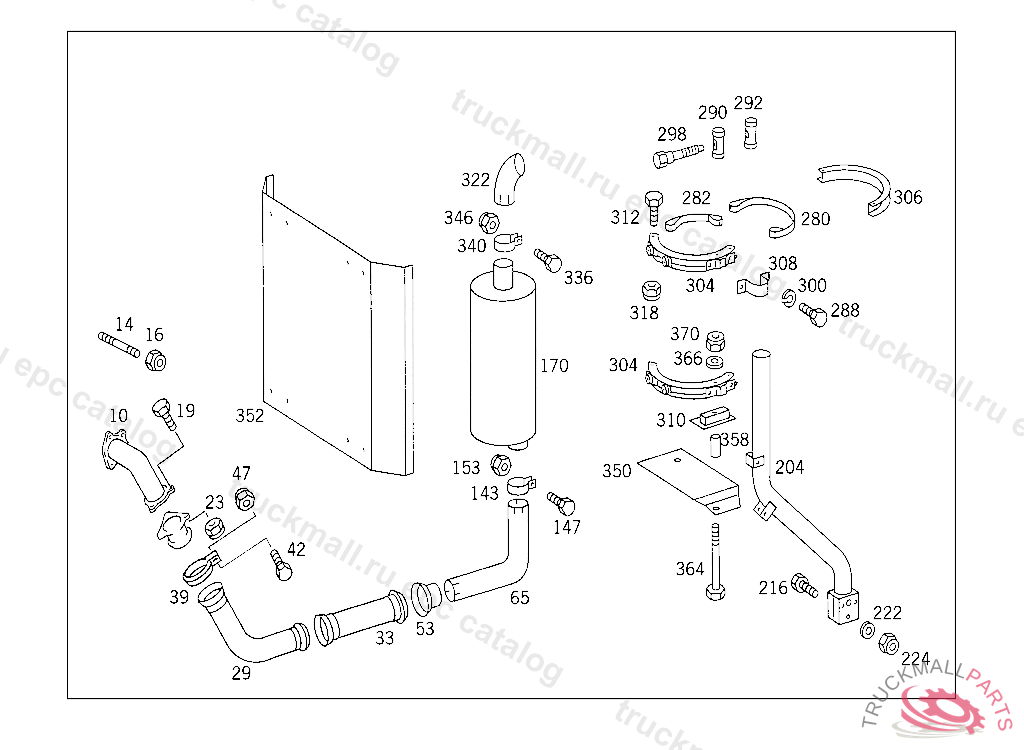

Поз.
Артикул
Описание
10
CONNECTOR LEFT FRONT
10
CONNECTOR , Replaced By: A6254900925
10
CONNECTOR , Replaced By: A6254900725
10
CONNECTOR RIGHT FRONT
14
STUD CONNECTING PIPE TO EXHAUST MANIFOLD
16
NUT STRAP TO BRACKET
16
NUT , Replaced By: N910113010000
19
SCREW CONNECTING PIPE TO EXHAUST BRAKE
23
NUT END PIECE TO EXHAUST PIPE
23
NUT , Replaced By: A0009903150
29
CONNECTOR RIGHT
29
CONNECTOR LEFT
33
FLEXIBLE METAL TUBE FRONT LEFT
39
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
42
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
42
SCREW , Replaced By: N304017008028
47
NUT , Replaced By: N913004008001
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
53
COLLAR (SLIDING COLLAR)
65
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, LEFT
65
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
143
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
147
SCREW , Replaced By: N304017010002
147
SCREW BRACKET TO SIDE MEMBER
153
NUT , Replaced By: N910113010000
153
NUT STRAP TO BRACKET
170
EXHAUST MUFFLER
170
EXHAUST MUFFLER , Replaced By: A6254900201
204
SUPPORT EXHAUST MUFFLER,LEFT AND RIGHT
216
SCREW BEARING BRACKET TO FRAME
216
SCREW SHOCK ABSORBER TO CONSOLE
216
SCREW CLAMP TO BRACKET AND TO PIPE
216
SCREW PIPE CLAMP
216
SCREW REAR EXHAUST PIPE TO MUFFLER
216
SCREW , Replaced By: N304017008021
216
SCREW , Replaced By: N304017008042
222
WASHER RADIATOR TO RUBBER MOUNTING
224
NUT STRAP TO BRACKET
224
NUT , Replaced By: N910113010000
280
STRAP EXHAUST MUFFLER TO BRACKET
282
STRAP EXHAUST MUFFLER TO BRACKET
288
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
288
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
290
PIN PARTICLE FILTER
292
PIN PARTICLE FILTER
298
CLAMPING SCREW PARTICLE FILTER
300
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
304
BRACKET EXHAUST MUFFLER TO SUPPORT
306
BRACKET EXHAUST MUFFLER TO SUPPORT
308
CLAMP BRACKET TO SUPPORT
310
BRACKET EXHAUST MUFFLER BOTTOM STOP
310
BRACKET , Replaced By: A0804918541
312
SCREW FRONT AXLE REGULATING SOLENOID VALVE
312
SCREW , Replaced By: N000933008134
318
NUT , Replaced By: N913004008001
318
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
318
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
322
EXHAUST PIPE (TAIL PIPE)
322
EXHAUST PIPE (TAIL PIPE)
336
SCREW , Replaced By: N304017010002
336
SCREW BRACKET TO SIDE MEMBER
336
SCREW REAR EXHAUST PIPE TO MUFFLER
340
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
346
NUT STRAP TO BRACKET
346
NUT , Replaced By: N910113010000
350
PROTECTIVE PLATE EXHAUST MUFFLER
352
PROTECTIVE PLATE AT BRACKET
358
SPACER TUBE VALVE TO CROSS MEMBER
364
SCREW , Replaced By: N304014008001
364
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
366
WASHER , Replaced By: N009021008213
366
WASHER BRACKET TO LEFT SIDE MEMBER
370
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
370
NUT , Replaced By: N913004008001
999
PROTECTIVE PLATE , Replaced By: A6994921330
999
ANGLE SUPPORT TO FRAME
