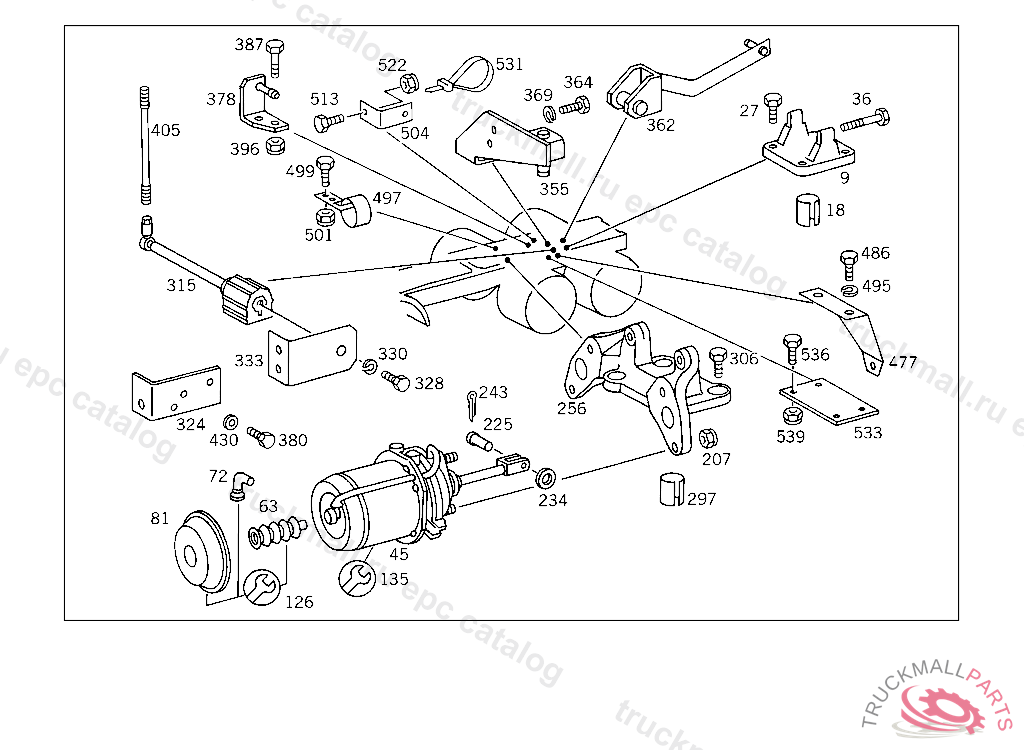

Поз.
Артикул
Описание
9
BEARING BRACKET UPPER CONTROL ARM TO REAR AXLE II
18
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
27
SCREW BEARING BRACKET TO REAR AXLE M 20X50,5 107924
36
SCREW UPPER CONTROL ARM M20X1,5X85
45
WHEEL BRAKE CYLINDER TRISTOP CYLINDER GRAU
45
WHEEL BRAKE CYLINDER TRISTOP CYLINDER BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
45
WHEEL BRAKE CYLINDER TRISTOP CYLINDER KNORR
45
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO
63
PROTECTIVE CAPTO 008 420 62 18,KNORR
63
CUPTO 008 420 97 18, 008 420 90 18, BOSCH
63
CUPTO 006 420 28 18,WABCO
63
CUPWABCO
63
CUP , Replaced By: A0004213886
63
CUPTO 007 420 68 18,WABCO
63
CUP , Replaced By: A0004215286
72
FITTINGWABCO
81
DIAPHRAGMTO 008 420 61 18,009 420 22 18
81
DIAPHRAGMTO 008 420 95 18,008 420 97 18,BOSCH
81
DIAPHRAGMTO 010 420 25 18,KNORR
81
DIAPHRAGMTO 009 420 10 18,WABCO
81
DIAPHRAGMBOSCH,K 262627
81
DIAPHRAGMTO 007 420 42 18,KNORR
81
DIAPHRAGM , Replaced By: A0004314128
81
DIAPHRAGMWABCO
81
DIAPHRAGM , Replaced By: A0004314128
81
DIAPHRAGMTO 007 420 68 18,69 18,70 18,WABCO
81
CUPTO 006 420 28 18,WABCO
81
DIAPHRAGMTO 007 420 65 18, 012 420 00 18, WABCO
126
REPAIR KIT DIAPHRAGM CYLINDER KNORR
126
REPAIR KIT DIAPHRAGM PART WABCO
126
REPAIR KIT DIAPHRAGM PART TO 007 420 65 18, 012 420 00 18, WABCO
126
REPAIR KIT. BRAKE CYLINDER DIAPHRAGM PART TO 007 420 42 18, KNORR
126
REPAIR KIT TRISTOP CYLINDER TO 010 420 25 18,KNORR
126
REPAIR KIT TRISTOP CYLINDER WABCO
126
REPAIR KIT TRISTOP CYLINDER WABCO
126
REPAIR KIT TRISTOP CYLINDER WABCO
126
REPAIR KIT DIAPHRAGM PART WABCO,K 186393
126
REPAIR KIT DIAPHRAGM PART TO 007 420 68 18, WABCO
126
REPAIR KIT DIAPHRAGM PART WABCO
126
REPAIR KIT DIAPHRAGM PART WABCO,K 180897
135
REPAIR KIT COMBINATION CYLINDER KNORR,K 186394
135
REPAIR KIT COMBINATION CYLINDER KNORR,K 186394
135
REPAIR KIT COMBINATION CYLINDER BOSCH,K 180897
135
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO
135
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO
135
REPAIR KIT TRISTOP CYLINDER TO 009 420 22 18, KNORR
135
REPAIR KIT SPRING LOAD ACCUMULATOR CYLINDER TO 008 420 20 18,KNORR
135
REPAIR KIT , Replaced By: A0024301560
135
REPAIR KIT , Replaced By: A0025865242
135
REPAIR KIT SPRING LOAD ACCUMULATOR PART TO 007 420 68 18,007 420 70 18,WABCO
135
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO,K 262627
135
REPAIR KIT SPRING LOAD ACCUMULATOR PART KNORR,K 262627
135
REPAIR KIT TRISTOP CYLINDER TO 008 420 90 18, BOSCH
135
REPAIR KIT , Replaced By: A0044201724, +002A0044201324
135
REPAIR KIT TRISTOP CYLINDER TO 010 420 25 18,KNORR
135
REPAIR KIT TRISTOP CYLINDER WABCO
135
REPAIR KIT TRISTOP CYLINDER WABCO
135
REPAIR KIT SPRING LOAD ACCUMULATOR BRAKE CYLINDER WABCO
135
REPAIR KIT TRISTOP CYLINDER WABCO
135
REPAIR KIT , Replaced By: A0024209824, +002A0024209424
135
REPAIR KIT TRISTOP CYLINDER TO 008 420 95 18, 008 420 97 18, BOSCH
207
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
225
PIN , Replaced By: A3619910005
225
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
234
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
234
WASHER , Replaced By: N000433015005
243
COTTER PIN STRAP TO SUPPORT
256
BEARING BRACKET WHEEL CYLINDER, DELIVER ADDITIONALLY UP TO IDENT NO. 5 107924: 4X 914142 020203
256
BEARING BRACKET WHEEL CYLINDER, DELIVER ADDITIONALLY UP TO IDENT NO. 5 107924: 4X 914142 020203
297
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
306
SCREW BEARING BRACKET TO REAR AXLE M 20X60,5 107925
306
SCREW BEARING BRACKET TO REAR AXLE M 16X40
306
SCREW BEARING BRACKET TO REAR AXLE M 20X50, IN CASE OF CAST AXLE
306
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
306
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
306
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
306
SCREW BRACKET TO REAR AXLE M 20X1.5X45
306
SCREW BRACKET TO REAR AXLE M 20X1.5X55
306
SCREW , Replaced By: N308676016007
306
SCREW , Replaced By: N308676016006
306
SCREW , Replaced By: N308676016013
306
SCREW BEARING BRACKET TO REAR AXLE M 20X50,5 107924
315
METAL SPRING BELLOWS ,4 9579425 498312
315
METAL SPRING BELLOWS ,4 957941, Replaced By: A0004311718, +001N000961012047
324
BRACKET METAL SPRING BELLOWS
328
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
330
LOCK WASHER FITTING TO BRACKET
333
BRACKET METAL SPRING BELLOWS,REAR AXLE I
355
BRACKET METAL SPRING BELLOWS
362
CONSOLE METAL SPRING BELLOWS
364
HEXAGON HEAD BOLT. SCREW BRACKET TO REAR AXLE
364
SCREW PIPE CLAMP
364
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
364
SCREW , Replaced By: N308676012040
364
SCREW , Replaced By: N304017008016
364
SCREW , Replaced By: N304017008021
369
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
378
BRACKET LINK
380
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
380
SCREW , Replaced By: N308676012012
387
SCREWM 8X40
396
NUT , Replaced By: N913004008001
396
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
396
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
405
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
405
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
430
WASHER LEFT AND RIGHT CONSOLES TO CAB
477
BRACKET TRISTOP CYLINDER
477
BRACKET , Replaced By: A6573280740
477
BRACKET TRISTOP CYLINDER,5 487692
486
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
495
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
497
CLAMP , Replaced By: A6554314640
497
BRACKET BRACKET TO CONTROL ARM
497
BRACKET , Replaced By: A6674920240
499
SCREW CABLE HARNESS MOUNTING
499
SCREW , Replaced By: N304017008023
501
NUT , Replaced By: N913004008001
501
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
501
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
504
BRACKET BRACKET TO CROSS MEMBER
504
BRACKET , Replaced By: A6205243040
513
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
513
SCREW , Replaced By: N304017008027
522
NUT , Replaced By: N913004008001
522
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
531
LOOM TIE LINE MOUNTING
531
LOOM TIE LINE MOUNTING 280 MM
533
BRACKET BRAKE POWER REGULATOR TO FRAME
536
SCREW BRACKET TO CROSS CONNECTION STRUT
536
SCREW , Replaced By: N304017008034
539
NUT , Replaced By: N913004008001
539
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N910113010000
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT STRAP TO BRACKET
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
999
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
999
SCREW , Replaced By: N308676016006
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW , Replaced By: N304017008016
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
WASHER VIBRATION ABSORBER TO BRACKET
999
WASHER , Replaced By: N000433010510
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
BRACKET COMPRESSED AIR GUIDE, REAR AXLE.,K 180897 SIMPLE PART-PLEASE HAVE SHOP MADE
999
BEARING BRACKET COMBINATION CYLINDER,5 596744
999
BRACKET METAL SPRING BELLOWS
999
BRACKET REAR AXLE BRAKE HOSE
999
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER,K 186394
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 700 MM,K 181361
999
BEARING BRACKET WHEEL CYLINDER, IN CASE OF CAST AXLEK 180896
999
BRACKET AT BEARING BRACKET,K 121834
999
BRACKET METAL SPRING BELLOWS,REAR AXLE I
999
BRACKET METAL SPRING BELLOWS
999
BRACKET BEARING BRACKET TO REAR AXLE
999
PIN LINK
999
BRACKET BRACKET TO REAR AXLE I
999
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
999
BEARING BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6194230733
999
BEARING BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6194230633
999
BRACKET METAL SPRING BELLOWS,5 356526
999
BEARING BRACKET COMBINATION CYLINDER
999
ROD
999
BEARING BRACKET
999
BRACKET INSIDE RIGHT
999
BRACKET PRESSURE GAUGE LINE TO BRACKET
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
REPAIR KIT COMBINATION CYLINDER BOSCH,K 180897
999
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER) WABCO,K 186956
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER GRAU
999
WHEEL BRAKE CYLINDER , Replaced By: A0164208218
999
SCREW SUPPORT TO TRANSMISSION M 20X60
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION 9 MM,TO M 22
999
REPAIR KIT DIAPHRAGM PART KNORR, Replaced By: A0024209524
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
SCREW BRACKET TO CROSS MEMBER M 8X45
999
NUT BRACKET TO BRACKET
999
YOKE TOP
999
YOKE BOTTOM
999
REPAIR KIT , Replaced By: A0024209524, +002A0024209424
999
DISTRIBUTOR HOSE WIDTH, 9 MM,TO M 22
