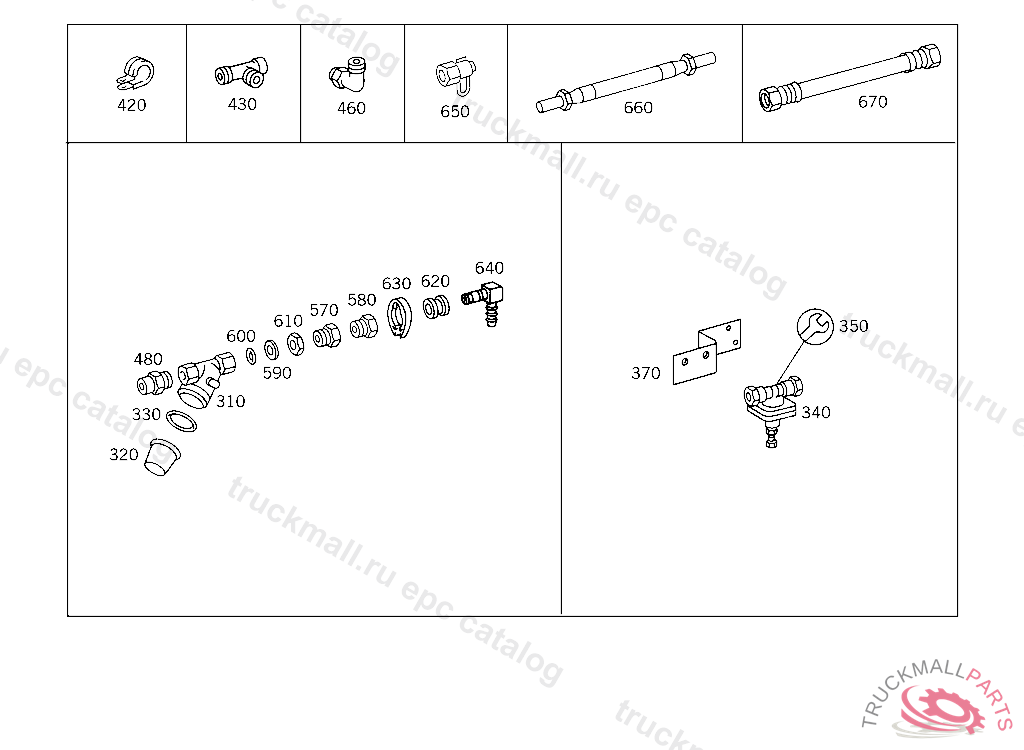

Поз.
Артикул
Описание
310
AIR CLEANER COMPRESSED AIR LINE
320
FILTER ELEMENT
330
SEAL RING39.2X3.0 MM
340
VALVE (OVERFLOW VALVE)
340
VALVE (OVERFLOW VALVE)
340
VALVE (OVERFLOW VALVE)
340
VALVE (OVERFLOW VALVE)
350
REPAIR KITTO 001 429 52 44
350
REPAIR KITTO 003 429 02 44
370
BRACKET OVERFLOW VALVE
420
CLAMP DELIVERY AND SUCTION LINES TO FRAME
430
TANK RECESS. T-FITTING LINE CONNECTION
430
T-FITTING LINE CONNECTION
460
ELBOW FITTING LINE CONNECTION
480
FITTING LINE CONNECTION
570
FITTING LINE CONNECTION
570
SCREW. UNION SCREW LINE CONNECTION
570
SCREW. UNION SCREW , Replaced By: A0009973734
580
SCREW. UNION SCREW LINE CONNECTION
590
THRUST RING CHECK VALVE TO AIR RESERVOIR
590
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
600
O-RING CHECK VALVE TO AIR RESERVOIR
610
NUT CHECK VALVE TO AIR RESERVOIR
620
LOCK RING LINE CONNECTION
620
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
620
SEAL RING , Replaced By: A0009940747
630
LOCK LINE CONNECTION
630
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
630
LOCK , Replaced By: A0009945448
640
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
650
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
650
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
650
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
650
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
660
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
670
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
670
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
670
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
670
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
