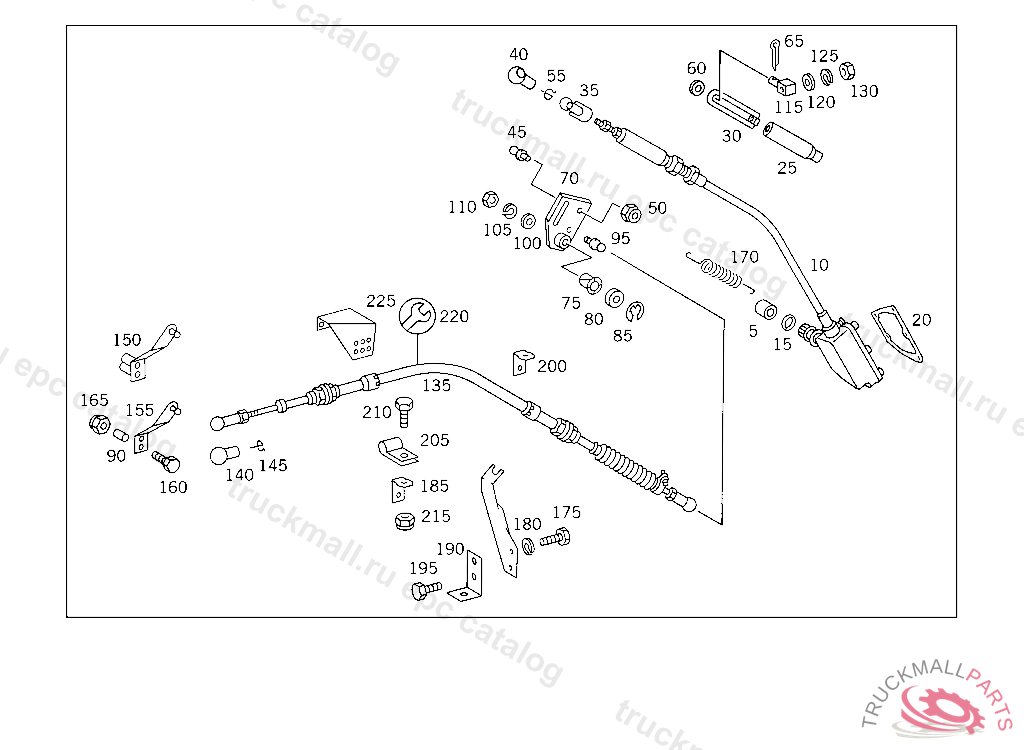

Поз.
Артикул
Описание
5
SPACER TUBE MODULATOR
10
MODULATOR
10
MODULATOR
10
MODULATOR
10
MODULATOR , Replaced By: A0003000762, +001A6153000240
15
SEAL RING
20
GASKET
25
BOOT
30
END PIECE MODULATOR
30
END PIECE MODULATOR
35
BRACKET MODULATOR
40
BALL SOCKET
45
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
45
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
50
NUT , Replaced By: N913004006001
50
NUT PUMP TO BRACKET
55
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
60
WASHER RADIATOR TO RUBBER MOUNTING
65
COTTER PIN CYLINDER TO BRACKET
70
LEVER REAR CONTROL LEVER
75
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
80
COVERING INTERMEDIATE BEARING
85
LOCK PLATE INTERMEDIATE BEARING
90
SPACER TUBE LEVER TO PIVOT PIN
95
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
95
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
100
WASHER COMPRESSED AIR LINE TO BRACKET
100
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
105
LOCK WASHER WIRE CABLE TO LEVER
110
NUT BALL PIVOT TO LEVER
115
PIN MODULATOR TO ENGINE CONTROL SHAFT
120
WASHER COMPRESSED AIR LINE TO BRACKET
120
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
125
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
130
NUT BALL SOCKET TO ROD
135
WIRE CABLE MODULATOR CABLE TO ENGINE
140
BALL SOCKET PULL ROD TO LEVER
145
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
150
LEVER WIRE CABLE TO ENGINE CONTROL LEVER
155
LEVER WIRE CABLE TO ENGINE CONTROL LEVER
160
SCREW LEVER TO ENGINE CONTROL SHAFT
160
SCREW , Replaced By: N910105006023
160
SCREW DISTRIBUTOR TO CAB
165
NUT AT FILTER BRACKET
170
SPRING BOWDEN CABLE TO BRACKET
175
SCREW , Replaced By: N000961012051
175
SCREW BEARING BRACKET TO FRAME
180
LOCK WASHER BRACKET TO SUPPORTING ARM
185
BRACKET CHOKE
190
BRACKET WIRE CABLE TO ENGINE
195
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
195
SCREW , Replaced By: N304017008039
200
ANGLE WIRE CABLE TO ENGINE
205
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
205
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
210
SCREW PUMP TO BRACKET
210
SCREW , Replaced By: N304017006016
215
NUT PUMP TO BRACKET
215
NUT , Replaced By: N913004006001
220
REPAIR KIT WIRE CABLE
225
BRACKET WIRE CABLE TO LEVER ON ENGINE END
