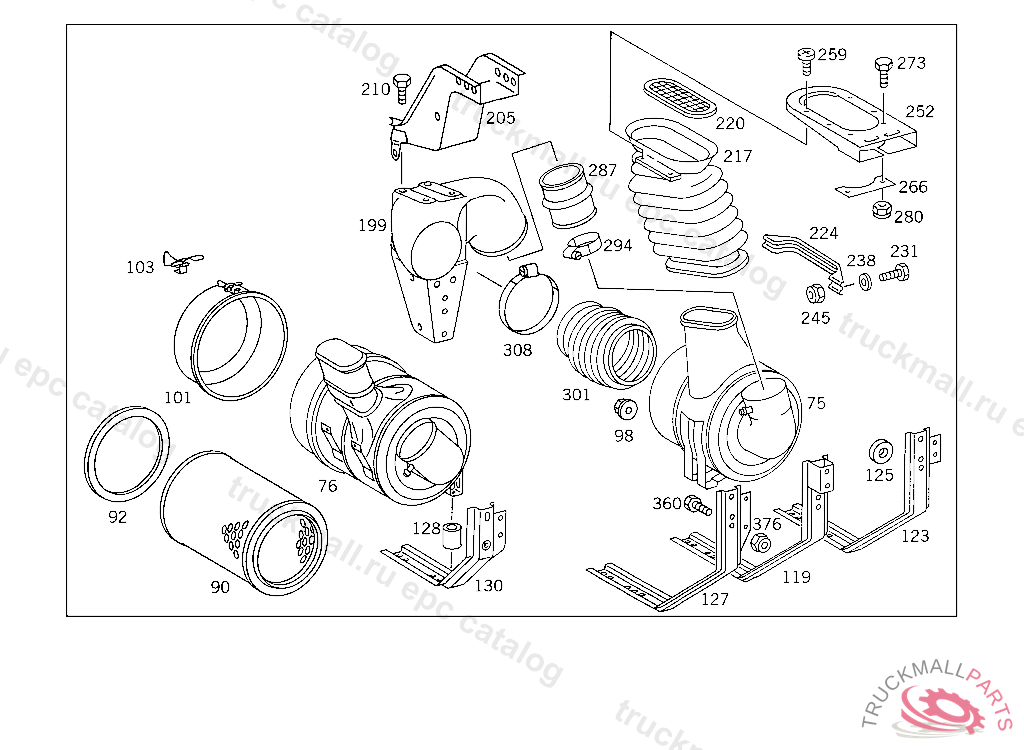

Поз.
Артикул
Описание
75
AIR CLEANERMANN + HUMMEL
75
AIR CLEANERMANN + HUMMEL,5 343252
75
AIR CLEANERMANN + HUMMEL,5 343253
75
AIR CLEANERMANN + HUMMEL
75
AIR CLEANERMANN & HUMMEL
76
AIR CLEANERMANN + HUMMEL
76
AIR CLEANER
76
AIR CLEANER
76
AIR CLEANERMANN + HUMMEL
90
FILTER ELEMENTTO 015 094 83 02
92
GASKET AIR CLEANER BOWL TO 015 094 83 02
98
NUT
98
NUT
101
FILTER BOWL , Replaced By: A0010941603
101
FILTER BOWLTO 015 094 83 02
103
FASTENER
119
SUPPORT AIR CLEANER,FRONT,5 343253
119
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6205200733
119
SUPPORT AIR CLEANER,FRONT
123
SUPPORT AIR INTAKE, TO BE ADAPTED DURING ASSEMBLY
123
SUPPORT , Replaced By: A6555202133
123
SUPPORT AIR CLEANER,REAR,5 343252
123
SUPPORT AIR CLEANER,REAR
125
SHIM COMPRESSED AIR LINE TO ENGINE
125
SHIM , Replaced By: A6455280184
127
SUPPORT AIR CLEANER,REAR
128
SPACER TUBE SUPPORT TO SIDE MEMBER
128
SPACER TUBE , Replaced By: A6559910140
130
SUPPORT , Replaced By: A6555202133
130
SUPPORT AIR INTAKE, TO BE ADAPTED DURING ASSEMBLY
199
CONSOLE CAB SUSPENSION,REAR RIGHT,5 742148
205
CONSOLE CAB SUSPENSION,5 742148
210
SCREW STRUT TO CONSOLE
217
BOOT AIR INTAKE
217
BOOT FROM AIR CLEANER TO INTAKE PIPE
217
BOOT FROM AIR CLEANER TO INTAKE PIPE
220
STRAINER BOOT
224
CLAMP BOOT TO AIR DUCT AND TO AIR CLEANER
231
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
231
SCREW , Replaced By: N304017008027
238
WASHER , Replaced By: N000125008443
238
WASHER EXHAUST MUFFLER TO STRAP
245
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
245
NUT , Replaced By: N913004008001
252
BRACKET , Replaced By: A6575280040
252
BRACKET BOOT
259
SCREW BOOT TO BRACKET
266
BRACKET BOOT
273
SCREW , Replaced By: N304017008034
273
SCREW , Replaced By: N304017008016
273
SCREW BRACKET TO CROSS CONNECTION STRUT
273
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
280
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
280
NUT , Replaced By: N913004008001
287
HOSE AIR INTAKE
294
CLAMP AIR INTAKE
301
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
301
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
301
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
308
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
308
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
308
CLAMP , Replaced By: N000000000678
360
SCREW BRACKET TO CAB CONSOLE,K 035197
376
NUT STEERING SUPPORT TO FRAME
376
NUT , Replaced By: N910113014000
999
EDGE GUARD SECTION , Replaced By: A0029873572
999
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
999
SEAL RING INTAKE PIPE TO AIR CLEANER
999
AIR CLEANER CYCLONE
999
EDGE GUARD SECTION , Replaced By: A0029873572
999
WASHER , Replaced By: A3859900440
999
SPACER TUBE , Replaced By: A6559910140
999
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
999
AIR INTAKE PIPE FROM AIR INTAKE PIPE TO CYCLONE
999
STAY AIR INTAKE PIPE
999
STRAP AIR INTAKE PIPE TO BRACKET
999
STAY AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE
999
CLAMP BRACKET TO AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE
999
PIPE ELBOW (INTAKE PIPE)
999
SUPPORT BOOT
999
SUPPORT AIR INTAKE PIPE
999
SUPPORT AIR INTAKE PIPE
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
CONSOLE CAB SUSPENSION
999
CONSOLE AIR INTAKE CASE
999
CLAMP INTAKE PIPE TO AIR CLEANER
999
LOCKING MECHANISM CAB, RIGHT
999
SUPPORT , Replaced By: A6555202133
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
999
BRACKET AIR CLEANER,FRONT
999
BUFFER ,5 350513
999
LOCKING MECHANISM CAB, RIGHT, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
LEVER COVER
999
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 431572, Replaced By: A6555200067
999
MOUNTING BOW , Replaced By: A6555280344
