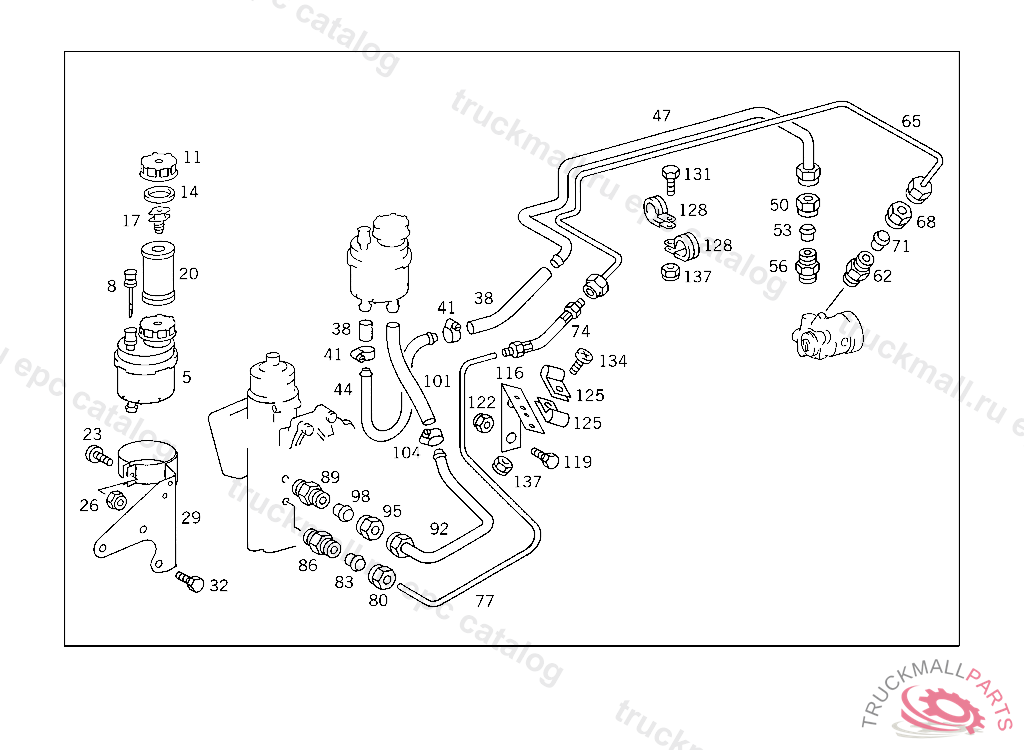

Поз.
Артикул
Описание
5
TANK OIL
5
TANK , Replaced By: A0004666202
8
OIL DIPSTICK , Replaced By: A0004660867
8
OIL DIPSTICK
11
FILLER CAP
11
FILLER CAP , Replaced By: A0004661268
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW OIL TANK TO BRACKET
26
NUT , Replaced By: N913002006009
26
NUT OIL TANK TO BRACKET
29
BRACKET OIL TANK,5 593345
29
BRACKET OIL TANK,5 593345
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
32
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
32
SCREW , Replaced By: N304017010028
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
CLAMP , Replaced By: N000000000667
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE FROM OIL TANK TO HOSE
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
47
LINE FROM PUMP TO HIGH PRESSURE HOSE
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
47
LINE , THE OLD PART MUST NO LONGER BE INSTALLED NOT USED, Replaced By: A6524602524
50
UNION NUT LINE CONNECTION, Replaced By: N000000006243
50
NUT LINE CONNECTION
53
GLAND , Replaced By: A0019901267
53
SEAL CONE LINE CONNECTION
56
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
62
FITTING DELIVERY LINE TO PUMP
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
65
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 073629K 114771
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
65
LINE , THE OLD PART MUST NO LONGER BE INSTALLED NOT USED, Replaced By: A6524602624
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
68
UNION NUT LINE CONNECTION
71
SEAL CONE LINE CONNECTION
71
GLAND , Replaced By: A0019901967
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
77
TUBE FROM HIGH PRESSURE HOSE TO STEERING
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
80
UNION NUT LINE CONNECTION
80
UNION NUT LINE CONNECTION, Replaced By: N000000006239
83
GLAND , Replaced By: A0019901967
83
SEAL CONE LINE CONNECTION
86
FITTING DELIVERY LINE TO PUMP
86
SCREW-IN FITTING DELIVERY LINE TO PUMP
89
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
95
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
101
HOSE DELIVERY LINE TO STEERING
104
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
104
CLAMP HOSE TO FITTING AND TO OIL TANK
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
119
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
119
SCREW , Replaced By: N308676012026
122
NUT SUPPORT TO SIDE MEMBER
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
CLAMP DELIVERY AND SUCTION LINES TO STEERING
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
CLAMP , Replaced By: A6739950001
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
SCREW CAB FLOOR COVERING M 6X25
134
SCREW VALVE TO BRACKET,5 465030
134
SCREW , Replaced By: N000000001149
134
SCREW , Replaced By: A0029903712
134
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
134
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
137
NUT , Replaced By: N913004006001
137
NUT PUMP TO BRACKET
999
PROTECTIVE CAP
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
999
BRACKET OIL TANK
999
BRACKET OIL TANK
999
GASKET ,5 952762
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
