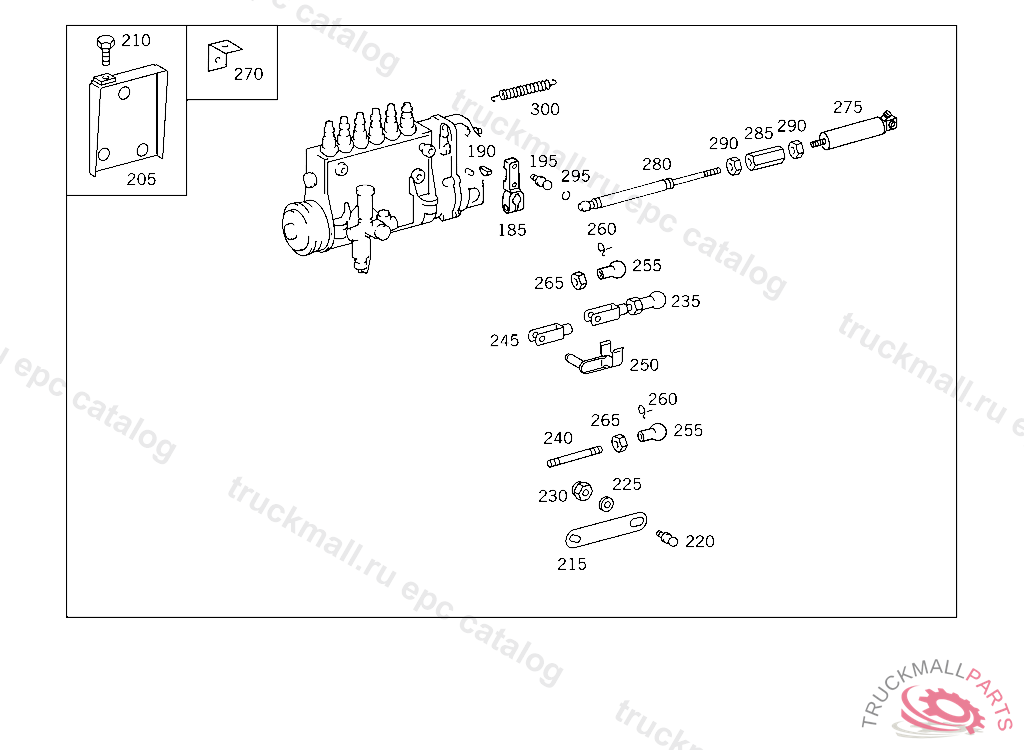

Поз.
Артикул
Описание
185
LEVER LOAD CONTROL
190
WOODRUFF KEY INJECTION PUMP
195
BALL PIVOT INJECTION PUMP
205
BRACKET ACTUATOR MOTOR ON AIR COMPRESSOR BRACKET
205
BRACKET ACTUATOR MOTOR ON AIR COMPRESSOR BRACKET
205
BRACKET ACTUATOR MOTOR ON AIR COMPRESSOR BRACKET
205
BRACKET ACTUATOR MOTOR ON AIR COMPRESSOR BRACKET
210
SCREW ACTUATOR MOTOR ON AIR COMPRESSOR BRACKET
215
LEVER E-GAS FINAL CONTROL ELEMENT
215
LEVER SERVOMOTOR
215
LEVER SERVOMOTOR
220
BALL STUD. BALL PIVOT TOP B10X4,5 MM
220
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
220
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
225
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
230
NUT PUMP TO BRACKET
230
NUT , Replaced By: N913004006001
235
ROD SERVOMOTOR
240
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
240
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
245
YOKE OPERATING ROD TO BRACKET
250
PIN OPERATING ROD TO BRACKET
255
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
255
BALL SOCKET PULL ROD TO LEVER
260
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
265
NUT BALL SOCKET TO ROD
265
NUT SPRING-LOADED PUSH ROD
270
ANGLE LINE MOUNTING
275
CYLINDER SHUT-OFF CYLINDER
280
ROD ACCELERATOR PEDAL TO LEVER
285
THREADED UNION OPERATING ROD
290
NUT SHUT-OFF CYLINDER
295
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
300
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
999
BRACKET MODULATOR
999
BRACKET ACTUATOR MOTOR ON AIR COMPRESSOR BRACKET
999
LEVER INJECTION PUMP
999
LEVER INJECTION PUMP
999
BRACKET RELEASE SPRING
999
MOTOR , Replaced By: A6995450165, +001A6995403681
999
MOTOR ELECTRONIC ACCELERATOR
999
BUSHING BRACKET TO SIDE MEMBER
999
GROMMET ELECTRONIC ACCELERATOR
