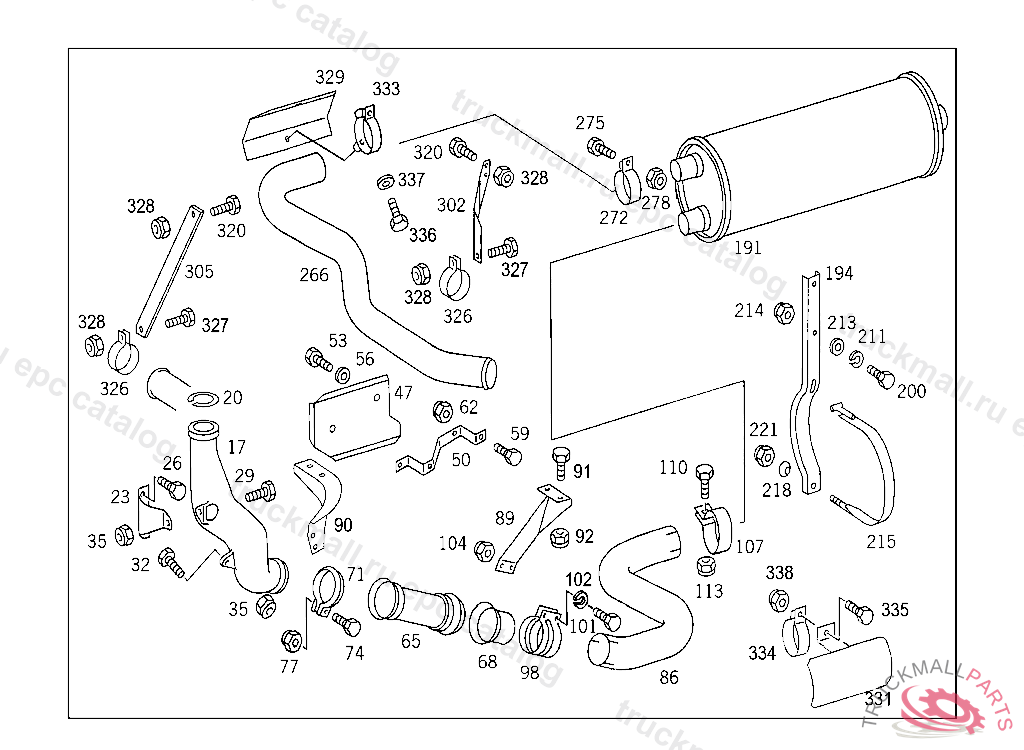

Поз.
Артикул
Описание
17
FRONT EXHAUST PIPE
20
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
23
BRACKET FRONT EXHAUST PIPE TO TIMING CASE,TOP
26
SCREWM 16X25
29
SCREW SUPPORT TO CROSS MEMBER M 10X28
32
SCREW END PIECE TO EXHAUST PIPE M 10X25
35
NUT STRAP TO BRACKET
47
PROTECTIVE PLATE TAIL PIPE
50
BRACKET PROTECTIVE PLATE TO EXHAUST PIPE
53
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
56
WASHER EXHAUST MUFFLER TO STRAP
59
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
62
NUT SUPPORT TO SIDE MEMBER
65
FLEXIBLE METAL TUBE FRONT LEFT
68
COLLAR (SLIDING COLLAR)
71
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
74
SCREW SUPPORT TO FENDER
74
SCREW , Replaced By: N304017008018
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
77
NUT , Replaced By: N913004008001
77
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
86
EXHAUST PIPE FRONT,REAR PART
86
EXHAUST PIPE FRONT
86
EXHAUST PIPE FRONT
89
BRACKET FRONT EXHAUST PIPE,LEFT
89
BRACKET AT SIDE MEMBER
91
HEXAGON HEAD BOLT , Replaced By: A0029902704
91
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
91
SCREW , Replaced By: N308676012013
92
NUT , Replaced By: N910113012003
92
NUT , Replaced By: N910113014001
92
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
92
NUT BRACKET TO SIDE MEMBER
98
CLAMP EXHAUST PIPE TO BRACKET
101
SCREW EXHAUST PIPE TO BRACKET
101
SCREW END PIECE TO EXHAUST PIPE M 10X25
101
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
102
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
104
NUT STRAP TO BRACKET
104
NUT , Replaced By: N910113010000
107
CLAMP , Replaced By: N071555100501
107
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
107
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
110
SCREW BRACKET TO SIDE MEMBER
113
NUT STRAP TO BRACKET
113
NUT , Replaced By: N910113010000
191
EXHAUST MUFFLER
194
BRACKET FRONT AND REAR EXHAUST MUFFLERS,5 765950
194
BRACKET EXHAUST MUFFLER TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
194
BRACKET , Replaced By: A6524910741
194
BRACKET ,5 765950, Replaced By: A6174911841
200
SCREW , Replaced By: N308676014020
200
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
214
NUT BRACKET TO SIDE MEMBER
214
NUT , Replaced By: N910113014001
215
STRAP , Replaced By: A6174900142
215
STRAP EXHAUST MUFFLER TO BRACKET
218
SPHERICAL WASHER STRAP TO BRACKET
221
NUT STRAP TO BRACKET
221
NUT , Replaced By: N910113010000
266
END PIECE (TAIL PIPE),5 758826
266
END PIECE TAIL PIPE,FRONT,K 027550
266
END PIECE (TAIL PIPE),5 5975185 758825
266
END PIECE (TAIL PIPE),5 5975185 758825
266
END PIECE (TAIL PIPE),5 597517
266
END PIECE TAIL PIPE TO EXHAUST MUFFLER,K 027551
266
END PIECE (TAIL PIPE),5 597517
266
END PIECE TAIL PIPE ON THE RIGHT
272
CLAMP EXHAUST PIPE TO BRACKET
275
SCREW BRACKET TO SIDE MEMBER
278
NUT STRAP TO BRACKET
278
NUT , Replaced By: N910113010000
302
BRACKET TAIL PIPE TO SIDE MEMBER,5 702526
305
BRACKET TAIL PIPE TO SIDE MEMBER
320
SCREW BRACKET TO SIDE MEMBER
326
CLAMP EXHAUST PIPE
326
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
326
CLAMP , Replaced By: N071555100501
327
SCREW , Replaced By: N304017010051
327
SCREW END PIECE TO EXHAUST PIPE M 10X25
327
SCREW
328
NUT STRAP TO BRACKET
328
NUT , Replaced By: N910113010000
331
PROTECTIVE PLATE FUEL TANK
334
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
334
CLAMP , Replaced By: N071555100501
335
SCREW , Replaced By: N304017010002
335
SCREW BRACKET TO SIDE MEMBER
337
WASHER EXHAUST MUFFLER TO STRAP
337
WASHER , Replaced By: N000125008443
338
NUT , Replaced By: N910113010000
338
NUT STRAP TO BRACKET
999
CLAMP REAR EXHAUST PIPE TO MUFFLER
