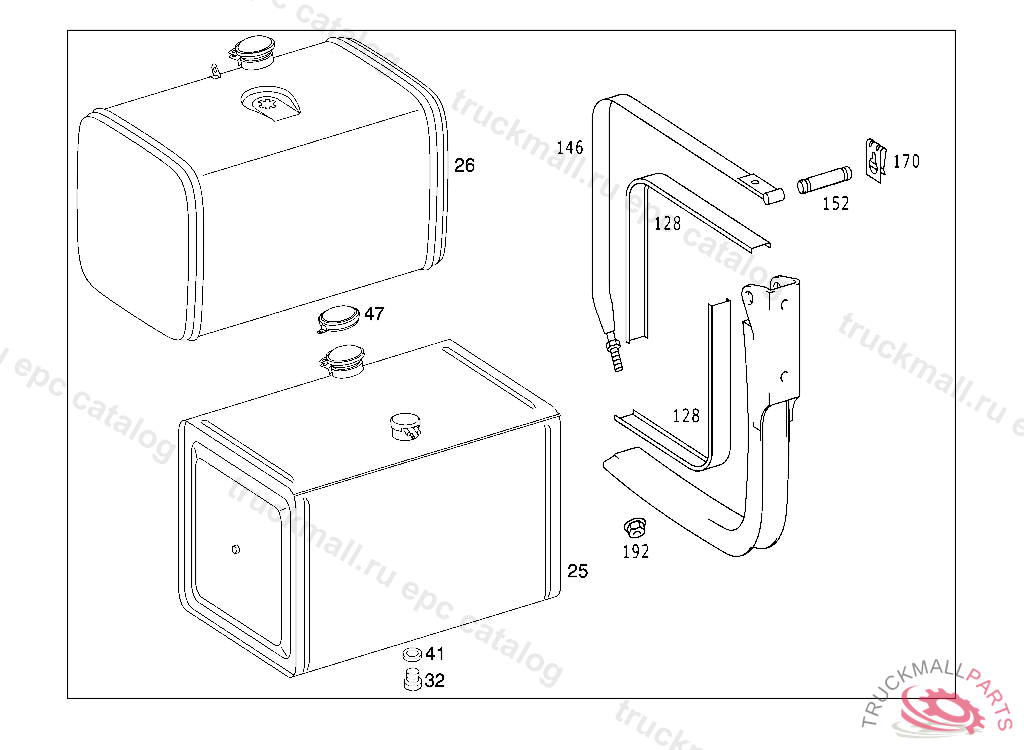

Поз.
Артикул
Описание
25
FUEL TANK STEEL VERSION 300 L
26
FUEL TANK STEEL VERSION 300 L, TO BE ADAPTED DURING ASSEMBLY
26
FUEL TANK , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9414700201
26
FUEL TANK STEEL VERSION 300 L, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9414701101
32
SCREW PLUG FUEL TANK
41
SEAL RING FUEL LINE TO FEED PUMP
41
SEALING RING. SEAL RING FUEL TANK
47
FILLER CAP NON-KEY LOCKING
128
PAD FUEL TANK TO CONSOLE
128
PAD BRAKE ANCHOR 53 MM
128
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
128
PAD TANK TO CONSOLES
128
PAD , Replaced By: A9414751620
128
PAD , Replaced By: A9414751720
128
PAD STRAP 61 MM
128
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
128
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
146
STRAP FUEL TANK TO CONSOLE
152
PIN STRAP TO SUPPORT
152
PIN , Replaced By: A9444750074
170
CLIP STRAP TO SUPPORT
192
NUT STRAP TO SUPPORT
