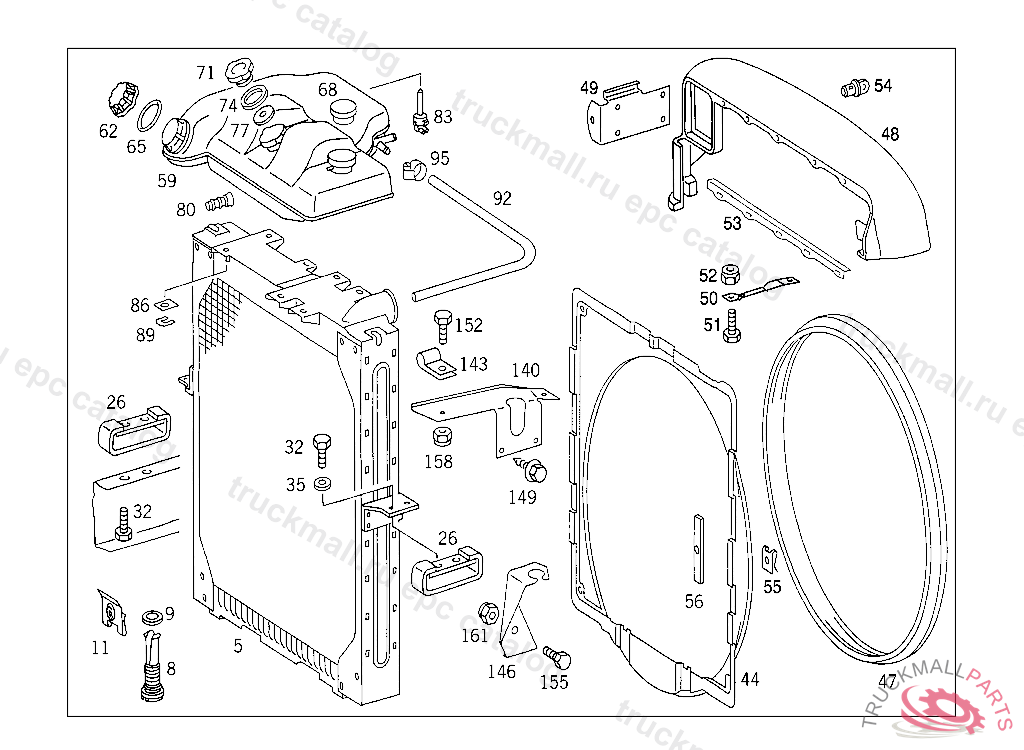

Поз.
Артикул
Описание
5
RADIATOR WITH SCREW FITTING
5
RADIATOR , Replaced By: A6525014201
5
RADIATOR , Replaced By: A6525014201
5
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 752618, Replaced By: A6525012501
8
SCREW , Replaced By: A0005000085
8
SCREW WATER DRAIN
9
GASKET COOLING WATER DRAIN TO 656 500 00 03
11
LOCK
26
RUBBER MOUNTING RADIATOR
32
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
32
SCREW , Replaced By: N304017010028
35
WASHER , Replaced By: N000125010532
35
WASHER RADIATOR TO RUBBER MOUNTING
44
FAN SHROUD RADIATOR
47
BOOT FAN SHROUD TO FAN RING
48
BOOT (SEALING LIP)
49
BRACKET SEALING LIP TO RADIATOR
50
BRACKET SEALING LIP TO OIL DIPSTICK BRACKET
50
BRACKET SEALING LIP TO OIL DIPSTICK BRACKET
51
SCREW , Replaced By: N304017008016
51
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
52
NUT , Replaced By: N913004008001
52
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
52
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
BRACKET SEALING LIP TO EXPANSION TANK
54
PIN SEALING LIP TO EXPANSION TANK
55
LOCK , Replaced By: N912002008003
55
LOCK PULL TO FASTENER
56
DETENT FAN SHROUD TO RADIATOR
59
TANK COOLING WATER EXPANSION
62
RADIATOR CAP FILLER NECK
62
RADIATOR CAP , Replaced By: A0005016415
65
SEAL RING
68
RADIATOR CAP
71
RADIATOR CAP CENTRAL
71
RADIATOR CAP CENTRAL
74
GASKET O.D., 52 MM
77
GASKET O.D., 37 MM
80
DRAIN PIPE
83
SENDER UNIT COOLING WATER LEVEL INDICATOR
86
PLATE FROM EXPANSION TANK TO RADIATOR
86
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
89
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
92
HOSE FROM EXPANSION TANK TO ENGINE
92
HOSE , Replaced By: A6565010382
95
CLAMP , Replaced By: N916017011001
95
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
140
BRACKET OIL DIPSTICK GUIDE TUBE
143
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
143
CLAMP , Replaced By: A3609951201
146
BRACKET OIL DIPSTICK GUIDE TUBE
149
SCREW DE-AERATION LINE TO RADIATOR
149
SCREW , Replaced By: A6739900032
152
SCREW , Replaced By: N304017008016
152
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
155
SCREW COVER PLATE TO BRACKET
158
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
158
NUT , Replaced By: N913004008001
158
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
161
NUT , Replaced By: N913004006001
161
NUT PUMP TO BRACKET
999
RADIATOR , FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHE, Replaced By: A6525016601, +001A6552602262, +001A6552602985, +001A6552603085, +001A6559974182, +001A6559974682
