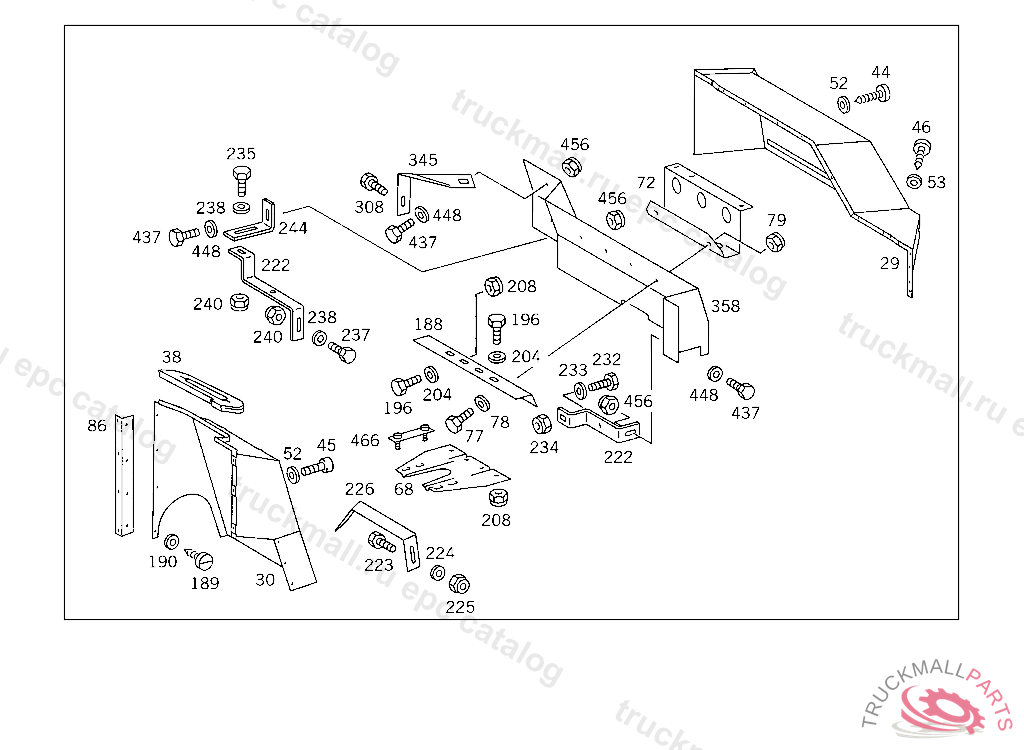

Поз.
Артикул
Описание
29
COVERING CHASSIS
30
COVERING CHASSIS
30
COVERING CHASSIS
38
BOOT CROSS CONNECTION
38
BOOT CROSS CONNECTION
38
BOOT CROSS CONNECTION
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
45
SCREW CLAMP MOUNTING M 6X16
45
SCREW CLAMP MOUNTING M 6X16
45
SCREW , Replaced By: N000000001146
45
SCREW COVERING TO CAB
46
SHEET METAL SCREW COVER PLATE TO COVER PLATE
46
SHEET METAL SCREW COVER PLATE TO COVER PLATE
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COVERING TO CAB
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
WASHER COVERING TO CAB
53
WASHER COVER PLATE TO COVER PLATE
68
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 099117, Replaced By: A6205244740
68
BRACKET , Replaced By: A6205234740
68
BRACKET COVERING
68
BRACKET CROSS CONNECTION
68
BRACKET COVERING
68
BRACKET CROSS CONNECTION
68
BRACKET COVERING
68
BRACKET CROSS CONNECTION
68
BRACKET CROSS CONNECTION
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
72
BRACKET CROSS CONNECTION
72
BRACKET CROSS CONNECTION
77
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
77
SCREW END PIECE TO EXHAUST PIPE M 10X25
78
WASHER BRACKET TO COVERING
78
WASHER , Replaced By: N009021010209
78
WASHER RADIATOR TO RUBBER MOUNTING
78
WASHER , Replaced By: N000125010532
79
NUT STRAP TO BRACKET
79
NUT STRAP TO BRACKET
79
NUT , Replaced By: N910113010000
86
MOUNTING ANGLE COVERING
188
MOUNTING ANGLE BRACKET TO MOUNTING ANGLE
188
MOUNTING ANGLE COVERING
188
MOUNTING ANGLE BRACKET TO MOUNTING ANGLE
189
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
189
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
189
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
190
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
190
WASHER COMPRESSED AIR LINE TO BRACKET
190
WASHER COMPRESSED AIR LINE TO BRACKET
190
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
190
WASHER COMPRESSED AIR LINE TO BRACKET
196
SCREW , Replaced By: N304017008021
196
SCREW PIPE CLAMP
196
SCREW PIPE CLAMP
196
SCREW PIPE CLAMP
196
SCREW PIPE CLAMP
204
WASHER , Replaced By: N000125008443
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER , Replaced By: N009021008213
204
WASHER BRACKET TO LEFT SIDE MEMBER
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER BRACKET TO LEFT SIDE MEMBER
208
NUT , Replaced By: N913004008001
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
222
BRACKET LEFT
222
BRACKET LEFT
222
BRACKET LEFT
223
SCREW BRACKET TO CAB MOUNTING CONSOLE
224
WASHER , Replaced By: N000125015019
224
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
225
NUT BRACKET TO SIDE MEMBER
226
BRACKET CAB SUSPENSION
232
SCREW END PIECE TO EXHAUST PIPE M 10X25
232
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
232
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
232
SCREW , Replaced By: N308676012026
232
SCREW CONSOLE TO SIDE MEMBER
233
WASHER RADIATOR TO RUBBER MOUNTING
233
WASHER , Replaced By: N000125010532
233
WASHER
234
NUT STRAP TO BRACKET
234
NUT , Replaced By: N910113010000
234
NUT SUPPORT TO SIDE MEMBER
235
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
235
SCREW , Replaced By: N304017008016
235
SCREW BRACKET TO CROSS CONNECTION STRUT
235
SCREW BRACKET TO CROSS CONNECTION STRUT
235
SCREW , Replaced By: N304017008034
235
SCREW PIPE CLAMP
235
SCREW , Replaced By: N304017008021
237
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
237
SCREW , Replaced By: N304017008016
238
WASHER EXHAUST MUFFLER TO STRAP
238
WASHER EXHAUST MUFFLER TO STRAP
238
WASHER BRACKET TO LEFT SIDE MEMBER
238
WASHER BRACKET TO LEFT SIDE MEMBER
238
WASHER , Replaced By: N009021008213
238
WASHER EXHAUST MUFFLER TO STRAP
238
WASHER , Replaced By: N000125008443
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT , Replaced By: N913004008001
244
BRACKET FUEL LINES TO TRANSMISSION
244
BRACKET COVERING
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6555240040
244
BRACKET COVERING,5 736351
244
BRACKET FUEL LINES TO TRANSMISSION
244
BRACKET FUEL LINES TO TRANSMISSION
244
BRACKET , Replaced By: A6735460243
244
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
244
BRACKET LEFT
244
BRACKET COVERING
244
BRACKET FUEL LINES TO TRANSMISSION
244
BRACKET , Replaced By: A6205240340
308
SCREW BRACKET TO SIDE MEMBER
308
SCREW , Replaced By: N304017010002
308
SCREW REAR EXHAUST PIPE TO MUFFLER
308
SCREW REAR EXHAUST PIPE TO MUFFLER
308
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
308
SCREW EXHAUST PIPE TO BRACKET
308
SCREW REAR EXHAUST PIPE TO MUFFLER
345
BRACKET COVERING
345
BRACKET MANUAL PUMP
345
BRACKET COVERING,5 422856
345
BRACKET MANUAL PUMP
358
COVERING CHASSIS
437
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
437
SCREW , Replaced By: N304017008016
448
WASHER EXHAUST MUFFLER TO STRAP
448
WASHER , Replaced By: N000125008443
456
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
456
NUT , Replaced By: N913004008001
456
NUT COVERING TO BRACKET
456
NUT , Replaced By: N910113008007
466
BRACKET STRUT TO CROSS MEMBER
999
BRACKET CABLE HARNESS MOUNTING
999
BRACKET BOOT
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
FLAP CHASSIS
999
BRACKET HAND PUMP
999
COVERING CHASSIS
999
COVERING CHASSIS,5 736351
999
ANGLE RIGHT
999
SUPPORT BRAKE LINE COUPLINGS
999
ANGLE LEFT
999
BRACKET RIGHT
999
BRACKET LEFT
999
COVERING CHASSIS
999
BRACKET COVERING
999
BRACKET RIGHT,5 385158
999
BRACKET LEFT
999
BRACKET MANUAL PUMP
999
SUPPORT , Replaced By: A6214320116
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
999
SUPPORT , Replaced By: A3874320916
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
RUBBER BUFFER , NOT USED
