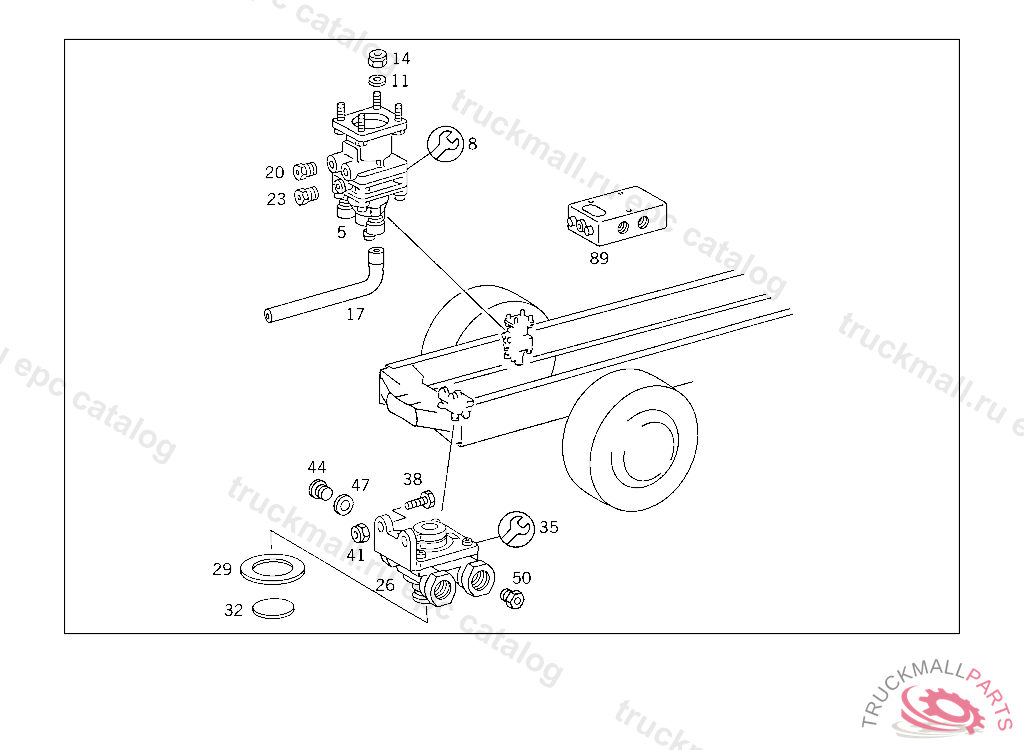

Поз.
Артикул
Описание
5
BRAKE VALVE (SERVICE BRAKE VALVE) GRAU
5
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
5
BRAKE VALVE (SERVICE BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT SERVICE BRAKE VALVE BOSCH
8
REPAIR KIT SERVICE BRAKE VALVE WABCO
8
REPAIR KIT , Replaced By: A0004308506
11
WASHER EXHAUST MUFFLER TO STRAP
11
WASHER , Replaced By: N000125008443
14
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
14
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
14
NUT , Replaced By: N913004008001
17
HOSE BRAKE VALVE,CONNECTION: "30"
20
SCREW. UNION SCREW LINE CONNECTION
23
SCREW. UNION SCREW LINE CONNECTION
23
SCREW. UNION SCREW , Replaced By: A0009973734
26
VALVE (QUICK-RELEASE VALVE) WABCO
26
VALVE (QUICK-RELEASE VALVE) WABCO
26
VALVE (QUICK-RELEASE VALVE) WABCO
29
SEAL RINGWABCO
32
DIAPHRAGMWABCO
35
REPAIR KIT QUICK-RELEASE VALVE WABCO, TO 004 429 23 44/25 44
38
SCREW BRACKET TO CROSS CONNECTION STRUT
38
SCREW , Replaced By: N304017008034
41
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
NUT , Replaced By: N913004008001
44
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
47
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
SCREW. UNION SCREW LINE CONNECTION
