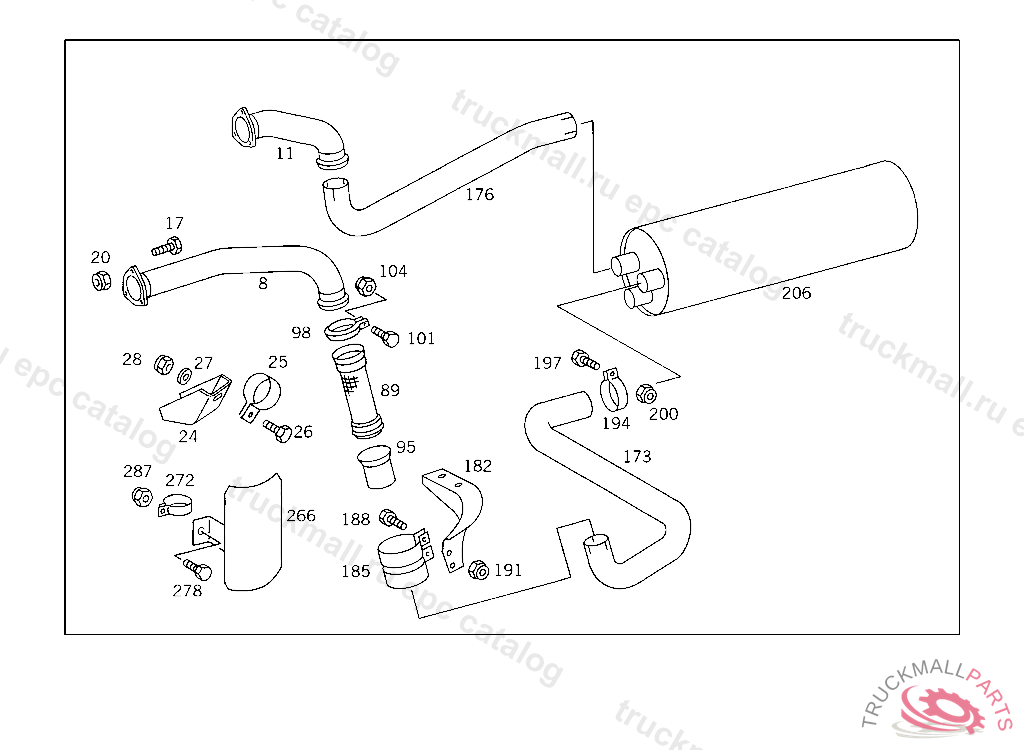

Поз.
Артикул
Описание
98
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
101
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
101
SCREW , Replaced By: N304017008028
104
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
NUT , Replaced By: N913004008001
185
CLAMP EXHAUST PIPE TO BRACKET
188
SCREW END PIECE TO EXHAUST PIPE M 10X25
188
SCREW EXHAUST PIPE TO BRACKET
191
NUT STRAP TO BRACKET
191
NUT STRAP TO BRACKET
194
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
194
CLAMP , Replaced By: N071555100501
194
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
197
SCREW BRACKET TO SIDE MEMBER
197
SCREW , Replaced By: N304017010002
200
NUT STRAP TO BRACKET
200
NUT , Replaced By: N910113010000
266
PROTECTIVE PLATE FUEL TANK
272
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
272
CLAMP , Replaced By: N071555100501
278
SCREW BRACKET TO SIDE MEMBER
287
NUT STRAP TO BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER,5 702526
