Главная
Mercedes
TRUCK
2433 L,2534 L
653.461
30 CONTROL

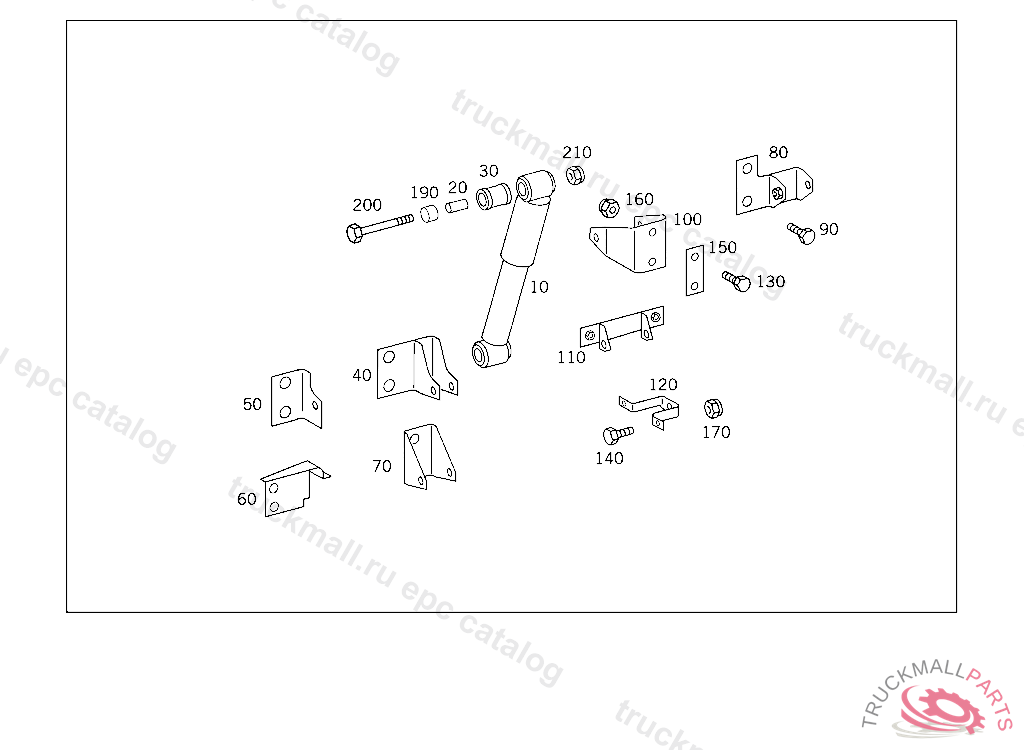

001 CAB MOUNTING IL.7

Mercedes N000961012208 - Болт М12

2433 L,2534 L 653.461

30 CONTROL - 001 CAB MOUNTING IL.7

Поз.
Артикул
Описание
10
A0002402348
ENGINE VIBRATION ABSORBER VIBRATION ABSORBER
10
A3012400048
ENGINE VIBRATION ABSORBER , Replaced By: A0002402348
20
A0002410150
BUSHING
30
A0003234385
RUBBER MOUNTINGFICHTEL&SACHS
40
A6554301510
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM LEFT
40
A6554301510
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM LEFT
50
A6554320440
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM LEFT,K 028108
60
A6554302410
BRACKET RIGHT COMPRESSED AIR LINES
70
A6554372040
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM RIGHT
70
A6554301810
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM RIGHT
70
A6554371140
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM LEFT
80
A6554303610
BRACKET AT APPARATUS SUPPORT
90
N308676016020
SCREW CONSOLE TO FRAME
90
N000961016075
SCREW , Replaced By: N308676016020
90
N308676016022
SCREW BEARING BRACKET TO SIDE MEMBER
100
A6554371940
BRACKET VIBRATION ABSORBER TO FRAME
110
A6554302210
BRACKET VIBRATION ABSORBER
120
A6554373140
BRACKET VIBRATION ABSORBER
130
N000961012122
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
140
N304017008021
SCREW PIPE CLAMP
140
N000933008147
SCREW , Replaced By: N304017008021
140
N000933010105
SCREW END PIECE TO EXHAUST PIPE M 10X25
150
A6523120484
SHIM BRACKET TO FRAME
160
N910113012002
NUT SUPPORT TO SIDE MEMBER
170
N910113010000
NUT STRAP TO BRACKET
170
N913004010008
NUT , Replaced By: N910113010000
190
A4070720353
SPACER TUBE VIBRATION ABSORBER TO BRACKET
190
A3520721153
SPACER TUBE , Replaced By: A4070720353
190
A4070720353
SPACER TUBE VIBRATION ABSORBER TO BRACKET
190
A3520721053
SPACER TUBE , Replaced By: A4070720353
190
A4070720353
SPACER TUBE VIBRATION ABSORBER TO BRACKET
190
A3520721353
SPACER TUBE , Replaced By: A4070720353
190
A4070720353
SPACER TUBE VIBRATION ABSORBER TO BRACKET
190
A3210720053
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
190
A3520721253
SPACER TUBE , Replaced By: A3210720053
190
A3210720053
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
190
A3520720953
SPACER TUBE , Replaced By: A3210720053
190
A3210720053
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
190
A3520720753
SPACER TUBE , Replaced By: A3210720053
190
A3210720053
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
190
A3520720853
SPACER TUBE , Replaced By: A3210720053
200
N000960012384
SCREW STRUT TO SIDE MEMBER M 12X55
200
N000960012197
SCREW , Replaced By: N000960012384
200
N000960012353
SCREW TORSION BAR TO SHACKLE,5 903514
200
N308676012018
SCREW STRUT TO FRAME M 12X62
200
N000960012199
SCREW , Replaced By: N308676012018
200
N000961012208
SCREW BRACKET TO CONSOLE
200
N000960012224
SCREW , Replaced By: N000961012208
200
N000960012221
SCREW VIBRATION ABSORBER TO BRACKET
200
N000960012184
SCREW TORSION BAR TO SHACKLE M 12X85,5 255315
200
N000960012332
SCREW LEAF SPRING TO STRUT, USED WITH MEDIUM-LENGTH AND LONG MERCEDES-BENZ CABS
210
N000439012204
NUT VIBRATION ABSORBER TO BRACKET
210
N910113012002
NUT SUPPORT TO SIDE MEMBER
