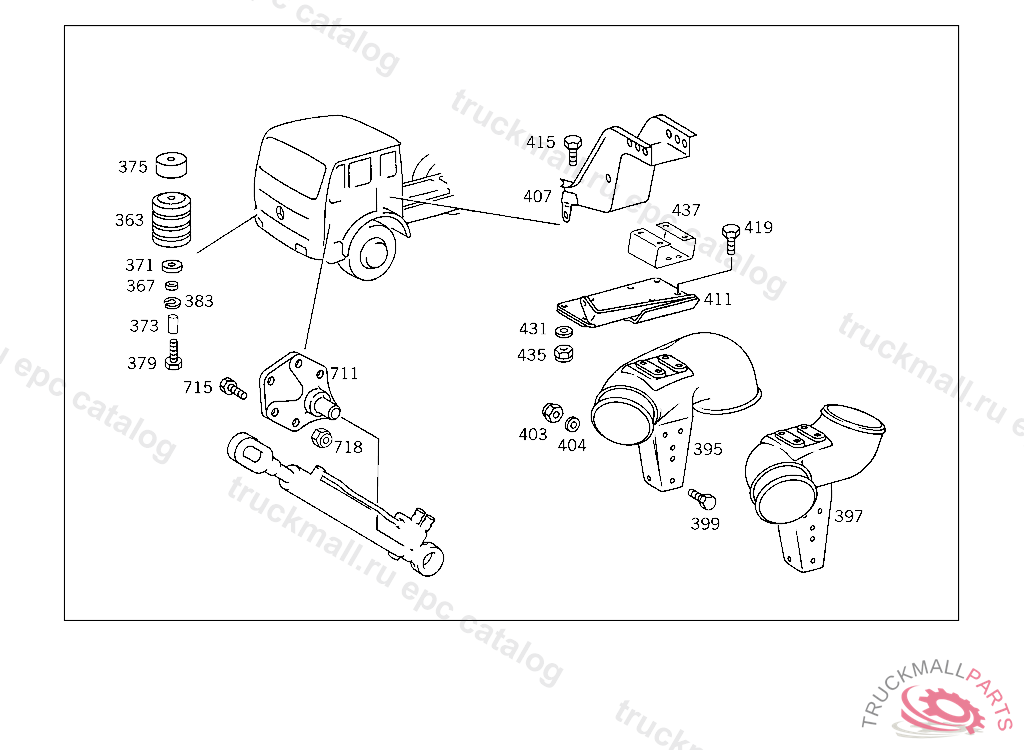

Поз.
Артикул
Описание
363
BUFFER (HOLLOW RUBBER SPRING),CAB
367
BUSHING HOLLOW RUBBER SPRING
371
FLANGE HOLLOW RUBBER SPRING
373
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
373
SPACER TUBE HOLLOW RUBBER SPRING,5 956657
375
WASHER , Replaced By: A4432610076
375
WASHER HOLLOW RUBBER SPRING,5 956657
375
WASHER HOLLOW RUBBER SPRING TO CAB,5 956657
375
WASHER HOLLOW RUBBER SPRING
379
SCREW BRACKET TO SIDE MEMBER
379
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
379
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
379
SCREW HOLLOW RUBBER SPRING TO CAB,5 956658
379
SCREW , Replaced By: N304017010049
379
SCREW , Replaced By: N910105010012
379
SCREW , Replaced By: N304017010002
383
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
395
CONSOLE CAB SUSPENSION,REAR RIGHT
395
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
395
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
395
CONSOLE CAB SUSPENSION,REAR RIGHT,5 742148
395
CONSOLE CAB SUSPENSION,REAR RIGHT
395
CONSOLE CAB SUSPENSION,REAR RIGHT
397
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
397
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
399
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
399
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
399
SCREW SUPPORT TO SIDE MEMBER M14X40
399
SCREW , Replaced By: N308676014020
403
NUT , Replaced By: N910113014001
403
NUT BRACKET TO SIDE MEMBER
403
NUT BRACKET TO SIDE MEMBER
404
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
404
WASHER SPARE WHEEL CARRIER
404
WASHER , Replaced By: N000125015019
407
CONSOLE CAB SUSPENSION,5 742148
407
CONSOLE CAB SUSPENSION,REAR
407
CONSOLE ADDITIONAL WORK ON FRAME
411
CONSOLE CAB SUSPENSION,REAR RIGHT
415
SCREW CONSOLE TO SIDE MEMBER
419
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
419
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
419
SCREW CONSOLE TO CONSOLE
419
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
419
SCREW EXHAUST PIPE TO BRACKET
419
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
419
SCREW STRUT TO CONSOLE
419
SCREW , Replaced By: N308676012012
419
SCREW , Replaced By: N308676012026
431
WASHER , Replaced By: N007349013005
431
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
431
WASHER SPARE WHEEL CARRIER
435
NUT SUPPORT TO SIDE MEMBER
437
CLAMP CAB SUSPENSION
437
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 024568
711
BEARING BRACKET HYDRAULIC CYLINDER
711
BEARING BRACKET , Replaced By: A6205531738
711
BEARING BRACKET , Replaced By: A6555530238
711
BEARING BRACKET , Replaced By: A6205531738
715
SCREW , Replaced By: N308676016013
715
SCREW SHACKLE TO CONSOLE
715
SCREW MOUNTING, TORSION BAR, ON SIDE MEMBER
715
SCREW BRACKET TO SUPPORT
715
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
715
SCREW BEARING BRACKET TO SIDE MEMBER
715
SCREW BEARING BRACKET TO SIDE MEMBER M 12X50
715
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
715
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X50
715
SCREW GUSSET PLATE TO FRAME M 16X35
718
NUT COMBINATION CYLINDER TO BEARING BRACKET
718
NUT CONSOLE TO SUPPORT
718
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
718
NUT , Replaced By: N910113016001
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
CLAMPING SLEEVE CAB LOCKING MECHANISM
999
SCREW RETARDER HOUSING TO TRANSMISSION CASE M 18X1.5X120
999
SCREW , Replaced By: N304017008034
999
WASHER
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
MOUNTING CAB, RIGHT
999
BRACKET LATERAL GUIDE OF CAB
999
MOUNTING LEFT VIBRATION ABSORBER
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
STOP LATERAL GUIDE OF CAB
999
WASHER CONSOLE TO FRAME
999
HEXAGON HEAD BOLT. SCREW BEARING MOUNTING M 12 X 1,5 X 80
999
SCREW CLAMP TO CONSOLE
999
SCREW , Replaced By: N910105010023
999
NUT BRACKET TO CROSS MEMBER
