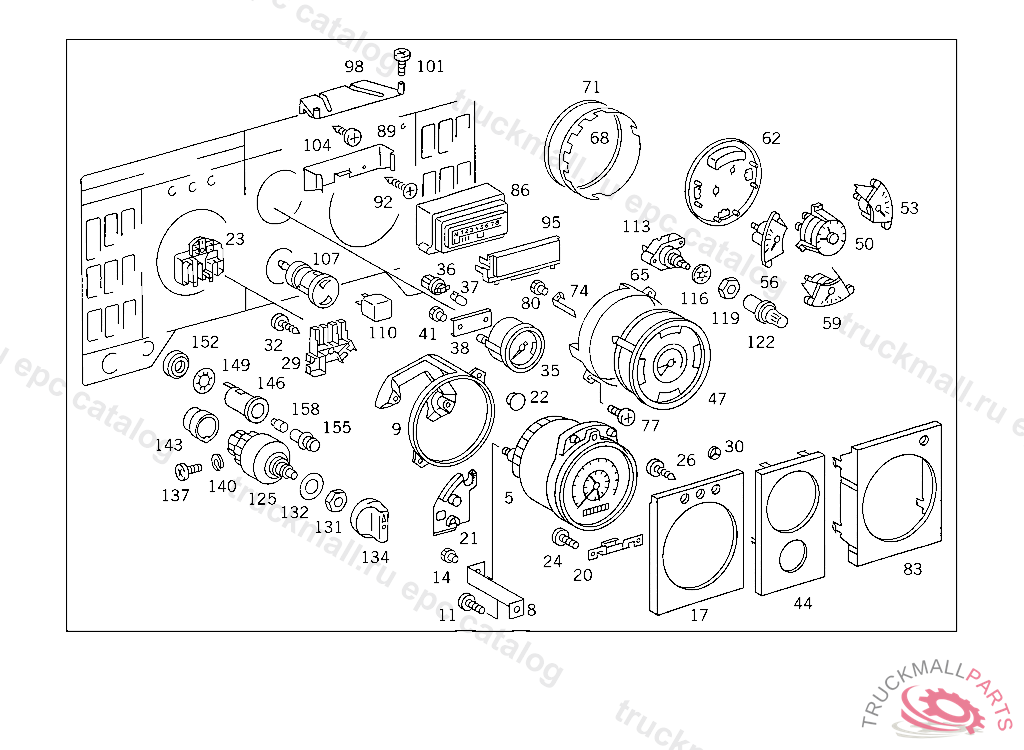

Поз.
Артикул
Описание
5
TACHOGRAPH MEASURING RANGE: 125 KM/H
5
TACHOGRAPH , ON INSTALLATION OF SA 46817,PLEASE REFER TO SETTING VALUE UP TO IDENT NO. K 074702 EXCEPT FOR K 062141, Replaced By: A0115423710
5
TACHOGRAPH MEASURING RANGE,125KM/H, ONE-DAY/DRIVER'S CHANGE REGISTRATION, FROM IDENT NO. K 074703ALSO INSTALLED ON K 062141
8
BRACKET TACHOGRAFH TO INSTRUMENT PANEL, UP TO IDENT NO. K 074702 EXCEPT FOR K 062141
9
BRACKET TACHOGRAFH TO INSTRUMENT PANEL
11
SCREW STEP SWITCH AM 5X10
17
COVERING TACHOGRAPH, .......INO.9051I.......I I II TYPE 650-659
20
BRACKET COVERING, FROM IDENT NO. K 074703ALSO INSTALLED ON K 062141
21
COVERING TACHOGRAPH LEAD SEALING
22
COVERING TACHOGRAPH
23
CAP TACHOGRAPH LEAD SEALING,K 152381
23
CAP TACHOGRAPH LEAD SEALING
24
SCREW BRACKET TO COVERING, UP TO IDENT NO. K 074702 EXCEPT FOR K 062141
26
SHEET METAL SCREW COVERING TO TACHOGAPH, UP TO IDENT NO. K 074702 EXCEPT FOR K 062141
29
PROTECTIVE PLATE TACHOGRAPH, FROM IDENT NO. K 074703ALSO INSTALLED ON K 062141
30
BLIND CAP TACHOGRAPH LEAD SEALING
32
SHEET METAL SCREW SETSCREW LEAD-SEALING IN TACHOGRAPH
35
TACHOMETER
35
TACHOMETER ELECTRONIC,5 959117
36
SOCKETTO 003 542 46 16,99 16
37
BULB TACHOMETER
38
BRACKET SPEEDOMETER, NOT USED
38
BRACKET TACHOMETER TO INSTRUMENT PANEL
41
NUT TACHOMETER TO INSTRUMENT PANEL
41
NUT TACHOMETER TO INSTRUMENT PANEL
44
COVERING TACHOMETER, NO.9051I.......I.......I.......I.......I....... I I
47
INSTRUMENT CLUSTER
50
AIR PRESSURE GAUGE
53
TEMPERATURE GAUGE
56
OIL PRESSURE GAUGE
59
FUEL GAUGE DASH UNIT
62
CONNECTION PLATE
68
SPACER RING INSTRUMENT CLUSTER, K 053739 N 823754
71
SPACER RING SPEEDOMETER
74
BRACKET INSTRUMENT CLUSTER, K 053739 N 823754
77
SCREW STEP SWITCH AM 5X10
80
NUT TACHOMETER TO INSTRUMENT PANEL
80
NUT TACHOMETER TO INSTRUMENT PANEL
83
COVERING SPEEDOMETER, NO.8316INO.9051INO.7C52I I II I
86
GEAR INDICATOR INSTRUMENT PANEL
89
BRACKET GEAR DISPLAY
92
TAPPING SCREW SIDE REFLECTORS,K 057592
92
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
107
WARNING INDICATOR AIR CLEANER
110
BUZZER COOLING WATER TEMPERATURE CONTROL
110
BUZZER , Replaced By: A0005427123
110
BUZZER COOLING WATER TEMPERATURE CONTROL, Replaced By: A0015423823
113
POTENTIOMETER INSTRUMENT LIGHTING
116
TOOTHED WASHER ELECTRIC CABLE TO FUSE BOX
119
NUT POTENTIOMETER TO INSTRUMENT PANEL
122
KNOB INSTRUMENT LIGHTING
125
LIGHT SWITCH
125
LIGHT SWITCH , Replaced By: A0005453704
125
LIGHT SWITCH
131
NUT WIRE CABLE TO INSTRUMENT PANEL
132
SPACER WASHER , Replaced By: A2012671376
132
WASHER LIGHT SWITCH TO INSTRUMENT PANEL
134
HANDLE , Replaced By: A2025450081
134
KNOB LIGHT ROTARY SWITCH
137
SCREW ELECTRIC CABLE TO HORN
140
LOCK WASHER T-FITTING TO BRACKET
143
BOOT LIGHT ROTARY SWITCH
146
PLUG SOCKET INSTRUMENT PANEL
149
WASHER PLUG SOCKET TO INSTRUMENT PANEL
152
WASHER PLUG SOCKET TO INSTRUMENT PANEL
155
ELEMENT CIGAR LIGHTER
158
INCANDESCENT SPIRAL
999
DIAGRAM PAPER SET100 PIECES
